RM35X0E _58 Vehicle Interior _078375 INTERIOR PANELS / TRIM _0381232 SIDE PANEL A

INTERIOR PANELS / TRIM SIDE PANEL REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

Hide Display 1.REMOVE REAR SEAT ASSEMBLY LH

for Van:

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest:

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest:

for Commuter, 4-Passenger Seat:

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest:

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Hide Display 2.REMOVE REAR SEAT ASSEMBLY RH

for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt:

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest:

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201902,999999,_58,_078601,_0387368,RM100000001HB52,

Hide Display 73370E 3.REMOVE REAR SEAT OUTER BELT ASSEMBLY LH (for Van)

Hide Display 62512 4.REMOVE INSIDE QUARTER TRIM BOARD LH (for 4 Door)

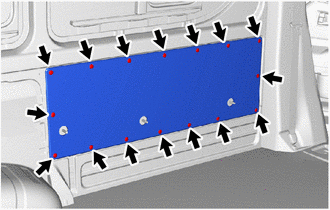

for Standard Roof:

Using a clip remover, remove the 16 clips and inside quarter trim board LH.

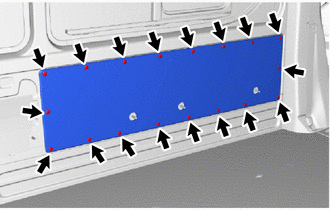

for High Roof:

Using a clip remover, remove the 18 clips and inside quarter trim board LH.

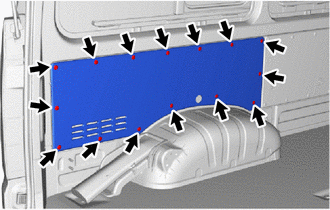

Hide Display 62632D 5.REMOVE REAR QUARTER TRIM BOARD LH

for Standard Roof:

Using a clip remover, remove the 15 clips and rear quarter trim board LH.

for High Roof:

Using a clip remover, remove the 19 clips and rear quarter trim board LH.

Hide Display 62631D 6.REMOVE REAR QUARTER TRIM BOARD RH
