RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0387530 REAR SEAT OUTER BELT ASSEMBLY(for Van) A

SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Van) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the rear seat outer belt assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

Use the same procedure for the RH and LH sides.

The following procedure is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION (w/ Pretensioner and Force Limiter)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201902,201906,_58,_079257,_0387732,RM100000001GZ4C,201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Pretensioner and Force Limiter)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201902,201906,_V1,_078672,_0387105,RM100000001GV7N,201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201902,201906,_V1,_078672,_0387106,RM100000001H6FR,201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 73370E 3.REMOVE REAR SEAT OUTER BELT ASSEMBLY LH

2.063,2.635 1.875,1.979 true 2.01,2.656 2.208,2.854 0.198,0.198 10 true *a

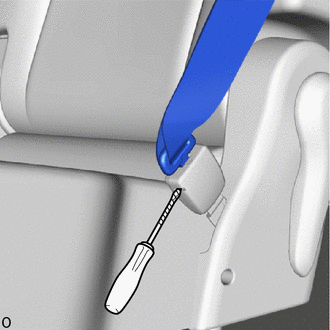

*a	Buckle Button
	Protective Tape

Using a thin-bladed screwdriver, push the buckle button to release the lock and disconnect the rear seat outer belt assembly LH.

HINT:: ·

Tape the thin-bladed screwdriver tip before use.

·

Use the same procedure for the RH side.

0,0 0,0 false

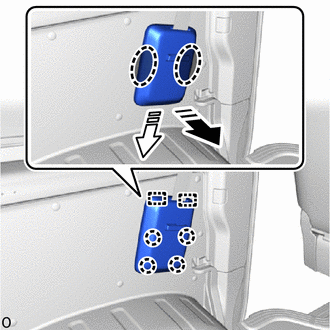

	Place Hands Here
	Remove in this Direction (1)
	Remove in this Direction (2)

Place your hands at the position and pull in the removal direction (1) shown in the illustration and detach the claw.

Pull in the removal direction (2) shown in the illustration and detach the guide and remove the cover.

0,0 0,0 false

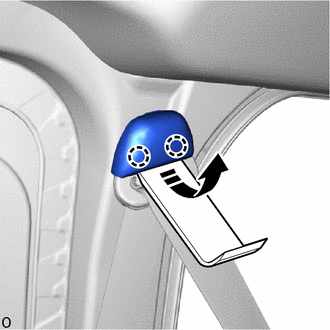

Open in this Direction

Using moulding remover D, detach the claw and open the cover as shown in the illustration.

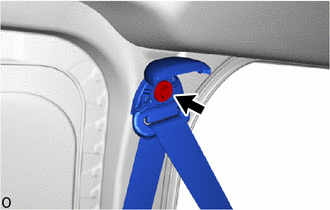

Loosen the bolt.

w/ Pretensioner and Force Limiter:

0.573,0.74 1.031,0.979 true 0.375,0.594 0.563,0.792 0.188,0.198 10 false *a

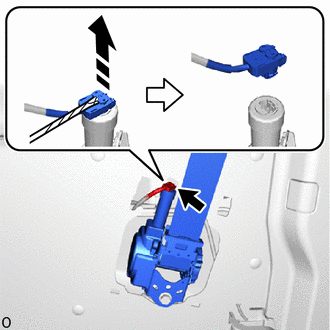

*a	Locking Button
	Release in this Direction
	Protective Tape

Using a thin-bladed screwdriver, pull out the locking button to release the lock to disconnect the pretensioner connector as shown in the illustration.

HINT:: Tape the thin-bladed screwdriver tip before use.

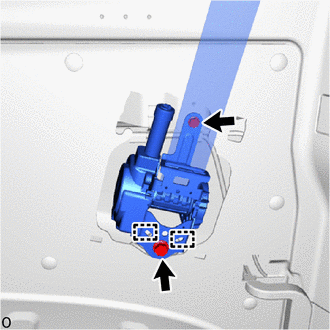

Remove the 2 bolts.

Detach the guide and remove the rear seat outer belt assembly LH.
