RM35X0E _54 Brake _078671 PARKING BRAKE _0381556 PARKING BRAKE LEVER A

PARKING BRAKE PARKING BRAKE LEVER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the parking brake lever sub-assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read precaution thoroughly before servicing.; ·

for Type A: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.REMOVE FRONT SEAT ASSEMBLY LH (for Separate Seat Type)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>REMOVAL201906,999999,_58,_078601,_0381328,RM100000001J8ZD,

Hide Display 3.REMOVE FRONT SEAT ASSEMBLY LH (Sliding Bench Seat Type)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REMOVAL201906,999999,_58,_078601,_0381329,RM100000001ITAH,

Hide Display 4.REMOVE FRONT SEAT ASSEMBLY RH (Fixed Bench Seat Type)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Fixed Bench Seat Type)>REMOVAL201902,999999,_58,_078601,_0381330,RM100000001FZKR,

Hide Display 58902C 5.REMOVE CONSOLE BOX MOUNTING BRACKET SUB-ASSEMBLY (for Separate Seat Type)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,999999,_58,_078375,_0380059,RM100000001IHPA,

Hide Display 58904B 6.REMOVE PARKING BRAKE HOLE COVER SUB-ASSEMBLY (except Separate Seat Type)

Click hereBrake>PARKING BRAKE>PARKING BRAKE SYSTEM (w/o Electric Parking Brake)>ADJUSTMENT201902,999999,_54,_078671,_0381555,RM100000001HHQ9_01_0020,

Hide Display 58997 7.REMOVE NO. 3 CONSOLE BOX MOUNTING BRACKET (except Separate Seat Type)

Click hereBrake>PARKING BRAKE>PARKING BRAKE SYSTEM (w/o Electric Parking Brake)>ADJUSTMENT201902,999999,_54,_078671,_0381555,RM100000001HHQ9_01_0026,

Hide Display 46441 8.LOOSEN NO. 1 WIRE ADJUSTING NUT

Release the parking brake lever lock and return it to its off position.

0.76,1.021 0.927,1.021 0.927,1.021 1.26,1.688 true 1.344,1.667 1.938,1.135 1.938,1.135 2.104,1.135 true 0.542,0.938 0.771,1.167 0.229,0.229 10 true *1 2.167,1.042 2.396,1.271 0.229,0.229 10 true *2

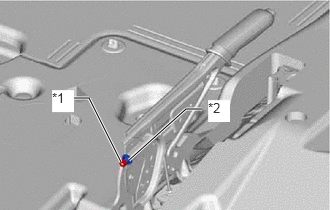

*1	Lock Nut
*2	No. 1 Wire Adjusting Nut

Remove the lock nut and loosen the No. 1 wire adjusting nut.

Hide Display 46201E 9.REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY

for LHD:

Disconnect the parking brake switch connector.

for RHD:

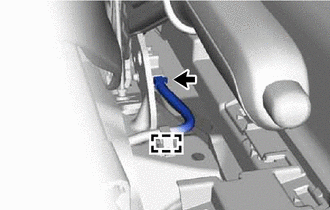

Disengage the clamp and disconnect the parking brake switch connector.

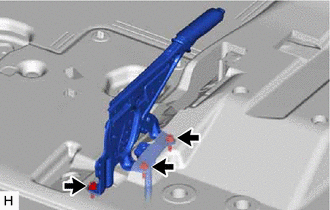

Remove the 3 bolts and parking brake lever sub-assembly.

HINT:: Remove the parking brake lever sub-assembly with the floor carpet folded back.

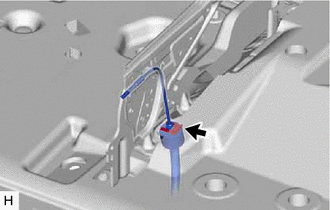

Remove the clip and separate the No. 1 parking brake cable assembly.

HINT:: Remove the clip with the floor carpet folded back.

2.635,2.583 2.969,2.583 2.969,2.583 2.969,2.75 true 2.885,2.76 3.052,2.927 0.167,0.167 10 true *a

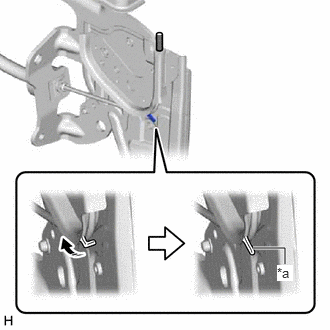

*a	Claw
	Lift up

Bend the claw so that the No. 1 parking brake cable assembly can be removed.

Remove the No. 1 parking brake cable assembly from the parking brake lever sub-assembly.
