HEATING / AIR CONDITIONING BLOWER MOTOR CONTROLLER(for Rear Cooler) INSTALLATION

PROCEDURE

Hide Display 87165C 1.INSTALL BLOWER MOTOR CONTROL

a.

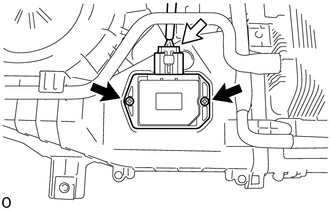

E415147C01

0,0 0,0 false

	Screw
	Connector

Install the blower motor control with the 2 screws.

b.

Connect the connector.

Hide Display 2.INSTALL ROOF HEADLINING ASSEMBLY

·

for Wagon:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,202310,_58,_078375,_0396474,RM100000001IHQ6,

·

for Semi-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>INSTALLATION201906,202208,_58,_078375,_0380060,RM100000001IXV3,202208,202310,_58,_078375,_0380060,RM1000000024I17,

·

for Full-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5,202208,202310,_58,_078375,_0381233,RM1000000024I1A,

Hide Display 3.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,202310,_V1,_078672,_0387105,RM100000001GV7O,

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,202310,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 4. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,202310,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 5.PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Front Seat Side Airbag)

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 6.CHECK SRS WARNING LIGHT (w/ Front Seat Side Airbag)

·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,
