RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0382366 SPOT LIGHT(for RH Side) A

LIGHTING (INT) SPOT LIGHT(for RH Side) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RHD and LHD vehicles.

·

The procedure listed below is for the LHD vehicles.

PROCEDURE

Hide Display 82214F 1.INSTALL NO. 3 ROOM LIGHT WIRE

HINT:: Perform this procedure only when replacing the No. 3 room light wire.

a.

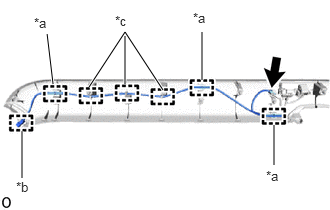

E404955C01

0.229,1.854 0.229,1.365 true 0.552,0.875 0.49,0.354 true 0.927,0.906 1.302,0.333 1.302,0.333 1.698,0.938 true 1.302,0.875 1.302,0.375 true 2.104,0.833 2.104,0.333 true 2.854,1.719 2.854,1.302 true 2.771,1.75 3,1.938 0.229,0.188 10 false *a 0.167,1.865 0.406,2.052 0.24,0.188 10 false *b 1.198,0.135 1.375,0.313 0.177,0.177 10 false *c 2.01,0.104 2.24,0.292 0.229,0.188 10 false *a 0.354,0.156 0.583,0.344 0.229,0.188 10 false *a

*a	Wire Harness Clamp
*b	Clamp
*c	Guide

Attach the guide, clamp and wire harness clamp to install the No. 3 room light wire.

b.

Connect the connector.

Hide Display 81360T 2.INSTALL SPOT LIGHT ASSEMBLY

a.

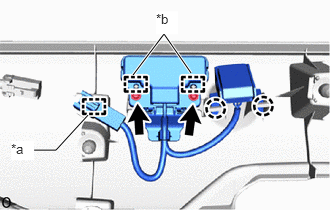

E404954C02

0.333,1.563 0.583,1.563 0.583,1.563 0.917,1.198 true 1.385,0.781 1.708,0.354 1.708,0.354 1.99,0.76 true 0.115,1.469 0.354,1.667 0.24,0.198 10 true *a 1.625,0.115 1.854,0.354 0.229,0.24 10 true *b

*a	Clamp
*b	Guide

Attach the guide to temporarily install the spot light assembly.

b.

Attach the clamp and claw.

c.

Install the 2 screws.

d.

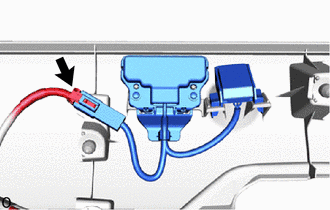

E404953

Connect the connector.

Hide Display 62450A 3.INSTALL REAR ROOF SIDE RAIL GARNISH ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0017,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0017,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0017,

Hide Display 62638A 4.INSTALL QUARTER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0062,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0062,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0062,

Hide Display 62471D 5.INSTALL REAR UPPER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0019,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0019,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0019,

Hide Display 72681E 6.INSTALL REAR SEAT HOOK (w/ Seat Hook)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0061,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0061,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0061,

Hide Display 62630L 7.INSTALL REAR QUARTER TRIM BOARD ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0002,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0002,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0002,

Hide Display 67935 8.INSTALL BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0010,202208,202310,_58,_078375,_0381233,RM1000000024I1A_01_0010,202310,999999,_58,_078375,_0381233,RM100000002EPY6_01_0010,

Hide Display 9.INSTALL REAR SEAT OUTER BELT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>LIGHTING (INT)>SPOT LIGHT (for LH Side)>INSTALLATION201906,999999,_58,_078381,_0382358,RM100000001IXML_02_0020,

Hide Display 10.INSTALL REAR SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Full-trim)>INSTALLATION201902,999999,_58,_078602,_0389937,RM100000001HCBG_06_0005,

Hide Display 11.INSTALL REAR SEAT ASSEMBLY

·

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>INSTALLATION201902,999999,_58,_078601,_0382458,RM100000001G55V,

·

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest)>INSTALLATION201906,999999,_58,_078601,_0398432,RM100000001IVYA,

·

for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>INSTALLATION201902,999999,_58,_078601,_0381332,RM100000001FZL4,

·

for Commuter, 4-Passenger Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>INSTALLATION201902,999999,_58,_078601,_0381333,RM100000001FZL9,

·

for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt)>INSTALLATION201902,999999,_58,_078601,_0387386,RM100000001HB4V,

·

for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>INSTALLATION201902,999999,_58,_078601,_0381334,RM100000001FZLE,

·

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>INSTALLATION201902,999999,_58,_078601,_0381335,RM100000001FZLJ,

·

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>INSTALLATION201902,999999,_58,_078601,_0387367,RM100000001HB50,

·

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>INSTALLATION201902,999999,_58,_078601,_0387368,RM100000001HB55,
