RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0382366 SPOT LIGHT(for RH Side) A

LIGHTING (INT) SPOT LIGHT(for RH Side) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RHD and LHD vehicles.

·

The procedure listed below is for the LHD vehicles.

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY

·

for Folding Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

·

for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201906,999999,_58,_078601,_0398432,RM100000001IVY7,

·

for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381332,RM100000001FZL1,

·

for Commuter, 4-Passenger Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 4-Passenger Seat)>REMOVAL201902,999999,_58,_078601,_0381333,RM100000001FZL6,

·

for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0387386,RM100000001HB4S,

·

for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381334,RM100000001FZLB,

·

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0381335,RM100000001FZLG,

·

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)>REMOVAL201902,999999,_58,_078601,_0387367,RM100000001HB4X,

·

for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201902,999999,_58,_078601,_0387368,RM100000001HB52,

Hide Display 2.REMOVE REAR SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Full-trim)>REMOVAL201902,999999,_58,_078602,_0389937,RM100000001HCBE_09_0004,

Hide Display 3.REMOVE REAR SEAT OUTER BELT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>LIGHTING (INT)>SPOT LIGHT (for LH Side)>REMOVAL201906,999999,_58,_078381,_0382358,RM100000001IXMJ_02_0020,

Hide Display 67935 4.REMOVE BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0027,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0027,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0027,

Hide Display 62630L 5.REMOVE REAR QUARTER TRIM BOARD ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0032,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0032,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0032,

Hide Display 72681E 6.REMOVE REAR SEAT HOOK (w/ Seat Hook)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0024,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0024,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0024,

Hide Display 62471D 7.REMOVE REAR UPPER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0026,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0026,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0026,

Hide Display 62638A 8.REMOVE QUARTER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0023,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0023,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0023,

Hide Display 62450A 9.REMOVE REAR ROOF SIDE RAIL GARNISH ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0035,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0035,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0035,

Hide Display 81360T 10.REMOVE SPOT LIGHT ASSEMBLY

a.

E404953

Disconnect the connector.

b.

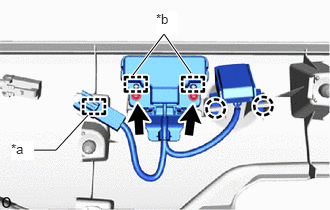

E404954C01

0.333,1.563 0.583,1.563 0.583,1.563 0.917,1.198 true 1.385,0.781 1.708,0.354 1.708,0.354 1.99,0.76 true 0.115,1.469 0.354,1.667 0.24,0.198 10 true *a 1.625,0.115 1.854,0.354 0.229,0.24 10 true *b

*a	Clamp
*b	Guide

Remove the 2 screws.

c.

Detach the clamp, claw and guide and remove the spot light assembly.

Hide Display 82214F 11.REMOVE NO. 3 ROOM LIGHT WIRE

HINT:: Perform this procedure only when replacing the No. 3 room light wire.

a.

E404955C01

0.229,1.854 0.229,1.365 true 0.552,0.875 0.49,0.354 true 0.927,0.906 1.302,0.333 1.302,0.333 1.698,0.938 true 1.302,0.875 1.302,0.375 true 2.104,0.833 2.104,0.333 true 2.854,1.719 2.854,1.302 true 2.771,1.75 3,1.938 0.229,0.188 10 false *a 0.167,1.865 0.406,2.052 0.24,0.188 10 false *b 1.198,0.135 1.375,0.313 0.177,0.177 10 false *c 2.01,0.104 2.24,0.292 0.229,0.188 10 false *a 0.354,0.156 0.583,0.344 0.229,0.188 10 false *a

*a	Wire Harness Clamp
*b	Clamp
*c	Guide

Disconnect the connector.

b.

Detach the wire harness clamp, clamp and guide and remove the No. 3 room light wire.
