SUPPLEMENTAL RESTRAINT SYSTEMS FRONT SEAT SIDE AIRBAG ASSEMBLY(for Bench Seat Type) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 89178C 1.INSTALL NO. 2 AIRBAG BRACKET

Install the No. 2 airbag bracket to the front seat airbag assembly RH with 2 new nuts.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

CAUTION:: Do not reuse the nut.

Hide Display 73910B 2.INSTALL FRONT SEAT AIRBAG ASSEMBLY RH

Install the front seat airbag assembly RH together with the No. 2 airbag bracket with a new nut.

CAUTION:: Do not reuse the nut.

Torque:: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

Connect the airbag wire harness to the seatback side:

NOTICE:: When disconnecting the airbag wire harness, take care not to damage the airbag wire harness.

Attach the wire harness clamp.

Connect the airbag wire harness to the seat cushion side:

NOTICE:: When disconnecting the airbag wire harness, take care not to damage the airbag wire harness.

Attach the wire harness clamp.

ii.

Attach the claw to connect the airbag connector.

Hide Display 71551A 3.INSTALL FRONT SEATBACK PAD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0011,

Hide Display 79158 4.INSTALL SEATBACK COVER PLATE RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0042,

Hide Display 71073A 5.INSTALL FRONT SEATBACK COVER SUB-ASSEMBLY RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0034,

Hide Display 71705F 6.INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY RH (for Wagon)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0047,

Hide Display 73178A 7.INSTALL SEAT BELT ANCHOR COVER CAP

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0035,

Hide Display 73373 8.INSTALL REAR SEAT SHOULDER BELT COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0013,

Hide Display 73240 9.INSTALL FRONT SEAT INNER BELT ASSEMBLY RH

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY (for Sliding Bench Seat Type)>INSTALLATION201906,999999,_58,_078602,_0387844,RM100000001IV6S_01_0103,

Hide Display 71811T 10.INSTALL FRONT SEAT CUSHION SHIELD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0025,

Hide Display 72525M 11.INSTALL RECLINING ADJUSTER RELEASE HANDLE RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0026,

Hide Display 72329D 12.INSTALL SEAT ADJUSTER BOLT COVER RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0027,

Hide Display 13.INSTALL FRONT SEAT ASSEMBLY RH

Install the front seat assembly RH.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381329,RM100000001ITAY,

0,0 0,0 false

Move in this Direction

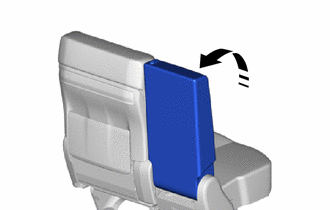

w/ Center Seatback Board:

Move the center seatback assembly as shown in the illustration.

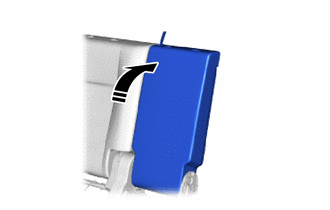

for RHD, w/ Center Seatback Board:

0,0 0,0 false

Move in this Direction

Move the center seatback assembly as shown in the illustration.

ii.

0,0 0,0 false

Fastening Tape

Attach the fastening tape.

Hide Display 14.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 15. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 16.PERFORM DIAGNOSTIC SYSTEM CHECK

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 17.CHECK SRS WARNING LIGHT

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 18.PERFORM SYSTEM INITIALIZATION AND CALIBRATION

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for Bench Seat Type)>REMOVAL201906,999999,_58,_079257,_0384941,RM100000001IW5J,
