LIGHTING (INT)  ROOM LIGHT SWITCH(for Front Side)  INSTALLATION

84170B 1.INSTALL NO. 2 ROOM LIGHT SWITCH ASSEMBLY (for Wagon, w/ Rear Sunshade)

a.

0,0 0,0 false

Install in this Direction

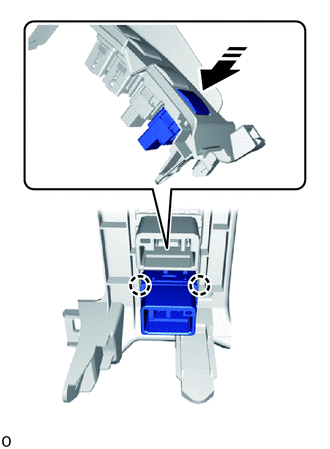

Attach the claw to install the No. 2 room light switch assembly as shown in the illustration.

84172 2.INSTALL ROOM LIGHT SWITCH

a.

0,0 0,0 false

Install in this Direction

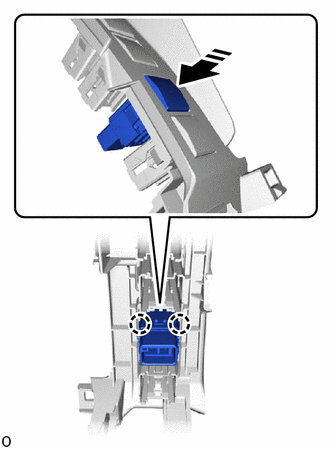

Attach the claw to install the room light switch as shown in the illustration.

55447C 3.INSTALL NO. 2 SWITCH HOLE BASE

55670 4.INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

55410C 5.INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

55413D 6.INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (for Full-trim)

55320 7.INSTALL LOWER NO. 2 INSTRUMENT PANEL ASSEMBLY (for Full-trim)

55434B 8.INSTALL CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Full-trim)

55646 9.INSTALL NO. 3 INSTRUMENT PANEL UNDER COVER (for Full-trim)

58534E 10.INSTALL CENTER FLOOR CARPET COVER LH (for Full-trim)

58533C 11.INSTALL CENTER FLOOR CARPET COVER RH (for Full-trim)

12.INSTALL FRONT CONSOLE BOX (for Full-trim, w/ Console Tray)

73900 13.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (for Full-trim, w/ Knee Airbag)

55313 14.INSTALL LOWER INSTRUMENT PANEL LH (for Full-trim, w/o Knee Airbag)

55445B 15.INSTALL INSTRUMENT PANEL FINISH PLATE (for Full-trim, w/o Knee Airbag)

55433B 16.INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL (for Full-trim)

55432D 17.INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL (for Full-trim)

77306 18.INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Full-trim)

53601 19.INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (for Full-trim)

55641 20.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER (for Full-trim)

55318C 21.INSTALL INSTRUMENT SIDE PANEL LH (for Full-trim)

62112 22.INSTALL COWL SIDE TRIM BOARD LH (for Full-trim)

67914B 23.INSTALL FRONT DOOR SCUFF PLATE LH (for Full-trim)

67912A 24.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH (for Full-trim)

55438A 25.INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL RETAINER (for Full-trim)

55312 26.INSTALL LOWER INSTRUMENT PANEL (for Full-trim)

55642 27.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER (for Full-trim)

55317A 28.INSTALL INSTRUMENT SIDE PANEL RH (for Full-trim)

55012A 29.INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for Full-trim)

55632B 30.INSTALL NO. 2 INSTRUMENT PANEL UNDER TRAY SUPPORT (for Full-trim)

62111C 31.INSTALL COWL SIDE TRIM BOARD RH (for Full-trim)

67913B 32.INSTALL FRONT DOOR SCUFF PLATE RH (for Full-trim)

67911B 33.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE RH (for Full-trim)

55414A 34.INSTALL INSTRUMENT CLUSTER FINISH PANEL END (for Semi-trim)

55900 35.INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

55405B 36.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)

35970F 37.INSTALL POSITION INDICATOR HOUSING ASSEMBLY (for Automatic Transmission)

58840Q 38.INSTALL SHIFTING HOLE COVER ASSEMBLY (for Manual Transmission)

33504F 39.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

33622 40.CONNECT NO. 1 SHIFT LEVER KNOB COVER (for Automatic Transmission)

55404E 41.INSTALL UPPER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

55044C 42.INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

55011A 43.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

55631A 44.INSTALL NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER

45.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Full-trim, w/ Knee Airbag)

46. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (for Full-trim, w/ Knee Airbag)

47.PERFORM DIAGNOSTIC SYSTEM CHECK (for Full-trim, w/ Knee Airbag)

48.CHECK SRS WARNING LIGHT (for Full-trim, w/ Knee Airbag)

49.PERFORM SYSTEM INITIALIZATION AND CALIBRATION (for Full-trim, w/ Knee Airbag)
