LIGHTING (INT) ROOM LIGHT SWITCH(for Front Side) REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during room light switch removal/installation are shown below.
| Replacement Part or Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) battery terminal | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | (201906,999999,_56,_079315,_0396274,RM100000001IGR3,)
|
- HINT:
- ·
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.
-Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link *: w/ Stop and start system
Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). ( 201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system
-Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures not Performed Necessary Procedures Link Power slide door system Fully close the slide door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the slide door is closed.
( 201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
·Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
PROCEDURE
1. PRECAUTION (for Full-trim, w/ Knee Airbag)
- CAUTION:
-
-
Be sure to read Precaution thoroughly before servicing.
- ··
- NOTICE:
-
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Full-trim, w/ Knee Airbag)
- CAUTION:
-
- ·
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
·If the airbag deploys for any reason, it may cause a serious accident.
55631A
3.REMOVE NO. 1 INSTRUMENT PANEL UNDER TRAY STOPPER
55011A
4.REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
55044C
5.REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
55404E
6.REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
33622
7.DISCONNECT NO. 1 SHIFT LEVER KNOB COVER (for Automatic Transmission)
33504F
8.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
for Manual Transmission:
for Automatic Transmission:
58840Q
9.REMOVE SHIFTING HOLE COVER ASSEMBLY (for Manual Transmission)
35970F
10.REMOVE POSITION INDICATOR HOUSING ASSEMBLY (for Automatic Transmission)
55405B
11.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)
55900
12.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)
55414A
13.REMOVE INSTRUMENT CLUSTER FINISH PANEL END (for Semi-trim)
67912A
14.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH (for Full-trim)
67914B
15.REMOVE FRONT DOOR SCUFF PLATE LH (for Full-trim)
62112
16.REMOVE COWL SIDE TRIM BOARD LH (for Full-trim)
55318C
17.REMOVE INSTRUMENT SIDE PANEL LH (for Full-trim)
55641
18.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER (for Full-trim)
53601
19.REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (for Full-trim)
77306
20.REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY (for Full-trim)
55432D
21.REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL (for Full-trim)
55433B
22.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL (for Full-trim)
55445B
23.REMOVE INSTRUMENT PANEL FINISH PLATE (for Full-trim, w/o Knee Airbag)
55313
24.REMOVE LOWER INSTRUMENT PANEL LH (for Full-trim, w/o Knee Airbag)
73900
25.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (for Full-trim, w/ Knee Airbag)
67911B
26.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE RH (for Full-trim)
- HINT:
-
Use the same procedure described for the LH side.
67913B
27.REMOVE FRONT DOOR SCUFF PLATE RH (for Full-trim)
- HINT:
-
Use the same procedure described for the LH side.
62111C
28.REMOVE COWL SIDE TRIM BOARD RH (for Full-trim)
55632B
29.REMOVE NO. 2 INSTRUMENT PANEL UNDER TRAY SUPPORT (for Full-trim)
55012A
30.REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for Full-trim)
55317A
31.REMOVE INSTRUMENT SIDE PANEL RH (for Full-trim)
55642
32.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER (for Full-trim)
55312
33.REMOVE LOWER INSTRUMENT PANEL (for Full-trim)
55438A
34.REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL RETAINER (for Full-trim)
35.REMOVE FRONT CONSOLE BOX (for Full-trim, w/ Console Tray)
58533C
36.REMOVE CENTER FLOOR CARPET COVER RH (for Full-trim)
58534E
37.REMOVE CENTER FLOOR CARPET COVER LH (for Full-trim)
55646
38.REMOVE NO. 3 INSTRUMENT PANEL UNDER COVER (for Full-trim)
55434B
39.REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Full-trim)
55320
40.REMOVE LOWER NO. 2 INSTRUMENT PANEL ASSEMBLY (for Full-trim)
55413D
41.REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (for Full-trim)
55410C
42.REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
55670
43.REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
55447C
44.REMOVE NO. 2 SWITCH HOLE BASE
84172

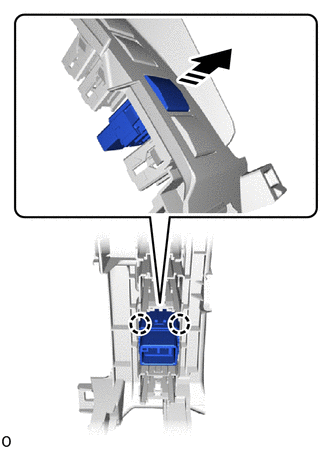

45.REMOVE ROOM LIGHT SWITCH
|
Remove in this Direction |
Detach the claw and remove the room light switch as shown in the illustration.
84170B

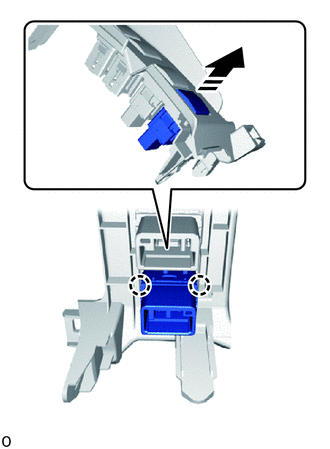

46.REMOVE NO. 2 ROOM LIGHT SWITCH ASSEMBLY (for Wagon, w/ Rear Sunshade)
|
|
Remove in this Direction |
Detach the claw and remove the No. 2 room light switch assembly as shown in the illustration.
