RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389010 FRONT CENTER SEAT OUTER BELT(for Sliding Bench Seat Type) A

SEAT BELT FRONT CENTER SEAT OUTER BELT(for Sliding Bench Seat Type) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 73120 1.INSPECT FRONT SEAT 3 POINT TYPE BELT ASSEMBLY LH

Click hereVehicle Interior>SEAT BELT>FRONT CENTER SEAT OUTER BELT (for Sliding Bench Seat Type)>INSPECTION201902,999999,_58,_078602,_0389010,RM100000001H6EA_02_0001,

Hide Display 73120 2.INSTALL FRONT SEAT 3 POINT TYPE BELT ASSEMBLY LH

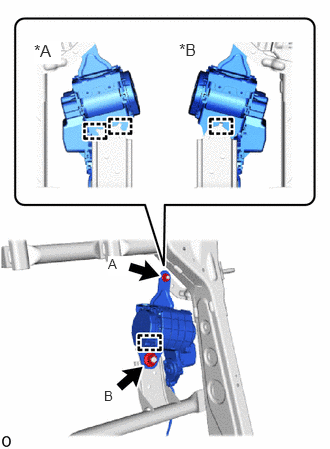

0.354,0.427 0.635,0.667 0.281,0.24 12 true *A 1.865,0.417 2.198,0.708 0.333,0.292 12 false *B 1.125,2.667 1.333,2.875 0.208,0.208 10 true A 1.083,4.042 1.396,4.198 0.313,0.156 10 false B

*A	for LHD
*B	for RHD

Attach the guide.

Install the retractor of the front seat 3 point type belt assembly LH with the 2 nuts.

Torque:: Nut A : 12.5 N*m (127 kgf*cm, 9 ft.*lbf); Nut B : 42 N*m (428 kgf*cm, 31 ft.*lbf)

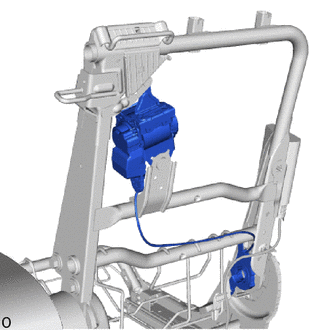

Pass the sensor cable as shown in the illustration.

Temporarily install the reclining sensor of the front seat 3 point type belt assembly LH with the 3 nuts.

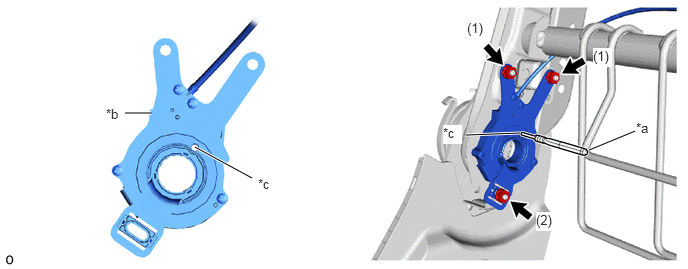

6.135,1.563 6.615,1.365 true 4.854,1.406 5.417,1.385 true 2.625,1.854 2.031,1.531 true 1.26,1.177 1.583,1.177 true 4.865,0.208 5.063,0.406 0.198,0.198 10 true (1) 6.177,0.5 6.375,0.698 0.198,0.198 10 true (1) 5.583,2.208 5.781,2.406 0.198,0.198 10 true (2) 6.625,1.25 6.823,1.448 0.198,0.198 10 true *a 4.615,1.302 4.813,1.5 0.198,0.198 10 true *c 2.688,1.833 2.885,2.031 0.198,0.198 10 true *c 1.104,1.104 1.302,1.302 0.198,0.198 10 true *b

*a	Pin Punch 3	*b	Reclining Sensor
*c	Zero Point Alignment Hole	-	-

Insert pin punch 3 into the zero point alignment hole of the front seat 3 point type belt assembly LH.

Tighten the 3 nuts in the order shown in the illustration.

Torque:: 3.5 N*m (36 kgf*cm, 31 in.*lbf)

Pull out pin punch 3.

Hide Display 71H75B 3.INSTALL RH SEATBACK FRAME RECLINING ADJUSTER INSIDE COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0008,

Hide Display 74810L 4.INSTALL FRONT PROTECTOR ASSEMBLY RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0010,

Hide Display 71551A 5.INSTALL FRONT SEATBACK PAD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0011,

Hide Display 79158 6.INSTALL SEATBACK COVER PLATE RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0042,

Hide Display 71073A 7.INSTALL FRONT SEATBACK COVER SUB-ASSEMBLY RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0034,

Hide Display 71705F 8.INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY RH (for Wagon)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0047,

Hide Display 73178A 9.INSTALL SEAT BELT ANCHOR COVER CAP

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0035,

Hide Display 73373 10.INSTALL REAR SEAT SHOULDER BELT COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0013,

Hide Display 73120 11.INSTALL FRONT SEAT 3 POINT TYPE BELT ASSEMBLY LH (SEAT ANCHOR)

0.563,1.875 1.063,1.333 1.063,1.333 1.542,1.844 true 0.948,1.052 1.167,1.26 0.219,0.208 10 true *a

*a	Hole
	Band

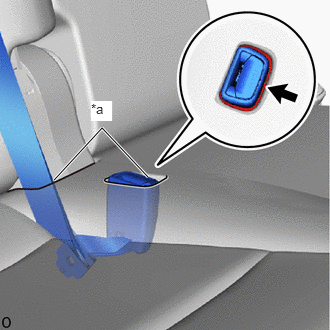

Pass the seat anchor of the front seat 3 point type belt assembly LH and front seat inner belt assembly RH through the hole of the front seat cushion assembly.

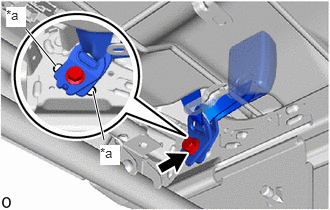

1.083,1.458 0.969,0.948 true 0.583,0.688 0.271,0.302 true 1.042,1.51 1.25,1.719 0.208,0.208 10 true *a 0.063,0.073 0.271,0.281 0.208,0.208 10 true *a

*a	Protruding Part

Install the seat anchor of the front seat 3 point type belt assembly LH and front seat inner belt assembly RH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the front seat inner belt assembly RH to overlap the protruding part.

Check that the ELR locks.

With the front seat 3 point type belt assembly LH installed to the vehicle, check that the belt locks when it is pulled out quickly.

for Van, w/ Seat Belt Warning System:

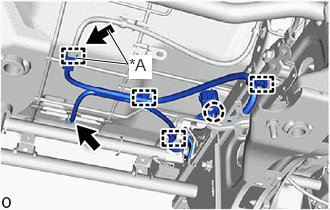

0.781,0.604 1.333,0.667 1.333,0.667 1.125,0.313 true 1.344,0.573 1.583,0.823 0.24,0.25 12 true *A

*A	w/ Center Seat Occupant Detection Sensor

Attach the clamp and claw.

ii.

Connect the connector.

w/ Center Seat Occupant Detection Sensor:

Connect the connector.

for Wagon:

Attach the claw and clamp.

ii.

Connect the connector.

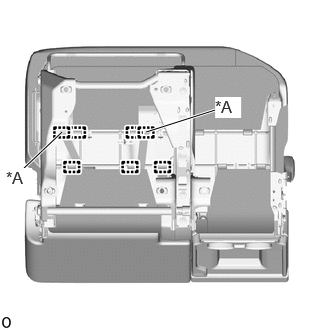

1.521,1.375 2.24,1.146 true 0.25,1.75 0.646,1.375 true 2.24,1.01 2.51,1.229 0.271,0.219 12 true *A 0.063,1.75 0.333,1.969 0.271,0.219 12 true *A

for Wagon

Attach the hook.

Hide Display 71811T 12.INSTALL FRONT SEAT CUSHION SHIELD RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0025,

Hide Display 72525M 13.INSTALL RECLINING ADJUSTER RELEASE HANDLE RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0026,

Hide Display 72329D 14.INSTALL SEAT ADJUSTER BOLT COVER RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>REASSEMBLY201906,999999,_58,_078601,_0381329,RM100000001ITAW_02_0027,

Hide Display 15.INSTALL FRONT SEAT ASSEMBLY RH

Install the front seat assembly RH.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381329,RM100000001ITAY,

0,0 0,0 false

Move in this Direction

w/ Seatback Board:

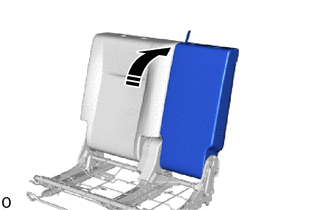

Move the center seatback assembly as shown in the illustration.

for RHD, w/o Seatback Board:

0,0 0,0 false

Move in this Direction

Move the center seatback assembly as shown in the illustration.

ii.

0,0 0,0 false

Fastening Tape

Attach the fastening tape.

Hide Display 16.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 17. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 18. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 19.CHECK SRS WARNING LIGHT (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 20.PERFORM SYSTEM INITIALIZATION AND CALIBRATION (w/ Front Seat Side Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for Bench Seat Type)>REMOVAL201906,999999,_58,_079257,_0384941,RM100000001IW5J,

Hide Display 21.INSPECT SEAT BELT WARNING SYSTEM (w/ Seat Belt Warning System)

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,
