RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0387844 FRONT SEAT INNER BELT ASSEMBLY(for Sliding Bench Seat Type) A

SEAT BELT FRONT SEAT INNER BELT ASSEMBLY(for Sliding Bench Seat Type) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 73240 1.INSTALL FRONT SEAT INNER BELT ASSEMBLY RH

0.563,1.875 1.063,1.333 1.063,1.333 1.542,1.844 true 0.948,1.052 1.167,1.26 0.219,0.208 10 true *a

*a	Hole
	Band

Pass the front seat inner belt assembly RH and seat anchor of the front seat 3 point type belt assembly LH through the hole of the front seat cushion assembly.

Attach the band.

1.083,1.458 0.969,0.948 true 0.583,0.688 0.271,0.302 true 1.042,1.51 1.25,1.719 0.208,0.208 10 true *a 0.063,0.073 0.271,0.281 0.208,0.208 10 true *a

*a	Protruding Part

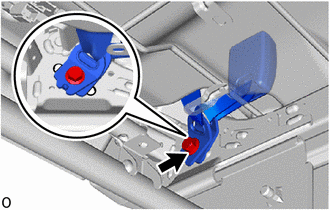

Install the front seat inner belt assembly RH and seat anchor of the front seat 3 point type belt assembly LH with the bolt.

Torque:: 42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:: Do not allow the anchor part of the front seat inner belt assembly RH to overlap the protruding part.

for Van, w/ Seat Belt Warning System:

0.781,0.594 1.365,0.688 1.365,0.688 1.104,0.323 true 1.375,0.573 1.635,0.802 0.26,0.229 12 true *A

*A	w/ Center Seat Occupant Detection Sensor

Attach the clamp and claw.

ii.

Connect the connector.

w/ Center Seat Occupant Detection Sensor:

Connect the connector.

for Wagon:

Attach the claw and clamp.

ii.

Connect the connector.

1.521,1.375 2.24,1.146 true 0.25,1.75 0.646,1.375 true 2.24,1.01 2.51,1.229 0.271,0.219 12 true *A 0.063,1.75 0.333,1.969 0.271,0.219 12 true *A

for Wagon

Attach the hook.

Hide Display 2.INSTALL FRONT SEAT ASSEMBLY RH

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381329,RM100000001ITAY,

Hide Display 3.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 4. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 5. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 6.CHECK SRS WARNING LIGHT (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 7.PERFORM SYSTEM INITIALIZATION AND CALIBRATION (w/ Front Seat Side Airbag)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT SEAT SIDE AIRBAG ASSEMBLY (for Bench Seat Type)>REMOVAL201906,999999,_58,_079257,_0384941,RM100000001IW5J,

Hide Display 8.INSPECT SEAT BELT WARNING SYSTEM (w/ Center Seat Occupant Detection Sensor)

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,
