RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389113 OCCUPANT DETECTION SENSOR(for Sliding Bench Seat Type) A

SEAT BELT  OCCUPANT DETECTION SENSOR(for Sliding Bench Seat Type)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 71511A 1.INSTALL FRONT SEAT CUSHION PAD RH (OCCUPANT DETECTION SENSOR)

HINT:

When installing the seat cover, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

for Van:

i.

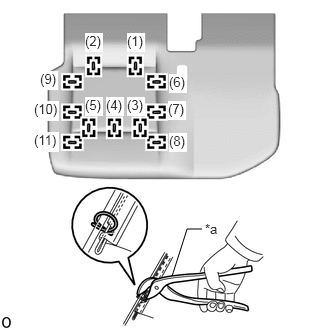

B535145C01
1.792,2.875 1.948,2.385 1.948,2.385 2.104,2.385 false 2.135,2.302 2.448,2.458 0.313,0.156 10 false *a 1.323,1.01 1.51,1.208 0.188,0.198 10 true (3) 1.323,0.344 1.51,0.542 0.188,0.198 10 true (1) 0.885,0.344 1.073,0.542 0.188,0.198 10 true (2) 1.104,1.01 1.292,1.208 0.188,0.198 10 true (4) 0.885,1.01 1.073,1.208 0.188,0.198 10 true (5) 1.76,0.771 1.948,0.969 0.188,0.198 10 true (6) 1.75,1.052 1.938,1.25 0.188,0.198 10 true (7) 1.76,1.385 1.948,1.583 0.188,0.198 10 true (8) 0.417,0.74 0.604,0.938 0.188,0.198 10 true (9) 0.354,1.052 0.615,1.26 0.26,0.208 10 true (10) 0.354,1.375 0.615,1.583 0.26,0.208 10 true (11)
*a Hog Ring Pliers


Using hog ring pliers, install the front seat cushion pad RH (occupant detection sensor) with 11 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the front seat cushion cover sub-assembly RH.


·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the front seat cushion cover sub-assembly RH.





b.

for Wagon:

i.

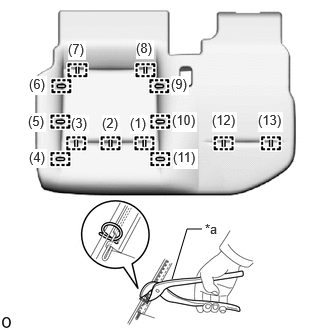

B560488C01
1.792,2.906 1.948,2.385 1.948,2.385 2.104,2.385 false 2.135,2.302 2.448,2.458 0.313,0.156 10 false *a 0.708,0.427 0.896,0.625 0.188,0.198 10 true (7) 1.417,0.417 1.604,0.615 0.188,0.198 10 true (8) 1.354,1.198 1.542,1.396 0.188,0.198 10 true (1) 1.063,1.198 1.25,1.396 0.188,0.198 10 true (2) 0.74,1.198 0.927,1.396 0.188,0.198 10 true (3) 0.292,1.177 0.479,1.375 0.188,0.198 10 true (5) 0.302,1.552 0.49,1.75 0.188,0.198 10 true (4) 0.302,0.792 0.49,0.99 0.188,0.198 10 true (6) 1.792,1.167 2.052,1.375 0.26,0.208 10 true (10) 1.802,1.552 2.063,1.76 0.26,0.208 10 true (11) 2.208,1.167 2.469,1.375 0.26,0.208 10 true (12) 2.688,1.167 2.948,1.375 0.26,0.208 10 true (13) 1.781,0.792 1.969,0.99 0.188,0.198 10 true (9)
*a Hog Ring Pliers


for Type A:

Using hog ring pliers, install the front seat cushion pad RH (occupant detection sensor) with 13 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to dirty or damage the front seat cushion cover sub-assembly RH.


·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the front seat cushion cover sub-assembly RH.




ii.

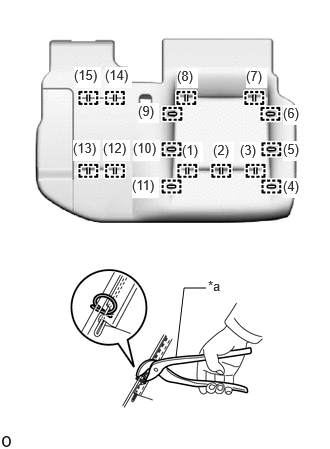

B560472C01
1.833,3.719 1.917,3 1.917,3 2.146,3 false 2.167,2.896 2.479,3.052 0.313,0.156 10 false *a 1.896,1.479 2.115,1.688 0.219,0.208 10 true (1) 2.219,1.479 2.438,1.688 0.219,0.208 10 true (2) 2.5,1.479 2.719,1.688 0.219,0.208 10 true (3) 2.948,1.854 3.167,2.063 0.219,0.208 10 true (4) 2.948,1.469 3.167,1.677 0.219,0.208 10 true (5) 2.948,1.094 3.167,1.302 0.219,0.208 10 true (6) 2.563,0.708 2.781,0.917 0.219,0.208 10 true (7) 1.844,0.708 2.063,0.917 0.219,0.208 10 true (8) 1.438,1.073 1.656,1.281 0.219,0.208 10 true (9) 1.385,1.458 1.667,1.677 0.281,0.219 10 true (10) 1.375,1.844 1.656,2.063 0.281,0.219 10 true (11) 1.073,1.458 1.354,1.677 0.281,0.219 10 true (12) 0.76,1.458 1.042,1.677 0.281,0.219 10 true (13) 1.094,0.698 1.375,0.917 0.281,0.219 10 true (14) 0.771,0.698 1.052,0.917 0.281,0.219 10 true (15)
*a Hog Ring Pliers


for Type B:

Using hog ring pliers, install the front seat cushion pad LH (occupant detection sensor) with 15 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to dirty or damage the front seat cushion cover sub-assembly LH.


·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the front seat cushion cover sub-assembly LH.




iii.

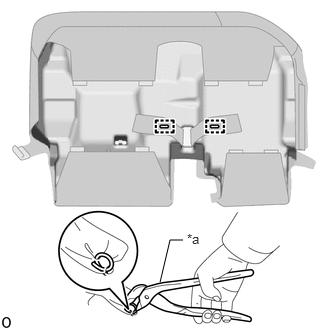

B544975C01
1.667,2.938 1.771,2.5 1.771,2.5 1.906,2.5 false 1.948,2.406 2.26,2.563 0.313,0.156 10 false *a
*a Hog Ring Pliers


Using hog ring pliers, install the 2 new hog rings.

NOTICE:
·

Be careful not to dirty or damage the front seat cushion cover sub-assembly RH.


·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the front seat cushion cover sub-assembly RH.





Hide 2.INSTALL FRONT SEAT CUSHION COVER WITH PAD

a.

Set the front seat cushion cover with pad.


b.

w/o Center Seat Occupant Detection Sensor:

i.

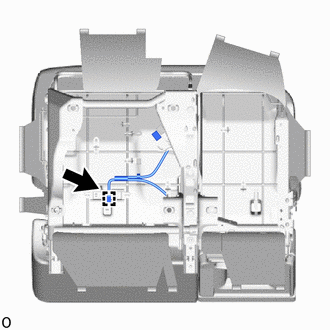

B548424

Attach the clamp.


ii.

Connect the connector.



c.

w/ Center Seat Occupant Detection Sensor:

i.

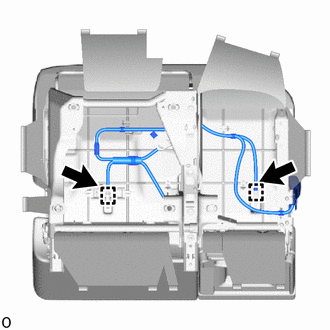

B548425

Attach the clamp.


ii.

Connect the 2 connectors.



d.

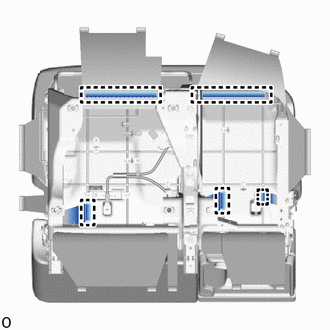

B548422

Attach the hook.


e.

Attach the hook and install the front seat cushion cover with pad.

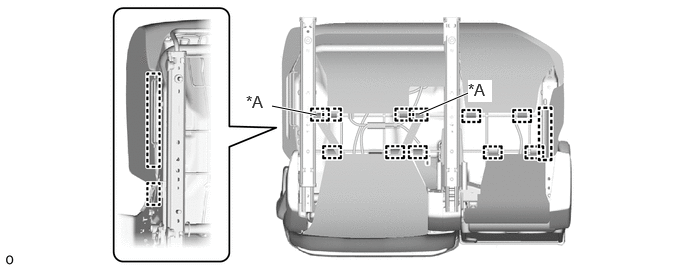

B560489C03
2.833,1.104 3.302,1.198 true 4.365,1.188 4.875,0.969 true 2.563,0.958 2.813,1.198 0.25,0.24 12 false *A 4.875,0.833 5.125,1.063 0.25,0.229 12 true *A
*A for Wagon - -



Hide 9. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
