RM35X0E _59 Vehicle Exterior _078503 DOOR / HATCH _0387486 POWER SLIDE DOOR MOTOR A

DOOR / HATCH POWER SLIDE DOOR MOTOR INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

Use the same procedure described for the RH side.

PROCEDURE

Hide Display 85005A 1.INSTALL SLIDE DOOR MOTOR UNIT RH

0.458,0.115 0.677,0.323 0.219,0.208 10 true (2) 2.146,0.396 2.365,0.604 0.219,0.208 10 true (1)

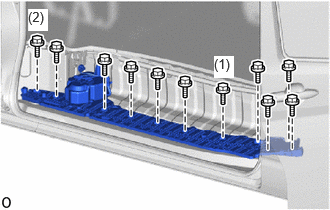

for Standard Roof:

Install the slide door motor unit RH with the 9 bolts in the order shown in the illustration.

Torque:: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

0.292,0.094 0.5,0.323 0.208,0.229 10 true (2) 2.229,0.583 2.438,0.813 0.208,0.229 10 true (1)

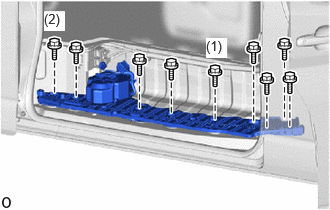

for High Roof:

Install the slide door motor unit RH with the 11 bolts in the order shown in the illustration.

Torque:: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

0,0 0,0 false

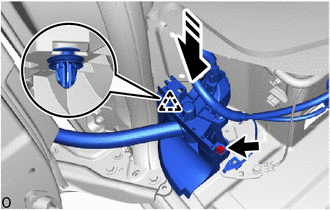

Install in this Direction

Install the wire harness protector.

Attach the clip as shown in the illustration.

ii.

Install the wire harness protector with the bolt.

Torque:: 13 N*m (133 kgf*cm, 10 ft.*lbf)

Connect the 4 connectors.

Hide Display 51078D 2.INSTALL SIDE STEP BRACKET SUB-ASSEMBLY RH (for Standard Roof)

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>INSTALLATION201902,999999,_59,_078503,_0385653,RM100000001GNFP_02_0006,

Hide Display 51078D 3.INSTALL SIDE STEP BRACKET SUB-ASSEMBLY RH (for High Roof)

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>INSTALLATION201902,999999,_59,_078503,_0385653,RM100000001GNFP_02_0005,

Hide Display 51079F 4.INSTALL SIDE STEP BRACKET SUB-ASSEMBLY LH (w/ Hand Rail)

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>INSTALLATION201902,999999,_59,_078503,_0385653,RM100000001GNFP_02_0004,

Hide Display 5.INSTALL SLIDE DOOR ASSEMBLY RH

2.365,3.729 2.083,3.375 true 2.365,3.729 2.604,3.927 0.24,0.198 10 true *a

Cutout

Rotate the roller part of the slide door lower roller arm sub-assembly RH counterclockwise to connect the slide door lower roller arm sub-assembly RH to the cutout of the slide door motor unit RH.

NOTICE:: ·

Support the lower portion of the slide door RH when connecting the slide door lower roller arm sub-assembly RH, as the slide door RH becomes unstable.

·

Work with 2 or more persons when connecting the slide door RH in order to prevent deformation and damage.

Move the slide door RH so that the 2 bolts are visible as shown in the illustration.

Install the lower slide door roller arm RH to the slide door motor unit RH with the 2 bolts.

Torque:: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

Hide Display 68394A 6.INSTALL SLIDE DOOR LOWER RAIL PLATE RH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (except Wagon)>INSTALLATION201902,999999,_59,_078503,_0385653,RM100000001GNFP_02_0007,

Hide Display 67917C 7.INSTALL REAR DOOR SCUFF PLATE RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0035,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0035,

Hide Display 74708 8.INSTALL NO. 2 HAND GRIP FRAME SUB-ASSEMBLY (for RHD, w/ Hand Rail)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0029,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0029,

Hide Display 74733 9.INSTALL NO. 1 HAND GRIP COVER (for RHD, w/ Hand Rail)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0030,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0030,

Hide Display 10.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Rear Curtain Shield Airbag)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 11. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Rear Curtain Shield Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 12.INSPECT SRS WARNING LIGHT (w/ Rear Curtain Shield Airbag)

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 13. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Rear Curtain Shield Airbag)

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 14. INITIALIZE POWER SLIDE DOOR SYSTEM

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>INITIALIZATION201902,999999,_59,_078503,_0381017,RM100000001FWXM,

Hide Display 15. CHECK POWER SLIDE DOOR SYSTEM

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>OPERATION CHECK201902,999999,_59,_078503,_0381017,RM100000001FWXK,
