DOOR / HATCH  FUEL LID LOCK CONTROL CABLE ASSEMBLY(for LHD)  INSTALLATION

Attach the clip and install the fuel filler opening lid lock cover.

Install the fuel filler opening lid lock sub-assembly with the nut.

Torque:

8.5 N*m (87 kgf*cm, 75 in.*lbf)

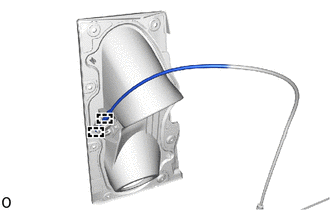

Attach the clamp and install the fuel lid lock control cable sub-assembly to the fuel filler opening lid lock sub-assembly.

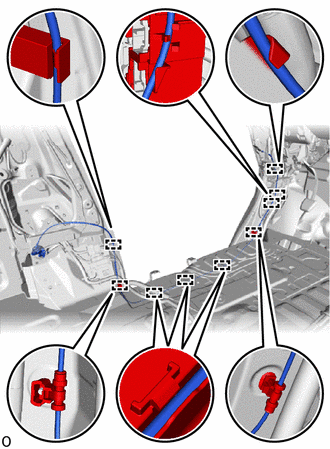

Attach the claw and install the 7 grommets.

0,0 0,0 false

Install in this Direction

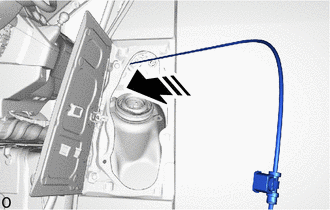

Insert the fuel lid lock control cable sub-assembly into the vehicle from the service hole on the vehicle side as shown in the illustration.

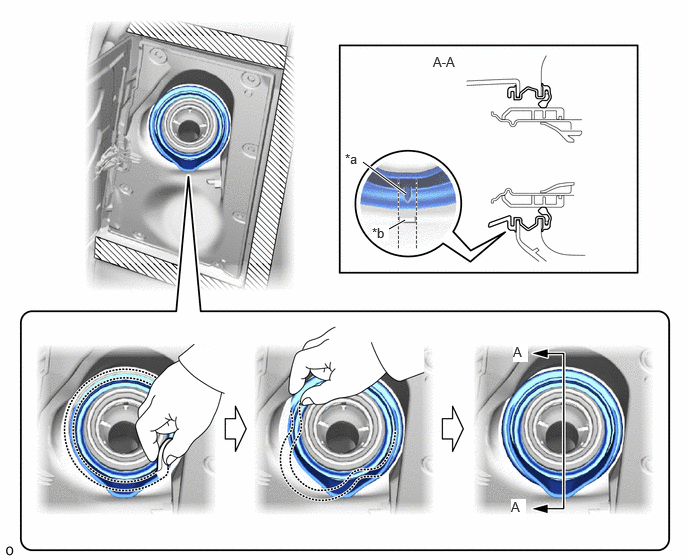

While pulling out the fuel tank filler pipe shield assembly, install the No. 3 fuel tank filler pipe shield as shown in the illustration.

3.781,1.688 4.229,2.021 true 4.052,2.385 4.219,2.292 true 4.51,0.563 5.063,0.844 0.552,0.281 10 false A-A 5.344,3.583 5.5,3.771 0.156,0.188 10 true A 5.323,5.198 5.479,5.385 0.156,0.188 10 true A 3.594,1.573 3.906,1.771 0.313,0.198 10 false *a 3.875,2.344 4.052,2.51 0.177,0.167 10 true *b

*a

Protrusion

*b

Rib

HINT:

Align the protrusion of the fuel tank filler pipe shield assembly with the body rib and install the fuel tank filler pipe shield assembly as shown in the illustration.

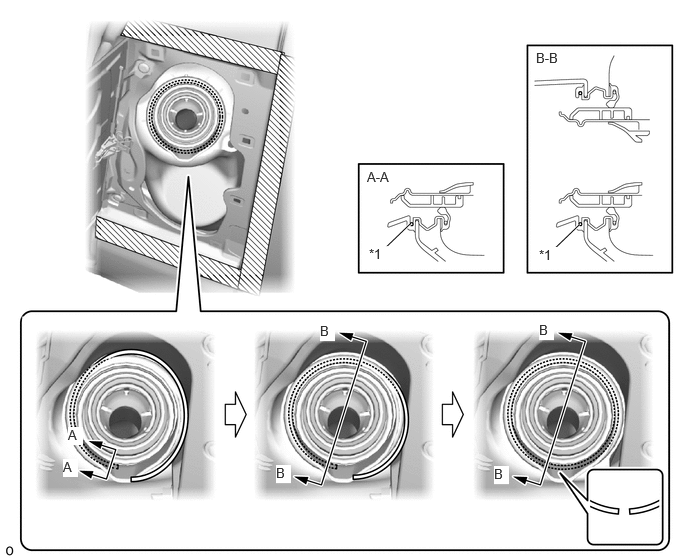

Install the fuel inlet box ring to the fuel tank filler pipe shield assembly as shown in the illustration.

3.979,2.615 4.271,2.333 true 5.74,2.625 6.031,2.344 true 3.823,1.76 4.458,2.125 0.635,0.365 10 false A-A 5.583,0.521 6.219,0.885 0.635,0.365 10 false B-B 0.708,4.448 0.865,4.635 0.156,0.188 10 true A 0.656,4.781 0.813,4.969 0.156,0.188 10 true A 3.333,3.365 3.49,3.552 0.156,0.188 10 true B 2.875,4.844 3.031,5.031 0.156,0.188 10 true B 5.615,3.354 5.771,3.542 0.156,0.188 10 true B 5.146,4.854 5.302,5.042 0.156,0.188 10 true B 3.844,2.563 4.052,2.76 0.208,0.198 10 true *1 5.615,2.573 5.823,2.771 0.208,0.198 10 true *1

*1

Fuel Inlet Box Ring

-

-

HINT:

Put the cut in the fuel inlet box ring downward.

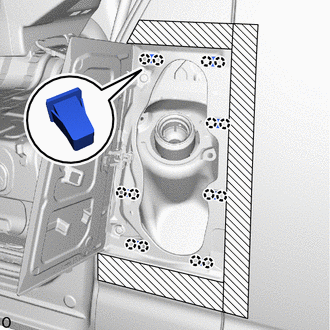

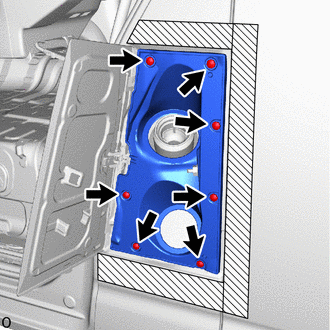

Using a 4 mm hexagon socket wrench, install the No. 3 fuel tank filler pipe shield with the 7 screws.

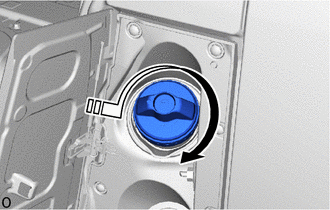

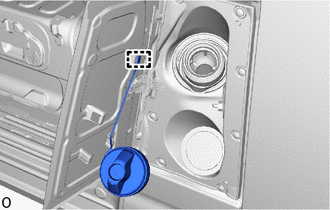

Attach the clamp and install the fuel tank cap assembly.

0,0 0,0 false

Install in this Direction

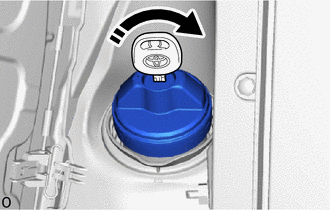

Install the fuel tank cap assembly as shown in the illustration.

0,0 0,0 false

Install in this Direction

w/ Key Type:

Attach the clamp and connect the fuel lid lock control cable sub-assembly.

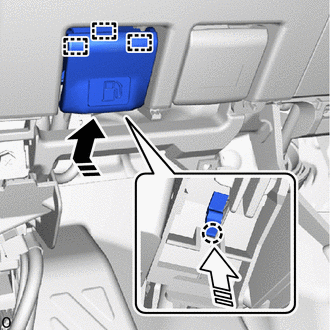

Attach the clamp and install the fuel lid lock open lever sub-assembly to the fuel lid lock control cable sub-assembly.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

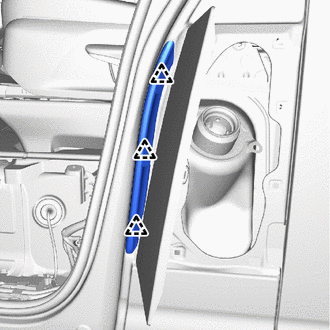

Attach the claw and guide to install the fuel lid lock open lever sub-assembly in the direction indicated by the arrow as shown in the illustration.
