DOOR / HATCH  FUEL LID LOCK CONTROL CABLE ASSEMBLY(for LHD)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the fuel lid lock control cable assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Removal and installation of battery terminal Parking assist monitor system Memorize steering angle neutral point (Click here)
Panoramic view monitor system (Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)


b.

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL

CAUTION:
B394718

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

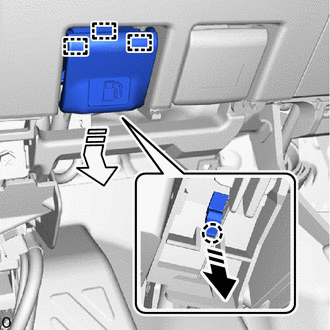

Hide 77306 6.REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

a.
B537971C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Detach the claw in the direction (1) indicated by the arrow shown in the illustration.


b.

Detach the guide in the direction (2) indicated by the arrow shown in the illustration and remove the fuel lid lock open lever sub-assembly.


c.
B537972

Detach the clamp and remove the fuel lid lock open lever sub-assembly from the fuel lid lock control cable sub-assembly.


Hide 77035 7.REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

a.
B537973

Detach the clamp and disconnect the fuel lid lock control cable sub-assembly.


Hide 77310A 8.REMOVE FUEL TANK CAP ASSEMBLY

a.
B537974C01
0,0 0,0 false
V113147

Remove in this Direction

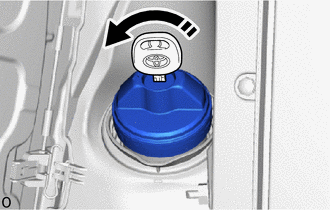

w/ Key Type:

i.

Insert the mechanical key into the fuel tank cap assembly and turn the key in the direction of the arrow shown in the illustration to unlock the fuel tank cap assembly.



b.
B537975C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the fuel tank cap assembly as shown in the illustration.


c.
B537976

Detach the clamp and remove the fuel tank cap assembly.


d.

w/ Urea SCR System:

HINT:

Use the same procedure to remove the fuel inlet box ring.



Hide 77293A 9.REMOVE NO. 3 FUEL TANK FILLER PIPE SHIELD

a.
B537977C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the fuel filler opening lid assembly as shown in the illustration.


b.

Remove the fuel inlet box ring as shown in the illustration.

B537978C01
4.667,1.177 5.052,0.969 true 4.667,2.469 5.052,2.333 true 4.229,0.552 4.781,0.802 0.552,0.25 10 false A-A 4.49,2.417 4.844,2.708 0.354,0.292 10 false *1 4.458,1.125 4.813,1.417 0.354,0.292 10 false *1 1.083,3.365 1.24,3.563 0.156,0.198 10 true A 0.573,4.833 0.729,5.031 0.156,0.198 10 true A 2.844,4.823 3,5.021 0.156,0.198 10 true A 3.313,3.354 3.469,3.552 0.156,0.198 10 true A
*1 Fuel Inlet Box Ring - -



c.

w/ Urea SCR System:

HINT:

Use the same procedure to remove the fuel inlet box ring.



d.

While pushing the fuel tank filler pipe shield assembly into the vehicle, disconnect the fuel tank filler pipe shield assembly from the No. 3 fuel tank filler pipe shield as shown in the illustration.

B537979N01
3.479,0.521 3.938,0.719 0.458,0.198 10 false A-A 5.24,0.51 5.698,0.708 0.458,0.198 10 false B-B 0.76,3.552 0.927,3.76 0.167,0.208 10 true A 0.781,5.177 0.948,5.385 0.167,0.208 10 true A 5.323,3.594 5.49,3.802 0.167,0.208 10 true B 5.333,5.188 5.5,5.396 0.167,0.208 10 true B


e.

w/ Urea SCR System:

HINT:

Use the same procedure to disconnect the fuel tank filler pipe shield assembly.



f.
B537980

Using a 4 mm hexagon socket wrench, remove the 7 screws.


g.
B537981C01
0,0 0,0 false
V113147

Remove in this Direction


Pull the No. 3 fuel tank filler pipe shield in the direction of the arrow shown in the illustration and remove it together with the fuel lid lock control cable sub-assembly.

HINT:

Pull the fuel lid lock control cable sub-assembly out of the vehicle.



h.
B537982

Detach the claw and remove the 7 grommets.


Hide 77035 10.REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

a.
B537983

Detach the clamp and remove the fuel lid lock control cable sub-assembly from the fuel filler opening lid lock sub-assembly.


Hide 77037 11.REMOVE FUEL FILLER OPENING LID LOCK SUB-ASSEMBLY

HINT:

Perform this procedure only when replacement of the fuel filler opening lid lock sub-assembly is necessary.


a.
B537984

Remove the nut and fuel filler opening lid lock sub-assembly.


Hide 77378A 12.REMOVE FUEL FILLER OPENING LID LOCK COVER

HINT:

Perform this procedure only when replacement of the fuel filler opening lid lock cover is necessary.


a.
B537988

Detach the clip and remove the fuel filler opening lid lock cover.
