The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the brake pedal support assembly removal/installation are shown below.
| Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) battery terminal | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,202310,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | ( 201906,202310,_56,_079315,_0396274,RM100000001IGR3,)
|
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Stop and start system | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). | ( 201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
|
| Lane control system | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
|
| Pre-collision system |
Learning completes when vehicle is operated normally
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power slide door system | Fully close the slide door by hand.
|
( 201902,202310,_59,_078503,_0381017,RM100000001FWXM,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
1. PRECAUTION
Be sure to read Precaution thoroughly before servicing.
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
73900
2.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
55646
3.REMOVE NO. 3 INSTRUMENT PANEL UNDER COVER
87211
4.REMOVE NO. 1 AIR DUCT
44610
5.REMOVE BRAKE BOOSTER ASSEMBLY
84340
6.REMOVE STOP LIGHT SWITCH ASSEMBLY
84345
7.REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

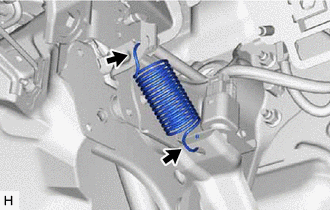

8.REMOVE BRAKE PEDAL RETURN SPRING
Remove the brake pedal return spring from the brake pedal support assembly.
47264A

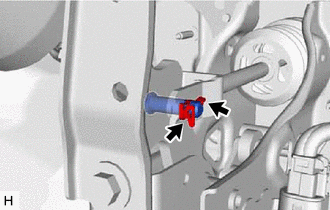

9.REMOVE PUSH ROD PIN
Remove the clip and push rod pin.
47110
10.REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
w/ Brake pedal Load Sensing Switch:

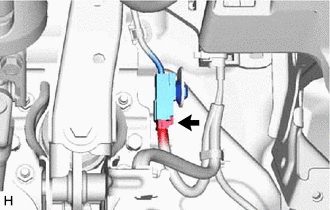

Disconnect the connector from the brake pedal support assembly.

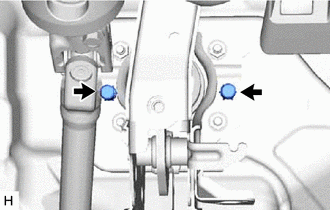

Remove the 2 clips from the brake pedal support assembly.

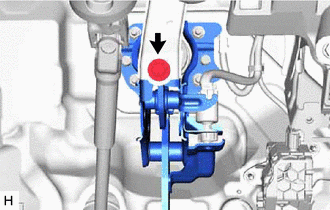

Remove the bolt and brake pedal support assembly from the instrument panel reinforcement assembly.
47121
11.REMOVE BRAKE PEDAL PAD
