RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0384445 STOP LIGHT SWITCH A

LIGHTING (EXT) STOP LIGHT SWITCH REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 67912A 1.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0046,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0046,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0046,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0046,

Hide Display 67914B 2.REMOVE FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74_02_0001,201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0001,202208,202310,_58,_078375,_0381233,RM1000000024I19_02_0001,202310,999999,_58,_078375,_0381233,RM100000002EPY5_02_0001,

Hide Display 62112 3.REMOVE COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0041,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0041,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0041,

Hide Display 55641 4.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201902,201906,_58,_078375,_0380058,RM100000001FRU9_02_0055,201906,202310,_58,_078375,_0380058,RM100000001IHOZ_02_0055,202310,999999,_58,_078375,_0380058,RM100000002EPVY_02_0055,

Hide Display 84340 5.REMOVE STOP LIGHT SWITCH ASSEMBLY

a.

E413277C01

0,0 0,0 false

V113147

Turn in this Direction

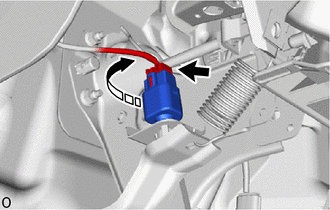

Disconnect the connector.

b.

Turn the stop light switch assembly and remove it.

Hide Display 84345 6.REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

a.

E413278C01

0,0 0,0 false

V100155

Protective Tape

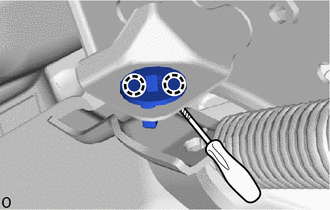

Using a screwdriver, detach the claw and remove the stop light switch mounting adjuster.

NOTICE:: The stop light switch mounting adjuster must not be reused.

HINT:: Tape the screwdriver tip before use.
