PARK ASSIST / MONITORING CLEARANCE WARNING ECU INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

A bolt without a torque specification is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS201902,999999,_V1,_080617,_0393342,RM100000001HX78,

Hide Display 89340A 1.INSTALL CLEARANCE WARNING ECU ASSEMBLY

0,0 0,0 false

	Nut
	Connector

Connect the connector.

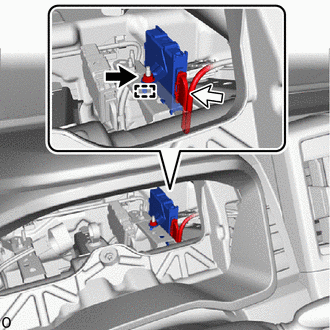

Attach the hook and install the clearance warning ECU assembly with the nut.

Hide Display 86792C 2.INSTALL PARKING ASSIST ECU (w/ Panoramic View Monitor System)

Hide Display 88051B 3.INSTALL NO. 1 ION GENERATOR SUB-ASSEMBLY (w/ Ion Generator)

Hide Display 83100 4.INSTALL COMBINATION METER ASSEMBLY

Hide Display 5.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Panoramic View Monitor System)

for 7GR-FKS:

for 1GD-FTV:

Hide Display 6. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Panoramic View Monitor System)

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 7.PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Panoramic View Monitor System)

for Type A:

for Type B:

for Type C:

Hide Display 8.CHECK SRS WARNING LIGHT (w/ Panoramic View Monitor System)

for Type A:

for Type B:

for Type C:
