METER / GAUGE / DISPLAY  COMBINATION METER  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure as for the LHD and RHD vehicles.

·

The procedure listed below is for the LHD vehicles.



PROCEDURE

Hide 83100 1.INSTALL COMBINATION METER ASSEMBLY

a.

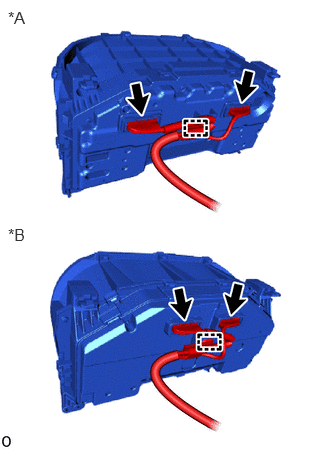

E415118C02
0.083,0.083 0.458,0.323 0.375,0.24 12 false *A 0.083,2.344 0.458,2.583 0.375,0.24 12 false *B
*A for TFT Display Type
*B for Segment Display Type


Attach the clamp and connect the 2 connectors.


b.

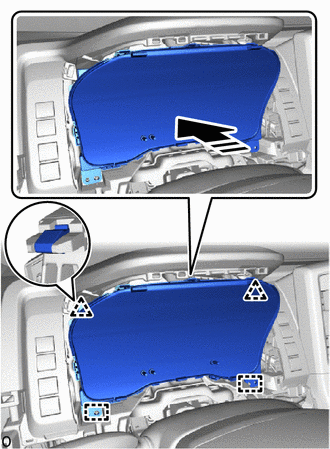

E415119C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and clip to install the combination meter assembly.


c.
E415116

Install the 2 screws.
