RM35X0E _56 Audio / Visual / Telematics _079315 PARK ASSIST / MONITORING _0397119 PARKING ASSIST ECU A

PARK ASSIST / MONITORING PARKING ASSIST ECU INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

A bolt without a torque specification is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS201902,999999,_V1,_080617,_0393342,RM100000001HX78,

PROCEDURE

Hide Display 86792C 1.INSTALL PARKING ASSIST ECU

a.

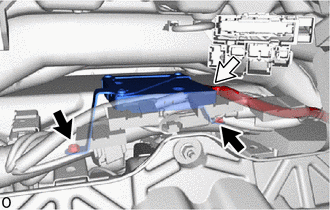

B552442

0,0 0,0 false

	Nut
	Connector

Install the parking assist ECU with the 2 nuts.

b.

Connect the connector.

c.

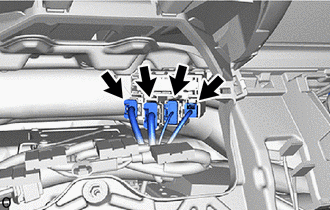

B553791

Connect the 4 connectors.

d.

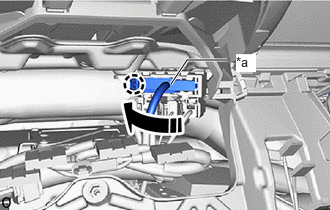

B553792C01

1.781,0.875 1.948,0.625 1.948,0.625 2.365,0.625 true 2.458,0.563 2.667,0.75 0.208,0.188 10 true *a

*a	Lever Connector
	Rotate in this Direction

Attach the claw to connect the lever connector.

NOTICE:: Be sure to connect the connector securely.

Hide Display 88051B 2.INSTALL NO. 1 ION GENERATOR SUB-ASSEMBLY (w/ Ion Generator)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>ION GENERATOR (for Front)>INSTALLATION201906,999999,_58,_079316,_0396516,RM100000001IHUW_01_0002,

Hide Display 83100 3.INSTALL COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>INSTALLATION201906,999999,_58,_078337,_0380006,RM100000001IHHF,

Hide Display 4.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

·

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

·

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 5.INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 6.PERFORM DIAGNOSTIC SYSTEM CHECK

a.

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

b.

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 7.CHECK SRS WARNING LIGHT

a.

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

b.

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 8.PERFORM CALIBRATION

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM>CALIBRATION201906,999999,_56,_079315,_0396274,RM100000001IGR4,
