DOOR / HATCH  SLIDE DOOR CLOSER SYSTEM  B2260  Power Slide Door Neutral Closer Switch RH Malfunction during Open Operation


DESCRIPTION

This DTC is output when the neutral position switch (close/release) in the power slide door lock assembly RH inputs a malfunction signal during a slide door open operation.

DTC No. Detection Item DTC Detection Condition Trouble Area
B2260 Power Slide Door Neutral Closer Switch RH Malfunction during Open Operation Slide door motor unit RH (slide door ECU RH) detects neutral position switch (close/release) malfunction signal in power slide door lock assembly RH during slide door open operation
·

Power slide door lock assembly RH

·

Slide door motor unit RH (slide door ECU RH)

·

Harness or connector

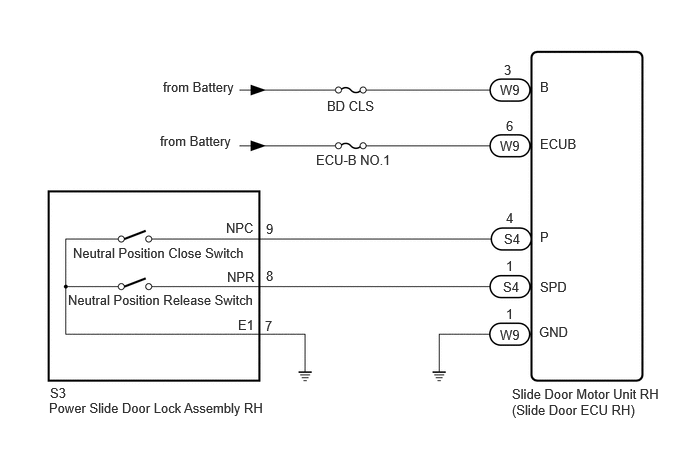

WIRING DIAGRAM

B369123E38
5.333,4.021 6.927,4.385 1.594,0.365 10 false Slide Door Motor Unit RH (Slide Door ECU RH) 5.208,3.406 6.854,3.74 1.646,0.333 10 false W9 5.208,1.438 6.854,1.771 1.646,0.333 10 false W9 5.208,0.854 6.854,1.188 1.646,0.333 10 false W9 5.625,0.823 7.073,1.177 1.448,0.354 10 false B 5.625,1.417 7.073,1.771 1.448,0.354 10 false ECUB 5.615,3.375 7.063,3.729 1.448,0.354 10 false GND 5.271,3.188 6.719,3.542 1.448,0.354 10 false 1 5.271,1.229 6.719,1.583 1.448,0.354 10 false 6 5.25,0.646 6.698,1 1.448,0.354 10 false 3 3.406,1.021 4.854,1.375 1.448,0.354 10 false BD CLS 3.292,1.583 4.74,1.938 1.448,0.354 10 false ECU-B NO.1 1.667,1.385 3.115,1.74 1.448,0.354 10 false from Battery 1.698,0.823 3.146,1.177 1.448,0.354 10 false from Battery 5.25,2.406 6.896,2.74 1.646,0.333 10 false S4 5.24,2.906 6.885,3.24 1.646,0.333 10 false S4 5.625,2.906 7.156,3.229 1.531,0.323 10 false SPD 5.625,2.385 7.156,2.708 1.531,0.323 10 false P 5.271,2.188 6.719,2.542 1.448,0.354 10 false 4 5.271,2.688 6.719,3.042 1.448,0.354 10 false 1 2.771,2.302 4.219,2.656 1.448,0.354 10 false 9 2.354,2.292 3.802,2.646 1.448,0.354 10 false NPC 2.365,2.802 3.813,3.156 1.448,0.354 10 false NPR 2.771,2.792 4.219,3.146 1.448,0.354 10 false 8 2.479,3.302 3.927,3.656 1.448,0.354 10 false E1 2.76,3.313 4.208,3.667 1.448,0.354 10 false 7 0.76,2.552 2.656,2.979 1.896,0.427 10 false Neutral Position Close Switch 0.708,3.042 2.802,3.469 2.094,0.427 10 false Neutral Position Release Switch 0.521,4.01 2.167,4.344 1.646,0.333 10 false S3 0.51,4.167 2.875,4.51 2.365,0.344 10 false Power Slide Door Lock Assembly RH

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following inspection procedure.

·

If the replacement, removal and installation of the slide door motor unit (slide door ECU) or disconnection of the connectors of the slide door motor unit (slide door ECU) has been performed, initialize the power slide door system.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>INITIALIZATION



PROCEDURE

1.CHECK FOR DTC
a.

Clear the DTC.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR CLOSER SYSTEM>DTC CHECK / CLEAR

Body Electrical > Rear Right Door > Clear DTCs
50002 161

b.

Check for DTC.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR CLOSER SYSTEM>DTC CHECK / CLEAR

Body Electrical > Rear Right Door > Trouble Codes
50001 161
OK:

DTC B2260 is not output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.CHECK HARNESS AND CONNECTOR (SLIDE DOOR MOTOR UNIT RH [SLIDE DOOR ECU RH] - BATTERY AND BODY GROUND)
2.CHECK HARNESS AND CONNECTOR (SLIDE DOOR MOTOR UNIT RH [SLIDE DOOR ECU RH] - BATTERY AND BODY GROUND)
a.
E416364C01
0.208,1.01 0.667,1.24 0.458,0.229 1.042,0.781 1.208,0.781 1.208,0.781 1.469,1.031 true 2,1.021 2.229,0.833 2.229,0.833 2.458,0.833 true 2.344,1.604 2.188,1.604 2.188,1.604 2,1.323 true 0.094,0.073 0.406,0.229 0.313,0.156 10 false *a 0.333,1.042 0.646,1.198 0.313,0.156 10 false W9 2.406,1.531 2.865,1.771 0.458,0.24 10 false ECUB 0.698,0.708 1.156,0.948 0.458,0.24 10 false GND 2.521,0.75 2.979,0.99 0.458,0.24 10 false B
*a Front view of wire harness connector
(to Slide Door Motor Unit RH [Slide Door ECU RH])


Disconnect the slide door motor unit RH (slide door ECU RH) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
W9-1 (GND) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
W9-3 (B) - Body ground Always 11 to 14 V
W9-6 (ECUB) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

3.READ VALUE USING GTS

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR CLOSER SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Rear Right Door > Data List
Tester Display Measurement Item Normal Condition Reference Value Diagnostic Note
Neutral Position Close Switch Status of the neutral position close switch ON or OFF ON: Neutral position close switch on
OFF: Neutral position close switch off 		-
Neutral Position Release Switch Status of the neutral position release switch ON or OFF ON: Neutral position release switch on
OFF: Neutral position release switch off 		-
Body Electrical > Rear Right Door > Data List
Tester Display
Neutral Position Close Switch
Neutral Position Release Switch
50003 161 44,45
OK:

The switches switch ON/OFF according to the slide door open/close operation.



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT RH (SLIDE DOOR ECU RH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

4.INSPECT POWER SLIDE DOOR LOCK ASSEMBLY RH
4.INSPECT POWER SLIDE DOOR LOCK ASSEMBLY RH
a.

Remove the power slide door lock assembly RH.

except Wagon:

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (except Wagon)>REMOVAL

for Wagon:

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (for Wagon)>REMOVAL



b.

Inspect the power slide door lock assembly RH.

except Wagon:

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (except Wagon)>INSPECTION

for Wagon:

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (for Wagon)>INSPECTION



Result:
Result Proceed to
OK A
NG (except Wagon) B
NG (for Wagon) C



A

5.CHECK HARNESS AND CONNECTOR (POWER SLIDE DOOR LOCK ASSEMBLY RH - SLIDE DOOR MOTOR UNIT RH [SLIDE DOOR ECU RH] AND BODY GROUND)

B

REPLACE POWER SLIDE DOOR LOCK ASSEMBLY RH

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (except Wagon)>REMOVAL


C

REPLACE POWER SLIDE DOOR LOCK ASSEMBLY RH

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (for Wagon)>REMOVAL


5.CHECK HARNESS AND CONNECTOR (POWER SLIDE DOOR LOCK ASSEMBLY RH - SLIDE DOOR MOTOR UNIT RH [SLIDE DOOR ECU RH] AND BODY GROUND)
a.

Disconnect the S3 power slide door lock assembly RH connector.


b.

Disconnect the S4 slide door motor unit RH (slide door ECU RH) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
S3-9 (NPC) - S4-4 (P) Always Below 1 Ω
S3-8 (NPR) - S4-1 (SPD) Always Below 1 Ω
S3-7 (E1) - Body ground Always Below 1 Ω
S3-9 (NPC) or S4-4 (P) - Body ground Always 10 kΩ or higher
S3-8 (NPR) or S4-1 (SPD) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT RH (SLIDE DOOR ECU RH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
