RM35X0E _58 Vehicle Interior _078336 DOOR LOCK _0397536 SLIDE DOOR LOCK(for Wagon) A

DOOR LOCK SLIDE DOOR LOCK(for Wagon) REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

Use the same procedure described for the RH side.

PROCEDURE

Hide Display 65988A 1.REMOVE SUNSHADE HOOK (w/ Sunshade)

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0055,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0055,

Hide Display 67692B 2.REMOVE SLIDE DOOR TRIM UPPER COVER RH

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0056,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0056,

Hide Display 67667A 3.REMOVE SLIDE DOOR WINDOW GARNISH RH

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0027,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0027,

Hide Display 67487A 4.REMOVE REAR DOOR REAR GUIDE BRACKET GARNISH RH

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0006,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0006,

Hide Display 81380D 5.REMOVE STEP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>STEP LIGHT ASSEMBLY>REMOVAL201906,999999,_58,_078381,_0399284,RM100000001IZVZ_02_0001,

Hide Display 67680B 6.REMOVE SLIDE DOOR TRIM BOARD ASSEMBLY RH

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0010,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0010,

Hide Display 67851E 7.REMOVE SLIDE DOOR SERVICE HOLE COVER RH

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0034,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0034,

Hide Display 69730A 8.REMOVE REAR DOOR LOCK CONTROL LINK ASSEMBLY RH (w/ Cover)

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the snap as shown in the illustration.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the rear door lock control link assembly RH.

Hide Display 69370B 9.REMOVE SLIDE DOOR FRONT LOCK ASSEMBLY RH

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the clamp.

Detach the snap as shown in the illustration.

Disconnect the cable from the cable clamp.

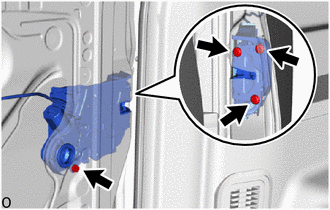

Using a T30 "TORX" socket wrench, remove the 4 "TORX" screws and slide door front lock assembly RH.

Hide Display 69330E 10.REMOVE SLIDE DOOR LOCK ASSEMBLY RH (w/o Power Slide Door)

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the clamp.

Detach the snap as shown in the illustration.

Disconnect the cable from the cable clamp.

Detach the clamp and remove the cable clamp.

Using a T30 "TORX" socket wrench, remove the 4 "TORX" screws and slide door lock assembly RH.

Hide Display 69200 11.REMOVE POWER SLIDE DOOR LOCK ASSEMBLY RH (w/ Power Slide Door)

1.656,2.333 1.823,2.531 0.167,0.198 10 true *a 0.5,0.333 0.667,0.531 0.167,0.198 10 true *b

*a	Lock Cable (Gray)
*b	Open Cable
	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the clamp.

Detach the 2 snaps and disconnect the 2 cables from the slide door lock remote control assembly RH as shown in the illustration.

Disconnect the 2 cables from the cable clamp.

Detach the clamp and remove the cable clamp.

0,0 0,0 false

	"TORX" Screw
	Connector

Disconnect the connector.

Using a T30 "TORX" socket wrench, remove the 4 "TORX" screws and power slide door lock assembly RH.

Hide Display 69630C 12.REMOVE SLIDE DOOR LOCK REMOTE CONTROL ASSEMBLY RH

Detach the clamp and remove the rear door lock remote control link RH.

1.615,2.333 1.792,2.51 0.177,0.177 10 true *a 1.635,0.188 1.823,0.365 0.188,0.177 10 true *b 2.479,1.24 2.656,1.417 0.177,0.177 10 true *c

*a	Locking Cable (Orange)
*b	Open Cable (Blue)
*c	Close Cable (Purple)
	Remove in this Direction (1)
	Remove in this Direction (2)

Detach the clamp.

Detach the 3 snaps and disconnect the 3 cables from the slide door lock remote control assembly RH as shown in the illustration.

0,0 0,0 false

	Bolt
	Connector

Disconnect the each connector.

Remove the 4 bolts.

Detach the guide and remove the slide door lock remote control assembly RH.
