RM35X0E _59 Vehicle Exterior _078503 DOOR / HATCH _0381018 SLIDE DOOR CLOSER SYSTEM C

DOOR / HATCH  SLIDE DOOR CLOSER SYSTEM  B225E  Power Slide Door Neutral Closer Switch RH Malfunction during Close Operation


DESCRIPTION

This DTC is output when the neutral position switch (close/release) in the power slide door lock assembly RH inputs a malfunction signal.

DTC No. Detection Item DTC Detection Condition Trouble Area
B225E Power Slide Door Neutral Closer Switch RH Malfunction during Close Operation Slide door motor unit RH (slide door ECU RH) detects neutral position switch (close/release) malfunction signal in power slide door lock assembly RH 5 times consecutively
·

Power slide door lock assembly RH

·

Slide door motor unit RH (slide door ECU RH)

·

Harness or connector

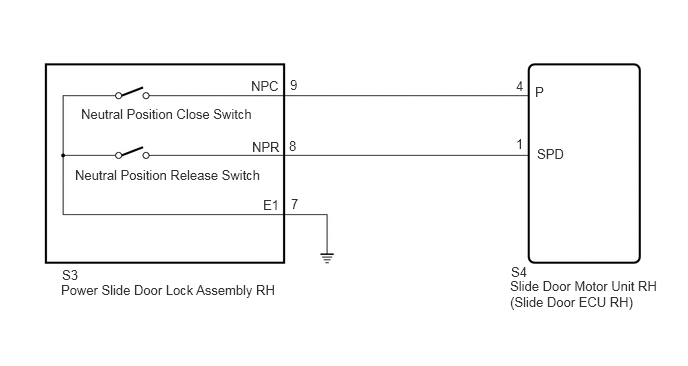

WIRING DIAGRAM

B369118E25
0.646,2.781 3.094,2.979 2.448,0.198 10 false S3 0.635,2.938 3.083,3.135 2.448,0.198 10 false Power Slide Door Lock Assembly RH 5.323,2.75 6.948,3.042 1.625,0.292 10 false S4 5.313,2.896 6.896,3.26 1.583,0.365 10 false Slide Door Motor Unit RH (Slide Door ECU RH) 5.573,0.875 6.719,1.208 1.146,0.333 10 false P 5.594,1.521 6.74,1.854 1.146,0.333 10 false SPD 5.375,0.813 6.521,1.146 1.146,0.333 10 false 4 5.375,1.417 6.521,1.75 1.146,0.333 10 false 1 3.021,0.802 4.167,1.135 1.146,0.333 10 false 9 3.01,1.438 4.156,1.771 1.146,0.333 10 false 8 3.031,2.042 4.177,2.375 1.146,0.333 10 false 7 2.74,2.052 3.885,2.385 1.146,0.333 10 false E1 2.625,1.448 3.771,1.781 1.146,0.333 10 false NPR 2.615,0.813 3.76,1.146 1.146,0.333 10 false NPC 0.844,1.104 2.688,1.427 1.844,0.323 10 false Neutral Position Close Switch 0.781,1.74 2.75,2.323 1.969,0.583 10 false Neutral Position Release Switch

CAUTION / NOTICE / HINT

NOTICE:

If the replacement, removal and installation of the slide door motor unit (slide door ECU) or disconnection of the connectors of the slide door motor unit (slide door ECU) has been performed, initialize the power slide door system.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>INITIALIZATION


PROCEDURE

1.CHECK FOR DTC
a.

Clear the DTC.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR CLOSER SYSTEM>DTC CHECK / CLEAR

Body Electrical > Rear Right Door > Clear DTCs
50002 161

b.

Check for DTC.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR CLOSER SYSTEM>DTC CHECK / CLEAR

Body Electrical > Rear Right Door > Trouble Codes
50001 161
OK:

DTC B225E is not output.



Result:
Proceed to
OK
NG



OK

NG

2.READ VALUE USING GTS
2.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR CLOSER SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Rear Right Door > Data List
Tester Display Measurement Item Normal Condition Reference Value Diagnostic Note
Neutral Position Close Switch Status of the neutral position close switch ON or OFF ON: Neutral position close switch on
OFF: Neutral position close switch off
-
Neutral Position Release Switch Status of the neutral position release switch ON or OFF ON: Neutral position release switch on
OFF: Neutral position release switch off
-
Body Electrical > Rear Right Door > Data List
Tester Display
Neutral Position Close Switch
Neutral Position Release Switch
50003 161 44,45
OK:

The switches switch ON/OFF according to the slide door open/close operation.



Result:
Proceed to
OK
NG



OK

NG

3.INSPECT POWER SLIDE DOOR LOCK ASSEMBLY RH
3.INSPECT POWER SLIDE DOOR LOCK ASSEMBLY RH

A

4.CHECK HARNESS AND CONNECTOR (POWER SLIDE DOOR LOCK ASSEMBLY RH - SLIDE DOOR MOTOR UNIT RH [SLIDE DOOR ECU RH] AND BODY GROUND)

B

C

4.CHECK HARNESS AND CONNECTOR (POWER SLIDE DOOR LOCK ASSEMBLY RH - SLIDE DOOR MOTOR UNIT RH [SLIDE DOOR ECU RH] AND BODY GROUND)
a.

Disconnect the S3 power slide door lock assembly RH connector.


b.

Disconnect the S4 slide door motor unit RH (slide door ECU RH) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
S3-9 (NPC) - S4-4 (P) Always Below 1 Ω
S3-8 (NPR) - S4-1 (SPD) Always Below 1 Ω
S3-7 (E1) - Body ground Always Below 1 Ω
S3-9 (NPC) or S4-4 (P) - Body ground Always 10 kΩ or higher
S3-8 (NPR) or S4-1 (SPD) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
