DOOR / HATCH  SLIDE DOOR CLOSER SYSTEM  B2254  Door Closer Switch Failure on Rear Right Door


DESCRIPTION

This DTC is output when the half-latch switch and full-latch switch in the power slide door lock assembly RH input a malfunction signal.

DTC No. Detection Item DTC Detection Condition Trouble Area
B2254 Door Closer Switch Failure on Rear Right Door Slide door motor unit RH (slide door ECU RH) detects half-latch switch and full-latch switch malfunction signal input in power slide door lock assembly RH
·

Power slide door lock assembly RH

·

Slide door motor unit RH (slide door ECU RH)

·

Harness or connector

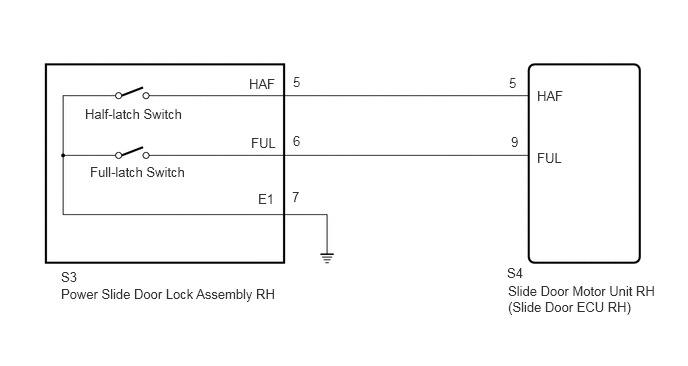

WIRING DIAGRAM

B369118E23
5.292,2.948 6.854,3.302 1.563,0.354 10 false Slide Door Motor Unit RH (Slide Door ECU RH) 5.594,0.917 6.635,1.26 1.042,0.344 10 false HAF 5.594,1.563 6.635,1.906 1.042,0.344 10 false FUL 5.302,0.781 6.344,1.125 1.042,0.344 10 false 5 5.281,2.76 6.323,3.104 1.042,0.344 10 false S4 5.323,1.396 6.365,1.74 1.042,0.344 10 false 9 3.052,1.385 4.094,1.729 1.042,0.344 10 false 6 3.052,0.771 4.094,1.115 1.042,0.344 10 false 5 2.594,0.792 3.635,1.135 1.042,0.344 10 false HAF 2.615,1.406 3.656,1.75 1.042,0.344 10 false FUL 2.688,1.99 3.729,2.333 1.042,0.344 10 false E1 3.042,1.969 4.083,2.313 1.042,0.344 10 false 7 0.885,1.104 2.146,1.51 1.26,0.406 10 false Half-latch Switch 0.938,1.708 2.198,2.115 1.26,0.406 10 false Full-latch Switch 0.635,2.802 1.896,3.208 1.26,0.406 10 false S3 0.635,2.979 2.969,3.448 2.333,0.469 10 false Power Slide Door Lock Assembly RH

CAUTION / NOTICE / HINT

NOTICE:

If the replacement, removal and installation of the slide door motor unit (slide door ECU) or disconnection of the connectors of the slide door motor unit (slide door ECU) has been performed, initialize the power slide door system.

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR SYSTEM>INITIALIZATION


PROCEDURE

1.CHECK FOR DTC
a.

Clear the DTC.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR CLOSER SYSTEM>DTC CHECK / CLEAR

Body Electrical > Rear Right Door > Clear DTCs
50002 161

b.

Check for DTC.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR CLOSER SYSTEM>DTC CHECK / CLEAR

Body Electrical > Rear Right Door > Trouble Codes
50001 161
OK:

DTC B2254 is not output.



Result:
Proceed to
OK
NG



OK

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


NG

2.READ VALUE USING GTS
2.READ VALUE USING GTS
a.

Read the Data List according to the display on the GTS.

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR CLOSER SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > Rear Right Door > Data List
Tester Display Measurement Item Normal Condition Reference Value Diagnostic Note
Half Switch Status of the half-latch switch ON or OFF ON: Half-latch switch on
OFF: Half-latch switch off 		-
Full Switch Status of the full-latch switch ON or OFF ON: Full-latch switch on
OFF: Full-latch switch off 		-
Body Electrical > Rear Right Door > Data List
Tester Display
Half Switch
Full Switch
50003 161 2,3
OK:

The switches switch ON/OFF according to the slide door open/close operation.



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT RH (SLIDE DOOR ECU RH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

3.INSPECT POWER SLIDE DOOR LOCK ASSEMBLY RH
3.INSPECT POWER SLIDE DOOR LOCK ASSEMBLY RH
a.

Remove the power slide door lock assembly RH.

except Wagon:

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (except Wagon)>REMOVAL

for Wagon:

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (for Wagon)>REMOVAL



b.

Inspect the power slide door lock assembly RH.

except Wagon:

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (except Wagon)>INSPECTION

for Wagon:

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (for Wagon)>INSPECTION



Result:
Result Proceed to
OK A
NG (except Wagon) B
NG (for Wagon) C



A

4.CHECK HARNESS AND CONNECTOR (POWER SLIDE DOOR LOCK ASSEMBLY RH - SLIDE DOOR MOTOR UNIT RH [SLIDE DOOR ECU RH] AND BODY GROUND)

B

REPLACE POWER SLIDE DOOR LOCK ASSEMBLY RH

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (except Wagon)>REMOVAL


C

REPLACE POWER SLIDE DOOR LOCK ASSEMBLY RH

Click hereVehicle Interior>DOOR LOCK>SLIDE DOOR LOCK (for Wagon)>REMOVAL


4.CHECK HARNESS AND CONNECTOR (POWER SLIDE DOOR LOCK ASSEMBLY RH - SLIDE DOOR MOTOR UNIT RH [SLIDE DOOR ECU RH] AND BODY GROUND)
a.

Disconnect the S3 power slide door lock assembly RH connector.


b.

Disconnect the S4 slide door motor unit RH (slide door ECU RH) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
S3-6 (FUL) - S4-9 (FUL) Always Below 1 Ω
S3-5 (HAF) - S4-5 (HAF) Always Below 1 Ω
S3-7 (E1) - Body ground Always Below 1 Ω
S3-6 (FUL) or S4-9 (FUL) - Body ground Always 10 kΩ or higher
S3-5 (HAF) or S4-5 (HAF) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE SLIDE DOOR MOTOR UNIT RH (SLIDE DOOR ECU RH)

Click hereVehicle Exterior>DOOR / HATCH>POWER SLIDE DOOR MOTOR>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
