SUPPLEMENTAL RESTRAINT SYSTEMS AIRBAG SYSTEM(for Type C) SRS Warning Light Remains ON

DESCRIPTION

The SRS warning light is located in the combination meter assembly.

When the SRS is normal, the SRS warning light comes on for approximately 6 seconds after the engine switch is turned from off to on (IG), and then goes off automatically.

If there is a malfunction in the SRS, the SRS warning light comes on to inform the driver of a problem.

If a malfunction occurs in the airbag sensor assembly, combination meter assembly or wire harness connected to the airbag sensor assembly or combination meter assembly, the SRS warning light comes on.

The SRS is equipped with a voltage-increase circuit (DC-DC converter) in the airbag sensor assembly in case the source voltage drops.

When the battery voltage drops, the voltage-increase circuit (DC-DC converter) functions to increase the voltage of the SRS to normal voltage.

A malfunction in this circuit is not recorded in the airbag sensor assembly. The SRS warning light automatically goes off when the source voltage returns to normal.

The signal to illuminate the SRS warning light is transmitted from the airbag sensor assembly to the combination meter assembly through the CAN communication system.

WIRING DIAGRAM

5.563,3.75 7.125,4.052 1.563,0.302 10 false Airbag Sensor Assembly 2.677,3.615 4.771,3.896 2.094,0.281 10 false Combination Meter Assembly 2.104,1.417 2.854,1.635 0.75,0.219 10 false METER-IG2 0.052,1.26 1.51,1.479 1.458,0.219 10 false from IG2-NO.2 Relay*1 2.969,0.573 4.479,0.927 1.51,0.354 10 false from IG2-NO.2 Relay 0.677,1.781 2.094,2.01 1.417,0.229 10 false from Battery 0.792,4.188 3.563,4.417 2.771,0.229 10 false : CAN Communication Line 4.927,0.76 5.792,1.125 0.865,0.365 10 false A/BAG-IG2 2.25,1.969 2.917,2.156 0.667,0.188 10 false METER 2.698,3.448 3.083,3.635 0.385,0.188 10 false N22 3.146,1.271 3.531,1.458 0.385,0.188 10 false IG+ 6.083,0.604 6.469,0.792 0.385,0.188 10 false IG2 2.875,1.146 3.177,1.333 0.302,0.188 10 false 38 2.844,1.688 3.104,1.896 0.26,0.208 10 false 22 2.823,2.26 3.125,2.448 0.302,0.188 10 false 23 5.792,2.771 6.094,2.958 0.302,0.188 10 false 32 5.792,2.26 6.094,2.448 0.302,0.188 10 false 33 5.781,0.5 6.083,0.688 0.302,0.188 10 false 36 6.083,2.375 6.385,2.563 0.302,0.188 10 false E1 6.073,2.896 6.375,3.083 0.302,0.188 10 false E2 3.135,2.375 3.438,2.563 0.302,0.188 10 false ET 5.583,3.573 5.99,3.76 0.406,0.188 10 false N45 3.135,1.833 3.438,2.021 0.302,0.188 10 false B 0.156,0.677 1.552,1.021 1.396,0.344 10 false from Engine Stop and Start ECU*2 3.24,4.083 5.281,4.292 2.042,0.208 10 false *1: w/o Stop and Start System 3.24,4.406 5.281,4.615 2.042,0.208 10 false *2: w/ Stop and Start System

CAUTION / NOTICE / HINT

NOTICE:

After the engine switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

When disconnecting and reconnecting the battery

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

After replacing the airbag sensor assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE201906,202005,_V1,_081196,_0393339,RM100000001IWEZ,202005,202107,_V1,_081196,_0393339,RM100000001M43S,202107,202208,_V1,_081196,_0393339,RM100000001WMAF,202208,999999,_V1,_081196,_0393339,RM1000000024IQN,

Inspect the fuses for circuits related to this system before performing the following procedure.

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

PROCEDURE

1.CHECK SRS WARNING LIGHT OPERATION

Turn the engine switch on (IG) and check the SRS warning light condition.

HINT:: The primary check is performed for approximately 6 seconds after the engine switch is turned on (IG).

Result:

Result	Proceed to
After the primary check period, the SRS warning light remains on.	A
After the primary check period, the SRS warning light goes off and comes on again.	B

2.CHECK BATTERY

6.CHECK CAN COMMUNICATION SYSTEM

2.CHECK BATTERY

Measure the battery voltage.

Standard voltage:: 11 to 14 V

HINT:: It may be possible to tell whether the battery is discharged by operating the horn.; If the voltage is below 11 V, recharge or replace the battery before proceeding to the next step.

Result:

Proceed to
OK
NG

3.CHECK CONNECTOR

REPLACE OR RECHARGE BATTERY

3.CHECK CONNECTOR

Turn the engine switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Check that the connector is properly connected to the airbag sensor assembly.

OK:: The connector is properly connected.

HINT:: If the connector is not properly connected, reconnect the connector and proceed to the next inspection.

Disconnect the connector from the airbag sensor assembly.

Check that the terminals of the connector are not deformed or damaged.

OK:: The terminals are not deformed or damaged.

Result:

Proceed to
OK
NG

4.CHECK HARNESS AND CONNECTOR (AIRBAG SENSOR ASSEMBLY - BATTERY AND BODY GROUND)

REPLACE INSTRUMENT PANEL WIRE

4.CHECK HARNESS AND CONNECTOR (AIRBAG SENSOR ASSEMBLY - BATTERY AND BODY GROUND)

0.302,0.948 0.677,1.177 0.375,0.229 2.094,1.906 1.844,1.906 1.844,1.906 1.844,1.469 true 1.135,1.896 1.302,1.896 1.302,1.896 1.74,1.479 true 2.729,1.75 2.573,1.75 2.573,1.75 2.125,1.469 true 0.167,0.135 0.427,0.354 0.26,0.219 10 false *a 0.365,0.979 0.688,1.198 0.323,0.219 10 false N45 2.833,1.667 3.167,1.865 0.333,0.198 10 false IG2 2.188,1.823 2.469,2 0.281,0.177 10 false E1 0.906,1.823 1.26,2.021 0.354,0.198 10 false E2

*a	Front view of wire harness connector (to Airbag Sensor Assembly)

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the engine switch on (IG).

Operate all components of the electrical systems (defogger, wipers, headlights, heater blower, etc.).

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
N45-36 (IG2) - Body ground	Engine switch on (IG)	8 to 16 V

Turn the engine switch off.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N45-33 (E1) - Body ground	Always	Below 1 Ω
N45-32 (E2) - Body ground	Always	Below 1 Ω

Result:

Proceed to
OK
NG

5.CHECK SRS WARNING LIGHT (SHORT TO GROUND)

REPLACE INSTRUMENT PANEL WIRE

5.CHECK SRS WARNING LIGHT (SHORT TO GROUND)

Turn the engine switch on (IG) and check the SRS warning light condition.

OK:: After the primary check period, the SRS warning light turns off for approximately 10 seconds and then turns back on.

HINT:: The primary check period is approximately 6 seconds after the engine switch is turned on (IG).

Result:

Proceed to
OK
NG

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL201906,999999,_58,_079257,_0384942,RM100000001IN22,

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL201906,999999,_58,_078337,_0380006,RM100000001IHHE,

6.CHECK CAN COMMUNICATION SYSTEM

Check if a CAN communication DTC is output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>DIAGNOSIS SYSTEM201906,202005,_57,_078518,_0381088,RM100000001IUWS,202005,202107,_57,_078518,_0381088,RM100000001M0XB,202107,202208,_57,_078518,_0381088,RM100000001X4LL,202208,999999,_57,_078518,_0381088,RM10000000257V5,

Result:

Proceed to
DTCs are output
DTC is not output

DTCs are output

GO TO CAN COMMUNICATION SYSTEM

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING201906,999999,_57,_078518,_0381088,RM100000001WPQJ,

DTC is not output

7.CHECK BATTERY

Measure the battery voltage with the engine switch off.

Standard voltage:: 11 to 14 V

HINT:: It may be possible to tell whether the battery is discharged by operating the horn.; If the voltage is below 11 V, recharge or replace the battery before proceeding to the next step.

Result:

Proceed to
OK
NG

8.CHECK CONNECTOR

REPLACE OR RECHARGE BATTERY

8.CHECK CONNECTOR

Turn the engine switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Check that the connector is properly connected to the airbag sensor assembly.

OK:: The connector is properly connected.

HINT:: If the connector is not properly connected, reconnect the connector and proceed to the next inspection.

Disconnect the connector from the airbag sensor assembly.

Check that the terminals of the connector are not deformed or damaged.

OK:: The terminals are not deformed or damaged.

Result:

Proceed to
OK
NG

9.CHECK HARNESS AND CONNECTOR (AIRBAG SENSOR ASSEMBLY - BATTERY AND BODY GROUND)

REPLACE INSTRUMENT PANEL WIRE

9.CHECK HARNESS AND CONNECTOR (AIRBAG SENSOR ASSEMBLY - BATTERY AND BODY GROUND)

*a	Front view of wire harness connector (to Airbag Sensor Assembly)

Connect the cable to the negative (-) battery terminal.

Turn the engine switch on (IG).

Operate all components of the electrical systems (defogger, wipers, headlights, heater blower, etc.).

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
N45-36 (IG2) - Body ground	Engine switch on (IG)	8 to 16 V

Turn the engine switch off.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N45-33 (E1) - Body ground	Always	Below 1 Ω
N45-32 (E2) - Body ground	Always	Below 1 Ω

Result:

Proceed to
OK
NG

10.CHECK CONNECTOR

REPLACE INSTRUMENT PANEL WIRE

10.CHECK CONNECTOR

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Check that the connector is properly connected to the combination meter assembly.

OK:: The connector is properly connected.

HINT:: If the connector is not properly connected, reconnect the connector and proceed to the next inspection.

Disconnect the connector from the combination meter assembly.

Check that the terminals of the connector are not deformed or damaged.

OK:: The terminals are not deformed or damaged.

Result:

Proceed to
OK
NG

11.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BATTERY AND BODY GROUND)

REPAIR OR REPLACE CONNECTOR

11.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BATTERY AND BODY GROUND)

1.5,0.073 1.885,0.333 0.385,0.26 2.75,1.833 2.917,1.833 2.917,1.833 2.781,1.385 true 2.75,1.167 2.917,0.333 2.917,0.333 3.083,0.333 true 0.646,1.375 0.5,1.917 0.5,1.917 0.333,1.917 true 0.115,0.083 0.427,0.24 0.313,0.156 10 false *a 1.573,0.115 1.917,0.302 0.344,0.188 10 false N22 2.448,1.75 2.75,1.99 0.302,0.24 10 false IG+ 3.167,0.25 3.417,0.51 0.25,0.26 10 false B 0.083,1.833 0.385,2.021 0.302,0.188 10 false ET

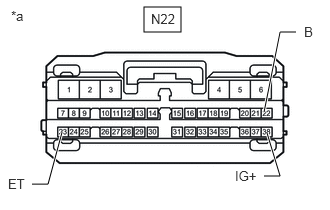

*a	Front view of wire harness connector (to Combination Meter Assembly)

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the engine switch on (IG).

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

w/o Stop and Start System
Tester Connection	Condition	Specified Condition
N22-38 (IG+) - Body ground	Engine switch on (IG)	11 to 14 V
N22-22 (B) - Body ground	Always	11 to 14 V

w/ Stop and Start System
Tester Connection	Condition	Specified Condition
N22-38 (IG+) - Body ground	Engine switch on (IG)	10.5 to 16 V
N22-22 (B) - Body ground	Always	11 to 14 V

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N22-23 (ET) - Body ground	Always	Below 1 Ω

Result:

Proceed to
OK
NG

12.CHECK SRS WARNING LIGHT

REPAIR OR REPLACE HARNESS OR CONNECTOR

12.CHECK SRS WARNING LIGHT

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Connect the connector to the combination meter assembly.

Connect the cable to the negative (-) battery terminal.

Turn the engine switch on (IG) and check the SRS warning light condition.

OK:: After the primary check period, the SRS warning light turns off for approximately 10 seconds and then turns back on.

HINT:: The primary check period is approximately 6 seconds after the engine switch is turned on (IG).

Result:

Proceed to
OK
NG

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL201906,999999,_58,_079257,_0384942,RM100000001IN22,

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL201906,999999,_58,_078337,_0380006,RM100000001IHHE,
