SUPPLEMENTAL RESTRAINT SYSTEMS AIRBAG SYSTEM(for Type C) B1642 Side Satellite Sensor Bus Lost Communication (RH) B1643 Side Satellite Sensor Bus Initialization Error (RH)

DESCRIPTION

The side collision sensor RH circuit consists of the airbag sensor assembly, No. 4 side airbag sensor RH, No. 2 side airbag sensor RH and No. 3 side airbag sensor RH.

The No. 4 side airbag sensor RH, No. 2 side airbag sensor RH and No. 3 side airbag sensor RH detect impacts to the vehicle and send signals to the airbag sensor assembly to determine if the SRS should be deployed.

These DTCs are stored when a malfunction is detected in the side collision sensor RH circuit.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Test Mode / Check Mode
B1642	Side Satellite Sensor Bus Lost Communication (RH)	One of the following conditions is met: · The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side satellite sensor bus RH for 2 seconds. · A No. 4 side airbag sensor RH malfunction. · A No. 2 side airbag sensor RH malfunction. · A No. 3 side airbag sensor RH malfunction. · An airbag sensor assembly malfunction.	· No. 1 rear door wire · No. 2 floor wire · No. 4 side airbag sensor RH · No. 2 side airbag sensor RH · No. 3 side airbag sensor RH · Airbag sensor assembly	Comes on	Not applicable
B1643	Side Satellite Sensor Bus Initialization Error (RH)	One of the following conditions is met: · The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side satellite sensor bus RH for 2 seconds. · A No. 4 side airbag sensor RH malfunction. · A No. 2 side airbag sensor RH malfunction. · A No. 3 side airbag sensor RH malfunction. · An airbag sensor assembly malfunction.	· No. 1 rear door wire · No. 2 floor wire · No. 4 side airbag sensor RH · No. 2 side airbag sensor RH · No. 3 side airbag sensor RH · Airbag sensor assembly	Comes on	Not applicable

WIRING DIAGRAM

5.531,4.719 5.958,4.927 0.427,0.208 10 false W1 5.531,4.875 7.094,5.094 1.563,0.219 10 false Airbag Sensor Assembly 5.667,0.5 6.5,1.198 0.833,0.698 10 false BBR+ 5.667,1.135 6.5,1.833 0.833,0.698 10 false BBR- 5.365,0.385 6.208,1.385 0.844,1 10 false 25 5.365,0.948 6.031,1.781 0.667,0.833 10 false 26 0.26,2.771 3.219,3.521 2.958,0.75 10 false No. 4 Side Airbag Sensor RH 0.26,2.615 0.833,3.167 0.573,0.552 10 false W21 1.74,0.385 2.771,1.188 1.031,0.802 10 false 4 1.729,0.979 2.76,1.781 1.031,0.802 10 false 3 1.719,1.531 2.75,2.333 1.031,0.802 10 false 1 1.708,2.156 2.74,2.958 1.031,0.802 10 false 2 1.188,0.521 2.135,1.021 0.948,0.5 10 false BBR+ 1.198,1.094 3.083,1.896 1.885,0.802 10 false BBR- 1.188,2.281 3.073,3.083 1.885,0.802 10 false BCR- 1.177,1.708 2.125,2.208 0.948,0.5 10 false BCR+ 4.177,1.708 5.125,2.208 0.948,0.5 10 false BCR+ 4.188,4.354 6.073,5.156 1.885,0.802 10 false BDR- 3.927,1.563 4.958,2.365 1.031,0.802 10 false 4 3.917,2.135 4.948,2.938 1.031,0.802 10 false 3 4.198,2.302 6.083,3.104 1.885,0.802 10 false BCR- 1.198,3.792 2.146,4.292 0.948,0.5 10 false BDR+ 4.167,3.802 5.115,4.302 0.948,0.5 10 false BDR+ 2.615,4.542 4.5,5.344 1.885,0.802 10 false BDR- 2.646,4 3.594,4.5 0.948,0.5 10 false BDR+ 1.219,4.344 3.104,5.146 1.885,0.802 10 false BDR- 3.573,4.865 5.385,5.083 1.813,0.219 10 false No. 2 Side Airbag Sensor RH 3.563,4.698 4.063,4.896 0.5,0.198 10 false W22 0.281,4.844 2.917,5.385 2.635,0.542 10 false No. 3 Side Airbag Sensor RH 0.281,4.677 0.781,5.073 0.5,0.396 10 false S7 2.646,3.802 3.104,4 0.458,0.198 10 false SW2 2.646,4.344 3.104,4.542 0.458,0.198 10 false SW2 3.958,4.219 4.99,5.021 1.031,0.802 10 false 2 2.76,3.594 3.104,3.771 0.344,0.177 10 false 2 1.667,4.229 2.698,5.031 1.031,0.802 10 false 1 1.677,3.677 2.708,4.479 1.031,0.802 10 false 2 3.938,3.667 4.969,4.469 1.031,0.802 10 false 1 2.771,4.146 3.083,4.365 0.313,0.219 10 false 1

CAUTION / NOTICE / HINT

NOTICE:

After the engine switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

When disconnecting and reconnecting the battery

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

After replacing the airbag sensor assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE201906,202005,_V1,_081196,_0393339,RM100000001IWEZ,202005,202107,_V1,_081196,_0393339,RM100000001M43S,202107,202208,_V1,_081196,_0393339,RM100000001WMAF,202208,999999,_V1,_081196,_0393339,RM1000000024IQN,

PROCEDURE

1.CHECK CONNECTION OF CONNECTORS

Turn the engine switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Check that the connectors are properly connected to the airbag sensor assembly and No. 4 side airbag sensor RH.

Result:

Proceed to
The connectors are properly connected
The connectors are not properly connected

The connectors are properly connected

2.CHECK CONNECTORS

The connectors are not properly connected

CONNECT CONNECTORS PROPERLY

2.CHECK CONNECTORS

0.656,1.75 0.969,1.948 0.313,0.198 10 false *1 1.521,1.031 1.833,1.229 0.313,0.198 10 false *3 2.573,1.542 2.885,1.74 0.313,0.198 10 false *2

*1	No. 4 Side Airbag Sensor RH
*2	Airbag Sensor Assembly
*3	No. 2 Floor Wire

Disconnect the connectors from the airbag sensor assembly and No. 4 side airbag sensor RH.

Check that the connectors (on the airbag sensor assembly side and No. 4 side airbag sensor RH side) are not damaged.

Result:

Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged

The connectors are not deformed or damaged

3.CHECK NO. 2 FLOOR WIRE

The connectors are deformed or damaged

REPLACE NO. 2 FLOOR WIRE

3.CHECK NO. 2 FLOOR WIRE

0.698,0.594 1.156,0.813 0.458,0.219 2.646,3.115 3.104,3.333 0.458,0.219 1.885,3.927 1.479,3.49 1.479,3.49 1.313,3.49 true 1.354,3.75 1.521,3.75 1.521,3.75 1.802,3.927 true 1.458,1.24 1.615,1.24 1.615,1.24 1.885,0.771 true 2.458,1.208 2.281,1.208 2.281,1.208 2.063,0.76 true 1.885,4.26 2.021,4.396 2.021,4.396 2.177,4.396 true 0.427,2.677 0.74,2.833 0.313,0.156 10 false *1 2.688,2.479 3,2.635 0.313,0.156 10 false *2 1.5,2.385 1.813,2.542 0.313,0.156 10 false *3 2.229,4.302 2.542,4.458 0.313,0.156 10 false *4 0.771,0.208 1.083,0.365 0.313,0.156 10 false *a 0.958,2.906 1.271,3.063 0.313,0.156 10 false *b 2.281,2.167 2.594,2.323 0.313,0.156 10 false A 1.99,2.167 2.302,2.323 0.313,0.156 10 false B 1.01,2.177 1.323,2.333 0.313,0.156 10 false C 0.719,2.177 1.031,2.333 0.313,0.156 10 false D 0.781,0.625 1.167,0.844 0.385,0.219 10 false W21 2.76,3.135 3.073,3.292 0.313,0.156 10 false W1 0.917,3.406 1.417,3.646 0.5,0.24 10 false BBR- 0.958,3.677 1.458,3.917 0.5,0.24 10 false BBR+ 2.531,1.125 3.031,1.365 0.5,0.24 10 false BBR+ 1.073,1.135 1.573,1.375 0.5,0.24 10 false BBR-

*1	No. 4 Side Airbag Sensor RH
*2	Airbag Sensor Assembly
*3	No. 2 Floor Wire
*4	Service Wire

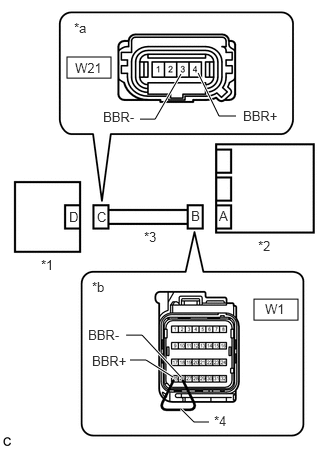

*a	Front view of wire harness connector (to No. 4 Side Airbag Sensor RH)
*b	Front view of wire harness connector (to Airbag Sensor Assembly)

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the engine switch on (IG).

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
W21-4 (BBR+) - Body ground	Engine switch on (IG)	Below 1 V
W21-3 (BBR-) - Body ground	Engine switch on (IG)	Below 1 V

Turn the engine switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 25 (BBR+) and 26 (BBR-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
W21-4 (BBR+) - W21-3 (BBR-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
W21-4 (BBR+) - W21-3 (BBR-)	Always	1 MΩ or higher
W21-4 (BBR+) - Body ground	Always	1 MΩ or higher
W21-3 (BBR-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

4.CHECK NO. 4 SIDE AIRBAG SENSOR RH

REPLACE NO. 2 FLOOR WIRE

4.CHECK NO. 4 SIDE AIRBAG SENSOR RH

0.969,1.583 1.24,1.781 0.271,0.198 10 false *1 2.49,1.396 2.76,1.594 0.271,0.198 10 false *2

*1	No. 4 Side Airbag Sensor LH
*2	Airbag Sensor Assembly

Connect the connectors to the airbag sensor assembly.

Interchange the No. 4 side airbag sensor RH with LH and connect the connectors to them.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the engine switch on (IG), and wait for at least 60 seconds.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Body Electrical > SRS Airbag > Clear DTCs: 50002 188

Turn the engine switch off.

Turn the engine switch on (IG), and wait for at least 60 seconds.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Body Electrical > SRS Airbag > Trouble Codes: 50001 188

Result:

Proceed to
DTC B1642 or B1643 is output
DTC B1647 or B1648 is output
DTCs B1642, B1643, B1647 and B1648 are not output

HINT:: Codes other than B1642, B1643, B1647 and B1648 may be output at this time, but they are not related to this check.

Turn the engine switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Return the No. 4 side airbag sensor LH and RH to their original positions and connect the connectors to them.

DTC B1642 or B1643 is output

5.CHECK CONNECTION OF CONNECTOR

DTC B1647 or B1648 is output

REPLACE NO. 4 SIDE AIRBAG SENSOR RH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Rear Pillar)>REMOVAL201906,999999,_58,_079257,_0385611,RM100000001IIS2,

DTCs B1642, B1643, B1647 and B1648 are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_V1,_078841,_0386803,RM100000001GTWY,

5.CHECK CONNECTION OF CONNECTOR

Check that the connector is properly connected to the No. 2 side airbag sensor RH.

Result:

Proceed to
The connector is properly connected
The connector is not properly connected

The connector is properly connected

6.CHECK CONNECTOR

The connector is not properly connected

CONNECT CONNECTOR PROPERLY

6.CHECK CONNECTOR

0.604,1.5 0.917,1.656 0.313,0.156 10 false *1 2.604,1.5 2.917,1.656 0.313,0.156 10 false *2 1.563,1.125 1.875,1.281 0.313,0.156 10 false *3

*1	No. 2 Side Airbag Sensor RH
*2	No. 4 Side Airbag Sensor RH
*3	No. 2 Floor Wire

Disconnect the connectors from the No. 4 side airbag sensor RH and No. 2 side airbag sensor RH.

Check that the connector (on the No. 2 side airbag sensor RH side) is not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

7.CHECK NO. 2 FLOOR WIRE

The connector is deformed or damaged

REPLACE NO. 2 FLOOR WIRE

7.CHECK NO. 2 FLOOR WIRE

0.708,0.802 1.083,1.052 0.375,0.25 2.24,2.906 2.74,3.146 0.5,0.24 1.542,1.552 1.708,1.552 1.708,1.552 1.948,1.021 true 2.542,1.552 2.427,1.552 2.427,1.552 2.115,1.021 true 0.99,3.406 1.156,3.406 1.156,3.406 1.635,3.729 true 1.365,3.021 1.531,3.021 1.531,3.021 1.813,3.708 true 1.917,4.198 2.135,4.344 2.135,4.344 2.292,4.344 true 0.448,2.583 0.76,2.74 0.313,0.156 10 false *1 2.635,2.583 2.948,2.74 0.313,0.156 10 false *2 1.5,2.375 1.813,2.531 0.313,0.156 10 false *3 0.781,0.292 1.094,0.448 0.313,0.156 10 false *a 0.531,2.927 0.844,3.083 0.313,0.156 10 false *b 0.76,0.844 1.125,1.01 0.365,0.167 10 false W22 2.396,2.125 2.708,2.281 0.313,0.156 10 false A 2.073,2.125 2.385,2.281 0.313,0.156 10 false B 1.021,2.125 1.333,2.281 0.313,0.156 10 false C 0.719,2.125 1.031,2.281 0.313,0.156 10 false D 2.354,2.938 2.729,3.125 0.375,0.188 10 false W21 2.604,1.469 3.167,1.729 0.563,0.26 10 false BCR+ 1.146,1.458 1.708,1.719 0.563,0.26 10 false BCR- 0.99,2.927 1.552,3.188 0.563,0.26 10 false BCR- 0.542,3.333 1.104,3.594 0.563,0.26 10 false BCR+ 2.375,4.26 2.688,4.417 0.313,0.156 10 false *4

*1	No. 2 Side Airbag Sensor RH
*2	No. 4 Side Airbag Sensor RH
*3	No. 2 Floor Wire
*4	Service Wire

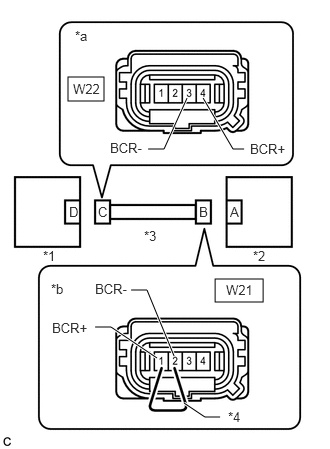

*a	Front view of wire harness connector (to No. 2 Side Airbag Sensor RH)
*b	Front view of wire harness connector (to No. 4 Side Airbag Sensor RH)

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the engine switch on (IG).

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
W22-4 (BCR+) - Body ground	Engine switch on (IG)	Below 1 V
W22-3 (BCR-) - Body ground	Engine switch on (IG)	Below 1 V

Turn the engine switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 1 (BCR+) and 2 (BCR-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
W22-4 (BCR+) - W22-3 (BCR-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
W22-4 (BCR+) - W22-3 (BCR-)	Always	1 MΩ or higher
W22-4 (BCR+) - Body ground	Always	1 MΩ or higher
W22-3 (BCR-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

8.CHECK NO. 2 SIDE AIRBAG SENSOR RH

REPLACE NO. 2 FLOOR WIRE

8.CHECK NO. 2 SIDE AIRBAG SENSOR RH

0.969,1.521 1.24,1.719 0.271,0.198 10 false *1 2.323,1.531 2.594,1.729 0.271,0.198 10 false *2

*1	No. 2 Side Airbag Sensor LH
*2	No. 4 Side Airbag Sensor RH

Connect the connector to the No. 4 side airbag sensor RH.

Interchange the No. 2 side airbag sensor RH with LH and connect the connectors to them.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the engine switch on (IG), and wait for at least 60 seconds.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Body Electrical > SRS Airbag > Clear DTCs: 50002 188

Turn the engine switch off.

Turn the engine switch on (IG), and wait for at least 60 seconds.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Body Electrical > SRS Airbag > Trouble Codes: 50001 188

Result:

Proceed to
DTC B1642 or B1643 is output
DTC B1647 or B1648 is output
DTCs B1642, B1643, B1647 and B1648 are not output

HINT:: Codes other than DTC B1642, B1643, B1647 and B1648 may be output at this time, but they are not related to this check.

Turn the engine switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Return the No. 2 side airbag sensor LH and RH to their original positions and connect the connectors to them.

DTC B1642 or B1643 is output

9.CHECK CONNECTION OF CONNECTOR

DTC B1647 or B1648 is output

REPLACE NO. 2 SIDE AIRBAG SENSOR RH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Rear Pillar)>REMOVAL201906,999999,_58,_079257,_0385611,RM100000001IIS2,

DTCs B1642, B1643, B1647 and B1648 are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_V1,_078841,_0386803,RM100000001GTWY,

9.CHECK CONNECTION OF CONNECTOR

Check that the connector is properly connected to the No. 3 side airbag sensor RH.

Result:

Proceed to
The connector is properly connected
The connector is not properly connected

The connector is properly connected

10.CHECK CONNECTOR

The connector is not properly connected

CONNECT CONNECTOR PROPERLY

10.CHECK CONNECTOR

0.604,1.5 0.917,1.656 0.313,0.156 10 false *1 2.604,1.5 2.917,1.656 0.313,0.156 10 false *2 1.417,1.25 1.729,1.406 0.313,0.156 10 false *3 1.854,1.25 2.167,1.406 0.313,0.156 10 false *4

*1	No. 3 Side Airbag Sensor RH
*2	No. 2 Side Airbag Sensor RH
*3	No. 1 Rear Door Wire
*4	No. 2 Floor Wire

Disconnect the connectors from the No. 2 side airbag sensor RH and No. 3 side airbag sensor RH.

Check that the connector (on the No. 3 side airbag sensor RH side) is not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

11.CHECK NO. 3 SIDE AIRBAG SENSOR RH CIRCUIT

The connector is deformed or damaged

REPLACE NO. 1 REAR DOOR WIRE OR NO. 2 FLOOR WIRE

11.CHECK NO. 3 SIDE AIRBAG SENSOR RH CIRCUIT

0.708,0.802 1.083,1.052 0.375,0.25 2.24,2.906 2.74,3.146 0.5,0.24 1.438,1.51 1.604,1.51 1.604,1.51 1.844,0.979 true 2.479,1.51 2.302,1.51 2.302,1.51 1.99,0.979 true 0.99,3.406 1.156,3.406 1.156,3.406 1.635,3.729 true 1.365,3.021 1.531,3.021 1.531,3.021 1.813,3.708 true 1.917,4.198 2.135,4.344 2.135,4.344 2.292,4.344 true 0.448,2.583 0.76,2.74 0.313,0.156 10 false *1 2.635,2.583 2.948,2.74 0.313,0.156 10 false *2 1.823,2.354 2.135,2.51 0.313,0.156 10 false *4 0.781,0.292 1.094,0.448 0.313,0.156 10 false *a 0.531,2.927 0.844,3.083 0.313,0.156 10 false *b 0.813,0.833 1.156,1.073 0.344,0.24 10 false S7 2.396,2.125 2.708,2.281 0.313,0.156 10 false A 2.073,2.125 2.385,2.281 0.313,0.156 10 false B 1.021,2.125 1.333,2.281 0.313,0.156 10 false E 0.719,2.125 1.031,2.281 0.313,0.156 10 false F 2.365,2.938 2.76,3.125 0.396,0.188 10 false W22 2.563,1.427 3.125,1.688 0.563,0.26 10 false BDR+ 1.052,1.417 1.615,1.677 0.563,0.26 10 false BDR- 0.99,2.927 1.552,3.188 0.563,0.26 10 false BDR- 0.542,3.333 1.104,3.594 0.563,0.26 10 false BDR+ 2.375,4.26 2.688,4.417 0.313,0.156 10 false *5 1.469,2.125 1.781,2.281 0.313,0.156 10 false D 1.625,2.125 1.938,2.281 0.313,0.156 10 false C 1.219,2.354 1.531,2.51 0.313,0.156 10 false *3

*1	No. 3 Side Airbag Sensor RH
*2	No. 2 Side Airbag Sensor RH
*3	No. 1 Rear Door Wire
*4	No. 2 Floor Wire
*5	Service Wire

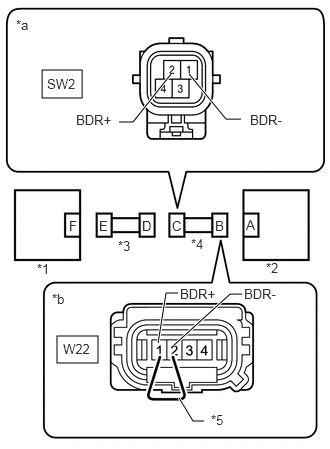

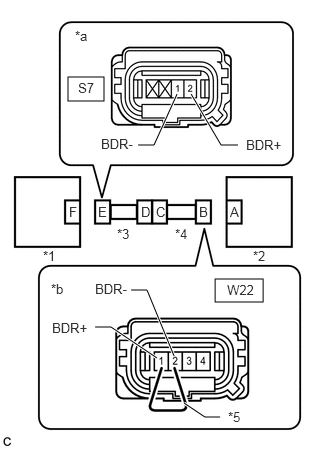

*a	Front view of wire harness connector (to No. 3 Side Airbag Sensor RH)
*b	Front view of wire harness connector (to No. 2 Side Airbag Sensor RH)

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the engine switch on (IG).

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
S7-2 (BDR+) - Body ground	Engine switch on (IG)	Below 1 V
S7-1 (BDR-) - Body ground	Engine switch on (IG)	Below 1 V

Turn the engine switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 1 (BDR+) and 2 (BDR-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
S7-2 (BDR+) - S7-1 (BDR-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
S7-2 (BDR+) - S7-1 (BDR-)	Always	1 MΩ or higher
S7-2 (BDR+) - Body ground	Always	1 MΩ or higher
S7-1 (BDR-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

12.CHECK NO. 3 SIDE AIRBAG SENSOR RH

13.CHECK CONNECTORS

12.CHECK NO. 3 SIDE AIRBAG SENSOR RH

0.729,1.563 1,1.74 0.271,0.177 10 false *1 2.583,1.542 2.896,1.75 0.313,0.208 10 false *2

*1	No. 3 Side Airbag Sensor LH
*2	No. 2 Side Airbag Sensor RH

Connect the connector to the No. 2 side airbag sensor RH.

Interchange the No. 3 side airbag sensor RH with LH and connect the connectors to them.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the engine switch on (IG), and wait for at least 60 seconds.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Body Electrical > SRS Airbag > Clear DTCs: 50002 188

Turn the engine switch off.

Turn the engine switch on (IG), and wait for at least 60 seconds.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Body Electrical > SRS Airbag > Trouble Codes: 50001 188

Result:

Proceed to
DTC B1642 or B1643 is output
DTC B1647 or B1648 is output
DTCs B1642, B1643, B1647 and B1648 are not output

HINT:: Codes other than DTC B1642, B1643, B1647 and B1648 may be output at this time, but they are not related to this check.

Turn the engine switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Return the No. 3 side airbag sensor LH and RH to their original positions and connect the connectors to them.

DTC B1642 or B1643 is output

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL201906,999999,_58,_079257,_0384942,RM100000001IN22,

DTC B1647 or B1648 is output

REPLACE NO. 3 SIDE AIRBAG SENSOR RH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Rear Door)>REMOVAL201906,999999,_58,_079257,_0384946,RM100000001IIRF,

DTCs B1642, B1643, B1647 and B1648 are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_V1,_078841,_0386803,RM100000001GTWY,

13.CHECK CONNECTORS

0.458,1.479 0.771,1.635 0.313,0.156 10 false *1 2.823,1.5 3.135,1.656 0.313,0.156 10 false *2 1.25,1.229 1.563,1.385 0.313,0.156 10 false *3 2.021,1.24 2.333,1.396 0.313,0.156 10 false *4

*1	No. 3 Side Airbag Sensor RH
*2	No. 2 Side Airbag Sensor RH
*3	No. 1 Rear Door Wire
*4	No. 2 Floor Wire

Disconnect the connectors from the No. 2 floor wire and No. 1 rear door wire.

Check that the connectors (on the No. 2 floor wire side and No. 1 rear door wire side) are not damaged.

Result:

Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged

The connectors are not deformed or damaged

14.CHECK NO. 2 FLOOR WIRE

The connectors are deformed or damaged

REPLACE NO. 2 FLOOR WIRE OR NO. 1 REAR DOOR WIRE

14.CHECK NO. 2 FLOOR WIRE

0.594,3.5 1.021,3.781 0.427,0.281 0.438,0.729 0.854,1.021 0.417,0.292 1.854,3.052 1.729,3.052 1.729,3.052 1.646,3.573 true 2.521,3.063 2.396,3.063 2.396,3.063 1.813,3.594 true 2.125,4.385 2.01,4.385 2.01,4.385 1.865,4.146 true 2.51,1.24 2.354,1.24 2.354,1.24 1.969,0.771 true 1.24,1.271 1.385,1.271 1.385,1.271 1.781,0.771 true 0.167,0.177 0.479,0.385 0.313,0.208 10 false *a 0.49,0.792 1.063,1.01 0.573,0.219 10 false SW2 2.563,2.26 2.781,2.479 0.219,0.219 10 false A 2.24,2.271 2.458,2.49 0.219,0.219 10 false B 1.792,2.271 2.01,2.49 0.219,0.219 10 false C 1.479,2.271 1.698,2.49 0.219,0.219 10 false D 1.031,2.271 1.25,2.49 0.219,0.219 10 false E 0.719,2.271 0.938,2.49 0.219,0.219 10 false F 0.385,2.719 0.698,2.927 0.313,0.208 10 false *1 1.229,2.479 1.542,2.688 0.313,0.208 10 false *3 2.771,2.708 3.083,2.917 0.313,0.208 10 false *2 1.99,2.458 2.302,2.667 0.313,0.208 10 false *4 0.542,3.031 0.854,3.24 0.313,0.208 10 false *b 0.656,3.552 1,3.76 0.344,0.208 10 false W22 2.604,1.167 3.021,1.479 0.417,0.313 10 false BDR- 0.792,1.167 1.302,1.375 0.51,0.208 10 false BDR+ 1.875,2.979 2.385,3.188 0.51,0.208 10 false BDR+ 2.542,2.979 3.052,3.188 0.51,0.208 10 false BDR- 2.198,4.292 2.51,4.5 0.313,0.208 10 false *5

*1	No. 3 Side Airbag Sensor RH
*2	No. 2 Side Airbag Sensor RH
*3	No. 1 Rear Door Wire
*4	No. 2 Floor Wire
*5	Service Wire
*a	Front view of wire harness connector (to No. 1 Rear Door Wire)
*b	Front view of wire harness connector (to No. 2 Side Airbag Sensor RH)

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the engine switch on (IG).

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
SW2-2 (BDR+) - Body ground	Engine switch on (IG)	Below 1 V
SW2-1 (BDR-) - Body ground	Engine switch on (IG)	Below 1 V

Turn the engine switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 1 (BDR+) and 2 (BDR-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
SW2-2 (BDR+) - SW2-1 (BDR-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
SW2-2 (BDR+) - SW2-1 (BDR-)	Always	1 MΩ or higher
SW2-2 (BDR+) - Body ground	Always	1 MΩ or higher
SW2-1 (BDR-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

REPLACE NO. 1 REAR DOOR WIRE

REPLACE NO. 2 FLOOR WIRE
