SUPPLEMENTAL RESTRAINT SYSTEMS SIDE AIRBAG SENSOR(for Rear Pillar) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during No. 2 side airbag sensor or No. 4 side airbag sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

Use the same procedure for the RH and LH sides.

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 73370E 3.REMOVE REAR SEAT OUTER BELT ASSEMBLY LH (for Van)

Remove the rear seat outer belt assembly LH retractor.

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Van)>REMOVAL201902,999999,_58,_078602,_0387530,RM100000001GXU9_01_0269,

Hide Display 62632D 4.REMOVE REAR QUARTER TRIM BOARD LH (for Van)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>SIDE PANEL>REMOVAL201906,999999,_58,_078375,_0381232,RM100000001JPSZ_02_0004,

Hide Display 5.REMOVE REAR NO. 3 SEAT ASSEMBLY (for Wagon)

for 60/40 Split Seat Type 40 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>REMOVAL201906,999999,_58,_078601,_0396039,RM100000001IFKS,

for 60/40 Split Seat Type 60 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL201906,999999,_58,_078601,_0396040,RM100000001IFKX,

Hide Display 6.REMOVE REAR SEAT ASSEMBLY (for Wagon)

for Folding Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>REMOVAL201906,999999,_58,_078601,_0396039,RM100000001IFKS,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL201906,999999,_58,_078601,_0396040,RM100000001IFKX,

Hide Display 73233 7.REMOVE OUTER LAP BELT ANCHOR COVER (for Wagon, w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>REMOVAL201906,999999,_58,_078602,_0398109,RM100000001IT6D_09_0007,

Hide Display 73570A 8.REMOVE NO. 3 SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR) (for Wagon, w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>REMOVAL201906,999999,_58,_078602,_0398109,RM100000001IT6D_09_0004,

Hide Display 67881A 9.REMOVE BACK DOOR WEATHERSTRIP (for Wagon)

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR WEATHERSTRIP>REMOVAL201902,999999,_59,_078503,_0385655,RM100000001GNFV,

Hide Display 67935 10.REMOVE BACK DOOR SCUFF PLATE (for Wagon)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0027,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0027,

Hide Display 67872A 11.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP LH (for Wagon)

Remove the rear side of the No. 1 slide door weatherstrip LH so that the rear quarter trim board assembly LH can be removed.

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL201906,999999,_59,_078503,_0397541,RM100000001IPZ4_02_0010,

Hide Display 62520B 12.REMOVE QUARTER TRIM PANEL ASSEMBLY LH (for Wagon)

HINT:: When removing and installing the No. 2 side airbag sensor or No. 4 side airbag sensor installed on the driver side, perform this procedure.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0004,

Hide Display 62510M 13.REMOVE QUARTER TRIM PANEL ASSEMBLY RH (for Wagon)

HINT:: When removing and installing the No. 2 side airbag sensor or No. 4 side airbag sensor installed on the passenger side, perform this procedure.; Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0007,

Hide Display 89831C 14.REMOVE NO. 2 SIDE AIRBAG SENSOR

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; ·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201902,999999,_58,_079257,_0385034,RM100000001GNBX,

·

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

for Van:

Remove the bolt.

NOTICE:: ·

Loosen the bolt while holding the No. 2 side airbag sensor because the No. 2 side airbag sensor claw is easily damaged.

·

If the No. 2 side airbag sensor has been dropped, replace it with a new one.

ii.

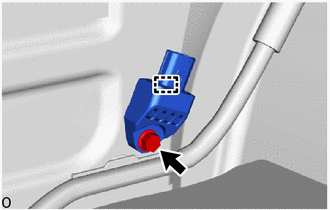

Detach the claw and remove the No. 2 side airbag sensor.

for Wagon:

Remove the bolt.

NOTICE:: ·

Loosen the bolt while holding the No. 2 side airbag sensor because the No. 2 side airbag sensor guide is easily damaged.

·

If the No. 2 side airbag sensor has been dropped, replace it with a new one.

ii.

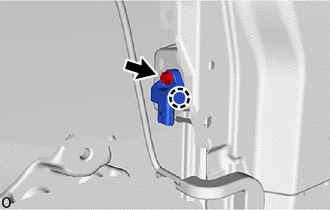

Detach the guide and remove the No. 2 side airbag sensor.

Hide Display 89831J 15.REMOVE NO. 4 SIDE AIRBAG SENSOR (for Wagon)

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

Remove the bolt.

NOTICE:: ·

Loosen the bolt while holding the No. 4 side airbag sensor because the No. 4 side airbag sensor guide is easily damaged.

·

If the No. 4 side airbag sensor has been dropped, replace it with a new one.

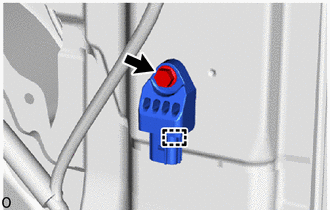

Detach the guide to remove the No. 4 side airbag sensor.
