SUPPLEMENTAL RESTRAINT SYSTEMS REAR FLOOR AIRBAG SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the rear floor side airbag sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Panoramic view monitor system	(201906,999999,_56,_079315,_0396274,RM100000001IGR3,)

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>PRECAUTION201906,999999,_58,_079257,_0396679,RM100000001IJ80,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE REAR NO. 3 SEAT ASSEMBLY

for 60/40 Split Seat Type 40 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>REMOVAL201906,999999,_58,_078601,_0396039,RM100000001IFKS,

for 60/40 Split Seat Type 60 Side:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL201906,999999,_58,_078601,_0396040,RM100000001IFKX,

Hide Display 4.REMOVE REAR SEAT ASSEMBLY

for Folding Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Folding Type)>REMOVAL201902,999999,_58,_078601,_0382458,RM100000001G55U,

for Manual Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 40 Side)>REMOVAL201906,999999,_58,_078601,_0396039,RM100000001IFKS,

for Power Captain Seat:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for 60/40 Split Seat Type 60 Side)>REMOVAL201906,999999,_58,_078601,_0396040,RM100000001IFKX,

Hide Display 73233 5.REMOVE OUTER LAP BELT ANCHOR COVER (w/ Seat Belt)

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>REMOVAL201906,999999,_58,_078602,_0398109,RM100000001IT6D_09_0007,

Hide Display 73560A 6.REMOVE NO. 3 SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR) (w/ Seat Belt)

HINT:: Use the same procedure described for the LH side.; Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY (for Wagon)>REMOVAL201906,999999,_58,_078602,_0398109,RM100000001IT6D_09_0004,

Hide Display 67881A 7.REMOVE BACK DOOR WEATHERSTRIP

Click hereVehicle Exterior>DOOR / HATCH>BACK DOOR WEATHERSTRIP>REMOVAL201902,999999,_59,_078503,_0385655,RM100000001GNFV,

Hide Display 67935 8.REMOVE BACK DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201906,202208,_58,_078375,_0381233,RM100000001IXV4_02_0027,202208,999999,_58,_078375,_0381233,RM1000000024I19_02_0027,

Hide Display 67871E 9.REMOVE NO. 1 SLIDE DOOR WEATHERSTRIP RH

Remove the rear side of the No. 1 slide door weatherstrip RH so that the rear quarter trim board assembly RH can be removed.

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>REMOVAL201906,999999,_59,_078503,_0397541,RM100000001IPZ4_02_0010,

Hide Display 62510M 10.REMOVE QUARTER TRIM PANEL ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>REMOVAL201906,999999,_58,_078375,_0396474,RM100000001IHQ5_02_0007,

Hide Display 11.REMOVE REAR SEAT TRACK SLIDE STOPPER

Click hereVehicle Interior>SEAT>SEAT RAIL>REMOVAL201906,999999,_58,_078601,_0396334,RM100000001IH07_01_0007,

Hide Display 58595 12.REMOVE NO. 3 FLOOR CARPET MOULDING NO. 1

Click hereVehicle Interior>SEAT>SEAT RAIL>REMOVAL201906,999999,_58,_078601,_0396334,RM100000001IH07_01_0039,

Hide Display 58595 13.REMOVE NO. 3 FLOOR CARPET MOULDING NO. 2

Click hereVehicle Interior>SEAT>SEAT RAIL>REMOVAL201906,999999,_58,_078601,_0396334,RM100000001IH07_01_0040,

Hide Display 14.REMOVE SEAT TRACK RAIL PROTECTOR

Click hereVehicle Interior>SEAT>SEAT RAIL>REMOVAL201906,999999,_58,_078601,_0396334,RM100000001IH07_01_0042,

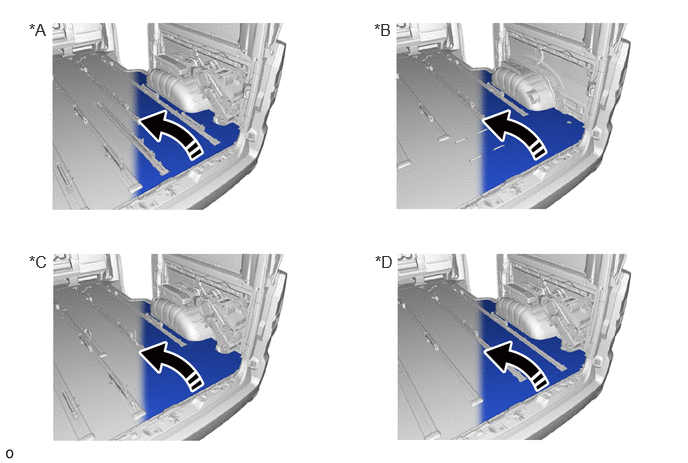

Hide Display 58570C 15.REMOVE REAR FLOOR CARPET ASSEMBLY

Fold back the rear floor carpet assembly as shown in the illustration.

0.302,0.208 0.74,0.521 0.438,0.313 12 false *A 3.896,0.208 4.333,0.521 0.438,0.313 12 false *B 0.302,2.625 0.74,2.938 0.438,0.313 12 false *C 3.906,2.625 4.344,2.938 0.438,0.313 12 false *D

*A	for Type A	*B	for Type B
*C	for Type C	*D	for Type D
	Fold Back	-	-

Hide Display 58513F 16.REMOVE NO. 3 FLOOR MAT

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR (for Rear Floor)>REMOVAL201906,999999,_58,_078378,_0396479,RM100000001IHQO_02_0015,

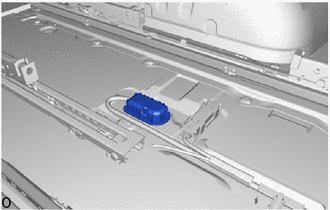

Hide Display 89839A 17.REMOVE REAR FLOOR SIDE AIRBAG SENSOR COVER

Remove the rear floor side airbag sensor cover.

NOTICE:: If the rear floor side airbag sensor cover is removed, do not reuse it.

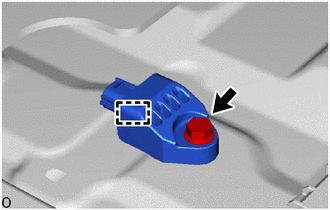

Hide Display 89837A 18.REMOVE REAR FLOOR SIDE AIRBAG SENSOR

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR201906,999999,_58,_079257,_0396679,RM100000001IJ8B,

Remove the bolt.

NOTICE:: ·

Loosen the bolt while holding the rear floor side airbag sensor because the rear floor side airbag sensor guide is easily damaged.

·

If the rear floor side airbag sensor has been dropped, replace it with a new one.

Detach the guide to remove the rear floor side airbag sensor.

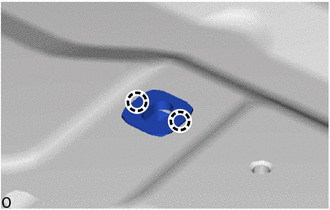

Hide Display 19.REMOVE CLIP

NOTICE:: If the clip is removed, do not reuse it.

HINT:: Perform this procedure only when replacement of the clip is necessary.

Detach claw and remove the clip.
