AUDIO / VIDEO AUDIO AND VISUAL SYSTEM(for Radio and Display Type) B15C0 GPS Antenna Connection Malfunction(short) B15C1 GPS Antenna Connection Malfunction(break)
DESCRIPTION
These DTCs are stored when a malfunction occurs in the navigation antenna assembly.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| B15C0 | GPS Antenna Connection Malfunction(short) | Navigation antenna malfunction | ·
Navigation antenna assembly ·
Antenna cord sub-assembly ·
Antenna Divider* ·
Radio and Display Receiver Assembly |
| B15C1 | GPS Antenna Connection Malfunction(break) | Navigation antenna power source malfunction | ·
Navigation antenna assembly ·
Antenna cord sub-assembly ·
Antenna Divider* ·
Radio and Display Receiver Assembly |
*: w/ Telematics Transceiver

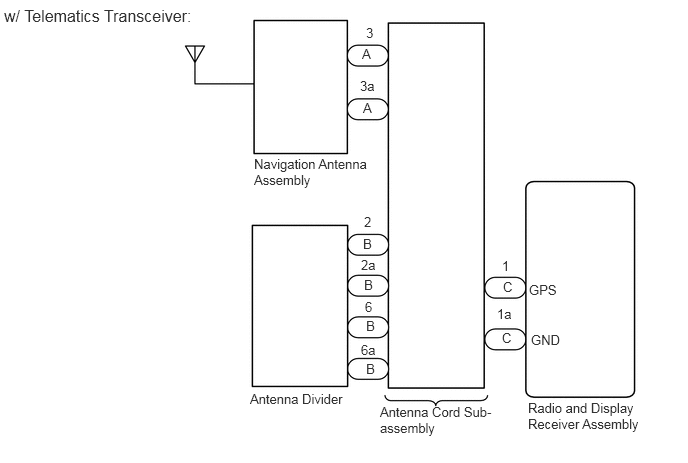

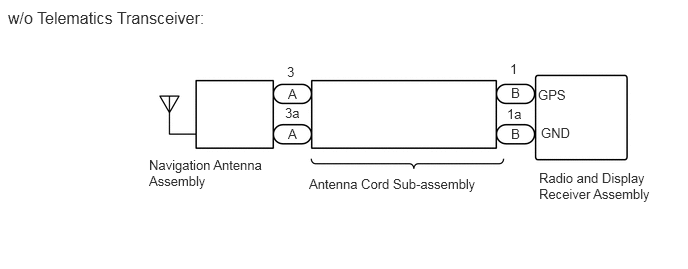

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- NOTICE:
- ·
Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.
·When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occur:
-A communication malfunction DTC may be stored.
-The radio and display receiver assembly may not operate normally.
·Check that the wire harness is properly installed and does not have any sharp bends, pinching or loose connections.
PROCEDURE
Clear the DTCs.
- Body Electrical > Navigation System > Clear DTCs
- 50002 212
Recheck for DTCs and check that no DTCs are output.
- Body Electrical > Navigation System > Trouble Codes
- 50001 212
- OK:
No DTCs are output.
- Result:
Proceed to OK NG
OK
NG
Choose the model to be inspected.
- Result:
Result Proceed to w/o Telematics Transceiver A w/ Telematics Transceiver B
A
B
Remove the navigation antenna assembly.
- Result:
Proceed to OK NG
OK
NG

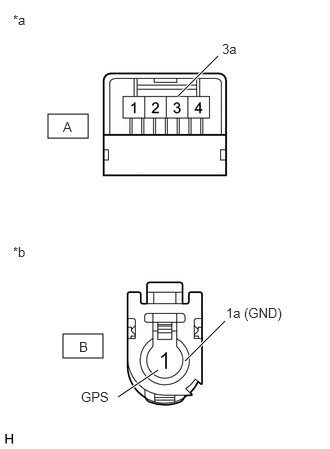

| *a | Front view of wire harness connector
(to Navigation Antenna Assembly) |
| *b | Front view of wire harness connector
(to Radio and Display Receiver Assembly) |
Disconnect the antenna connector from the radio and display receiver assembly.
Disconnect the antenna connector from the navigation antenna assembly.
- Standard Resistance:
Tester Connection Condition Specified Condition A-3 - B-1 (GPS) Always Below 1 Ω A-3a - B-1a (GND) Always Below 1 Ω A-3 - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
Remove the navigation antenna assembly.
- Result:
Proceed to OK NG
OK
NG
| *a | Component without harness connected
(Antenna Divider) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 6 - 2 Always 10 kΩ or higher 2 - 2a Always 243 to 267 Ω 6 - 6a Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG

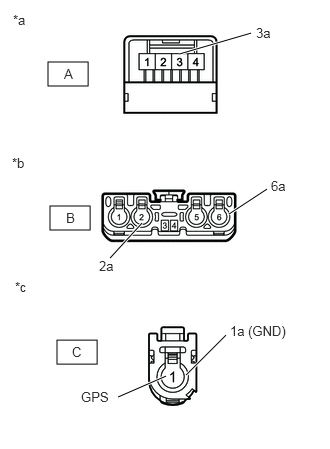

| *a | Front view of wire harness connector
(to Navigation Antenna Assembly) |
| *b | Front view of wire harness connector
(to Antenna Divider) |
| *c | Front view of wire harness connector
(to Radio and Display Receiver Assembly) |
Disconnect the antenna connector from the radio and display receiver assembly.
Disconnect the antenna connector from the antenna divider.
Disconnect the antenna connector from the navigation antenna assembly.
- Standard Resistance:
Tester Connection Condition Specified Condition A-3 - B-6 Always Below 1 Ω A-3a - B-6a Always Below 1 Ω B-2 - C-1 (GPS) Always Below 1 Ω B-2a - C-1a (GND) Always Below 1 Ω A-3 - Body ground Always 10 kΩ or higher B-2 - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
Replace the antenna divider with a new or known good one.
Clear the DTCs.
- Body Electrical > Navigation System > Clear DTCs
- 50002 212
Recheck for DTCs and check that no DTCs are output.
- Body Electrical > Navigation System > Trouble Codes
- 50001 212
- OK:
No DTCs are output.
- Result:
Proceed to OK NG
OK
NG
