RM35X0E _56 Audio / Visual / Telematics _078380 TELEMATICS _0396427 ANTENNA DIVIDER A

TELEMATICS  ANTENNA DIVIDER  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the antenna divider removal/installation are shown below.

Replacement Part or Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Disconnected/Reconnected to Negative (-) Battery Terminal Memorize steering angle neutral point Parking assist monitor system (Click here)
Panoramic view monitor system (Click here)

HINT:

When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Stop and start system

Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power slide door system Fully close the slide door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the slide door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL


CAUTION:
B394718

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



Hide 86681C 5.REMOVE ANTENNA DIVIDER

a.

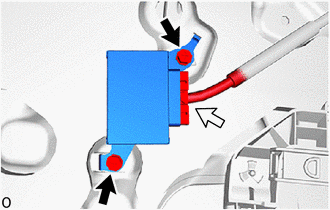

E420276C04
0,0 0,0 false
V100135

Screw
V100136

Connector


Disconnect the connector and remove the 2 screws.


b.

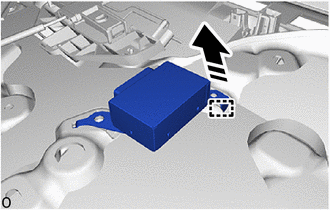

E420277C01
0,0 0,0 false
V113147

Remove in this Direction


Lift up in the direction as shown in the illustration and detach the guide.


c.

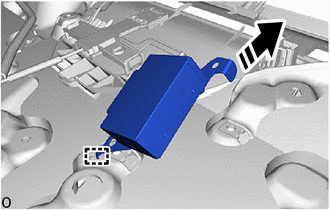

E420278C01
0,0 0,0 false
V113147

Remove in this Direction


Pull out in the direction as shown in the illustration, detach the guide and remove the antenna divider.
