The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the quick heater assembly removal/installation are shown below.
| Replacement part or procedure | Necessary procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) battery terminal | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,202310,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | ( 201902,202310,_56,_079315,_0385736,RM100000001GNRA,)
|
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
|
*: w/ Stop and start system |
||
| Stop and start system* | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). | ( 201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
|
| Lane control system | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
|
| Pre-collision system | ||
Learning completes when vehicle is operated normally
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power slide door system | Fully close the slide door by hand.
|
( 201902,202310,_59,_078503,_0381017,RM100000001FWXM,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
Use the same procedure for RHD and LHD vehicles.
The procedure listed below is for LHD vehicles.
1. PRECAUTION
Be sure to read Precaution thoroughly before servicing.
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.
67912A
3.REMOVE FRONT DOOR OUTSIDE SCUFF PLATE LH
67914B
4.REMOVE FRONT DOOR SCUFF PLATE LH
62112
5.REMOVE COWL SIDE TRIM BOARD LH
55011A
6.REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
55318C
7.REMOVE INSTRUMENT SIDE PANEL LH
55641
8.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER
53601
9.REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
77306
10.REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
55432D
11.REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
55044C
12.REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
55433B
13.REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
55445B
14.REMOVE INSTRUMENT PANEL FINISH PLATE (w/o Knee Airbag)
55313
15.REMOVE LOWER INSTRUMENT PANEL LH (w/o Knee Airbag)
73900
16.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Knee Airbag)
58810J
17.REMOVE CONSOLE BOX ASSEMBLY (w/ Console Box)
58533C
18.REMOVE CENTER FLOOR CARPET COVER RH
58534E
19.REMOVE CENTER FLOOR CARPET COVER LH
55646
20.REMOVE NO. 3 INSTRUMENT PANEL UNDER COVER
33504F
21.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
58840Q
22.REMOVE SHIFTING HOLE COVER ASSEMBLY (for Manual Transmission)
55405B
23.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)
55900
24.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)
55434B
25.REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL
55414A
26.REMOVE INSTRUMENT CLUSTER FINISH PANEL END (for Semi-trim)
55413D
27.REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
87211
28.REMOVE NO. 1 AIR DUCT
55306A
29.REMOVE NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY
30.REMOVE TRANSMISSION INSTRUMENT PANEL SHIFT ASSEMBLY (for Automatic Transmission)
87710G
31.REMOVE QUICK HEATER ASSEMBLY
|
Screw |
|
Connector |
|
Remove in this Direction |

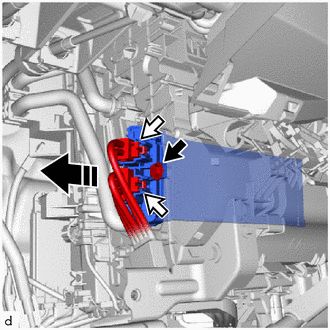

Detach the clamp and disconnect the 2 connectors.
Remove the screw and quick heater assembly as shown in the illustration.

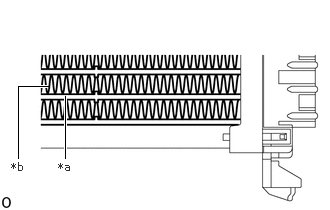

| *a | Element |
| *b | Fin |
Do not hold the quick heater assembly by the element or fin. Also, do not damage the quick heater assembly.
Foul odors may occur due to oil adhering to the quick heater assembly.
