HEATING / AIR CONDITIONING BLOWER RESISTOR(for Rear Cooler) INSTALLATION

PROCEDURE

Hide Display 87138G 1.INSTALL REAR COOLER BLOWER RESISTOR

HINT:: Use the same procedure for the other side.

a.

for Standard Roof:

i.

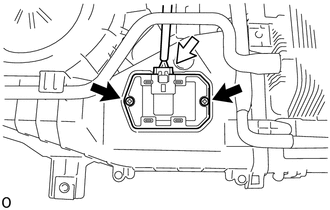

E415148C03

0,0 0,0 false

	Screw
	Connector

Install the rear cooler blower resistor with the 2 screws.

ii.

Connect the connector.

b.

for High Roof:

i.

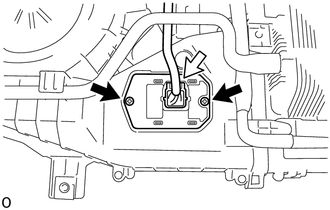

E417495C01

0,0 0,0 false

	Screw
	Connector

Install the rear cooler blower resistor with the 2 screws.

ii.

Connect the connector.

Hide Display 2.INSTALL ROOF HEADLINING ASSEMBLY

·

for Wagon:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Wagon)>INSTALLATION201906,202310,_58,_078375,_0396474,RM100000001IHQ6,

·

for Semi-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>INSTALLATION201906,202208,_58,_078375,_0380060,RM100000001IXV3,202208,202310,_58,_078375,_0380060,RM1000000024I17,

·

for Full-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5,202208,202310,_58,_078375,_0381233,RM1000000024I1A,
