RM35X0E _58 Vehicle Interior _078378 THEFT DETERRENT / KEYLESS ENTRY _0396477 ELECTRICAL KEY OSCILLATOR(for Instrument Panel Side) A

THEFT DETERRENT / KEYLESS ENTRY ELECTRICAL KEY OSCILLATOR(for Instrument Panel Side) INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

PROCEDURE

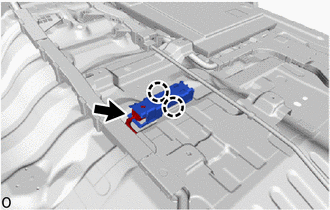

Hide Display 899A0 1.INSTALL NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

NOTICE:: Do not reuse parts if dropped or subjected to any strong impact.

Connect the connector.

Attach the claw to install the No. 1 indoor electrical key antenna assembly.

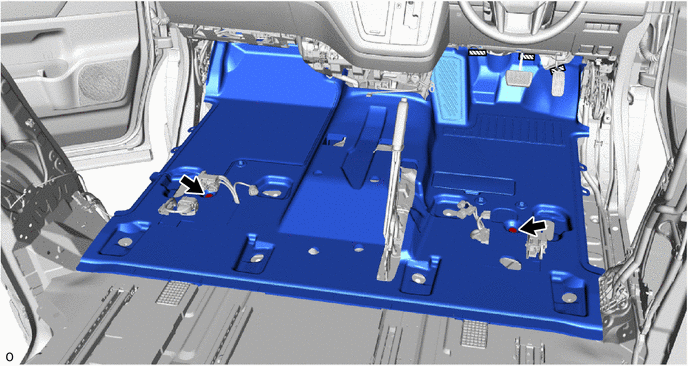

Hide Display 58510D 2.INSTALL FRONT FLOOR CARPET ASSEMBLY

for LHD:

Attach each fastener to install the front floor carpet assembly.

ii.

Install the 2 clips.

0,0 0,0 false

Fastener

for RHD:

Attach each fastener to install the front floor carpet assembly.

ii.

Install the 2 clips.

0,0 0,0 false

Fastener

Hide Display 87212F 3.INSTALL REAR NO. 2 AIR DUCT (w/ Rear Foot Duct)

for LHD:

Click hereVehicle Interior>HEATING / AIR CONDITIONING>FRONT AIR CONDITIONING UNIT (for LHD)>INSTALLATION201906,999999,_58,_079316,_0384874,RM100000001IHVW_02_0098,

for RHD:

Click hereVehicle Interior>HEATING / AIR CONDITIONING>FRONT AIR CONDITIONING UNIT (for RHD)>INSTALLATION201906,202005,_58,_079316,_0384875,RM100000001IHW5_02_0074,202005,999999,_58,_079316,_0384875,RM100000001MHUK_02_0074,

Hide Display 87212G 4.INSTALL REAR NO. 3 AIR DUCT (w/ Rear Foot Duct)

for LHD:

Click hereVehicle Interior>HEATING / AIR CONDITIONING>FRONT AIR CONDITIONING UNIT (for LHD)>INSTALLATION201906,999999,_58,_079316,_0384874,RM100000001IHVW_02_0099,

for RHD:

Click hereVehicle Interior>HEATING / AIR CONDITIONING>FRONT AIR CONDITIONING UNIT (for RHD)>INSTALLATION201906,202005,_58,_079316,_0384875,RM100000001IHW5_02_0073,202005,999999,_58,_079316,_0384875,RM100000001MHUK_02_0073,

Hide Display 55646 5.INSTALL NO. 3 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0025,

Hide Display 58534E 6.INSTALL CENTER FLOOR CARPET COVER LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0028,

Hide Display 58533C 7.INSTALL CENTER FLOOR CARPET COVER RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0002,

Hide Display 55642 8.INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0007,

Hide Display 55641 9.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0038,

Hide Display 62413A 10.INSTALL LOWER CENTER PILLAR GARNISH RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0032,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0032,

Hide Display 62414A 11.INSTALL LOWER CENTER PILLAR GARNISH LH

HINT:: Use the same procedure described for the RH side.

Hide Display 67871E 12.INSTALL NO. 1 SLIDE DOOR WEATHERSTRIP RH

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR OPENING TRIM WEATHERSTRIP (for Wagon)>INSTALLATION201906,999999,_59,_078503,_0397541,RM100000001IPZ5_02_0003,

Hide Display 67872A 13.INSTALL NO. 1 SLIDE DOOR WEATHERSTRIP LH

HINT:: Use the same procedure described for the RH side.

Hide Display 62312B 14.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR OPENING TRIM WEATHERSTRIP>INSTALLATION201902,999999,_59,_078503,_0385652,RM100000001GNFM_02_0001,

Hide Display 62311B 15.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

HINT:: Use the same procedure described for the LH side.

Hide Display 74680 16.INSTALL PILLAR ASSIST GRIP ASSEMBLY B

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0033,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0033,

Hide Display 74617A 17.INSTALL ASSIST GRIP PLUG

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0034,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0034,

Hide Display 67917C 18.INSTALL REAR DOOR SCUFF PLATE RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0035,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0035,

Hide Display 67918D 19.INSTALL REAR DOOR SCUFF PLATE LH

HINT:: Use the same procedure described for the RH side.

Hide Display 73220 20.INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH (FLOOR ANCHOR)

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Wagon)>INSTALLATION201906,999999,_58,_078602,_0398106,RM100000001IT6A_01_0120,

Hide Display 73210 21.INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH (FLOOR ANCHOR)

HINT:: Use the same procedure described for the LH side.

Hide Display 73233 22.INSTALL OUTER LAP BELT ANCHOR COVER

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY (for Wagon)>INSTALLATION201906,999999,_58,_078602,_0398106,RM100000001IT6A_01_0122,

Hide Display 62112 23.INSTALL COWL SIDE TRIM BOARD LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0045,

Hide Display 62111C 24.INSTALL COWL SIDE TRIM BOARD RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201906,999999,_58,_078375,_0380058,RM100000001IHP7_02_0044,

Hide Display 67914B 25.INSTALL FRONT DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0049,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0049,

Hide Display 67912A 26.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201906,202208,_58,_078375,_0381233,RM100000001IXV5_01_0050,202208,999999,_58,_078375,_0381233,RM1000000024I1A_01_0050,

Hide Display 67913B 27.INSTALL FRONT DOOR SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 67911B 28.INSTALL FRONT DOOR OUTSIDE SCUFF PLATE RH

HINT:: Use the same procedure described for the LH side.

Hide Display 29.INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET (for 12 Speakers)

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>STEREO COMPONENT AMPLIFIER>INSTALLATION201906,999999,_56,_078377,_0396428,RM100000001IHI2_01_0004,

Hide Display 86183E 30.INSTALL AUDIO AMPLIFIER COVER (for 12 Speakers)

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>STEREO COMPONENT AMPLIFIER>INSTALLATION201906,999999,_56,_078377,_0396428,RM100000001IHI2_01_0005,

Hide Display 31.INSTALL CONSOLE BOX ASSEMBLY (w/ Console Box)

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION201906,999999,_58,_078375,_0380059,RM100000001IHPH,

Hide Display 32.INSTALL FRONT SEAT ASSEMBLY LH

for Power Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>INSTALLATION201906,999999,_58,_078601,_0396271,RM100000001IGPO,

for Separate Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381328,RM100000001J8ZE,

for Sliding Bench Seat Type:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Sliding Bench Seat Type)>INSTALLATION201906,999999,_58,_078601,_0381329,RM100000001ITAY,

Hide Display 33.INSTALL FRONT SEAT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 34. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 35. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>DTC CHECK / CLEAR201906,999999,_58,_079257,_0396679,RM100000001IJ88,

Hide Display 36.CHECK SRS WARNING LIGHT (w/ Front Seat Side Airbag)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type C:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type C)>OPERATION CHECK201906,999999,_58,_079257,_0396679,RM100000001IJ85,

Hide Display 37.INSPECT SEAT BELT WARNING SYSTEM (w/ Front Seat Side Airbag)

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201906,999999,_58,_078602,_0385912,RM100000001IZZ0,

Hide Display 38.INSPECT FRONT SEAT ASSEMBLY (for Power Seat)

Click hereVehicle Interior>SEAT>FRONT POWER SEAT CONTROL SYSTEM>OPERATION CHECK201906,202208,_58,_078601,_0396712,RM100000001IJIB,202208,999999,_58,_078601,_0396712,RM10000000250KO,
