AUDIO / VIDEO  AMPLIFIER ANTENNA  INSTALLATION


PROCEDURE

Hide 86300B 1.INSTALL NO. 1 AMPLIFIER ANTENNA ASSEMBLY

a.

for Standard Roof:

i.

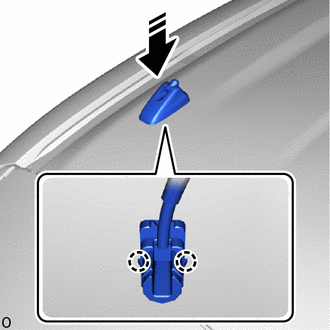

E404884C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the No. 1 amplifier antenna assembly as shown in the illustration.



b.

for High Roof:

i.

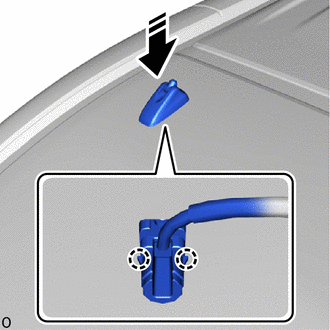

E404891C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the No. 1 amplifier antenna assembly as shown in the illustration.



c.

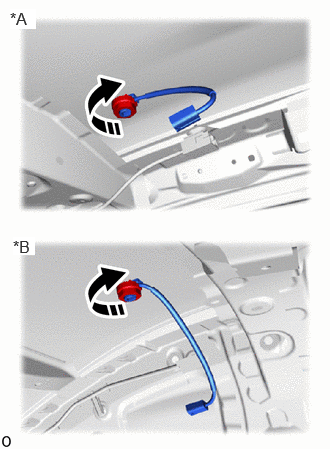

E404882C01
0.104,0.094 0.375,0.302 0.271,0.208 12 true *A 0.135,2.469 0.365,2.656 0.229,0.188 12 true *B
*A for Standard Roof
*B for High Roof
V113147

Install in this Direction


Install the antenna nut.

Torque:
4.5 N*m (46 kgf*cm, 40 in.*lbf)


d.
E404880C02
0.073,0.063 0.302,0.25 0.229,0.188 12 true *A 0.125,2.51 0.396,2.688 0.271,0.177 12 true *B
*A for Standard Roof
*B for High Roof


Connect the connector.


Hide 5. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
