AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  AUTOMATIC TRANSMISSION SYSTEM(for 7GR-FKS)  P170300  AT Solenoid Output Malfunction


DESCRIPTION

The ECM detects an erroneous downshift output to the automatic transmission or a gear shifting malfunction.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P170300 AT Solenoid Output Malfunction One of the following conditions is met (1 trip detection logic):
·

The turbine speed is equal to or less than the 2nd gear synchronized speed when starting to shift gears in D, the output shaft speed is 1580 rpm or more when shifting between 2nd and 3rd gears, 2nd and 4th gears or 3rd and 4th gears, and the difference between the 1st gear synchronized speed and turbine speed is 10 rpm or less

·

The turbine speed is equal to or less than the 2nd gear synchronized speed when starting to shift gears in D, and the turbine speed is 6300 rpm or more when shifting between 2nd and 3rd gears, 2nd and 4th gears or 3rd and 4th gears

·

The output shaft speed meets one of the following conditions when downshifting to 1st, 2nd or 3rd gear

-

1st gear: 1250 rpm or more

-

2nd gear: 2870 rpm or more

-

3rd gear: 4030 rpm or more



·

Wire harness or connector

·

Transmission revolution sensor (NT)

·

Transmission revolution sensor (SP2)

·

Transmission wire

·

Shift solenoid valve SL1

·

Shift solenoid valve SL2

·

Shift solenoid valve SL3

·

Shift solenoid valve SL4

·

Shift solenoid valve SLU

·

Shift solenoid valve SL

·

ECM

·

Transmission valve body assembly

·

Torque converter assembly

·

Automatic transmission assembly


Comes on DTC stored SAE Code:
P1703

DTC Detection Condition Patterns:
Vehicle Condition
Pattern 1 Pattern 2 Pattern 3 Pattern 4 Pattern 5
Diagnostic Condition The turbine speed is equal to or less than the 2nd gear synchronized speed when starting to shift gears in D, and when shifting between 2nd and 3rd gears, 2nd and 4th gears or 3rd and 4th gears ○ ○ - - -
Downshift to 1st gear - - ○ - -
Downshift to 2nd gear - - - ○ -
Downshift to 3rd gear - - - - ○
Malfunction Condition Output shaft speed is 1580 rpm or more and the difference between the 1st gear synchronized speed and turbine speed is 10 rpm or less ○ - - - -
Turbine speed is 6300 rpm or more - ○ - - -
Output shaft speed is 1250 rpm or more - - ○ - -
Output shaft speed is 2870 rpm or more - - - ○ -
Output shaft speed is 4030 rpm or more - - - - ○
Duration - - - - -
Detection Logic 1 trip detection logic 1 trip detection logic 1 trip detection logic 1 trip detection logic 1 trip detection logic

HINT:

This DTC is stored when any of the above detection patterns is met.


MONITOR DESCRIPTION

When an erroneous downshift is output or a gear shifting malfunction is detected while downshifting or changing gears while driving, the ECM illuminates the MIL and stores a DTC.

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for at least 30 seconds.

5.

Turn the ignition switch to ON and turn the GTS on.

6.

Start the engine.

7.

Perform the D Position Test inspection in Road Test.

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION SYSTEM (for 7GR-FKS)>ROAD TEST

8.

Stop the vehicle.

9.

Enter the following menus: Powertrain / Transmission / Utility / All Readiness.

10.

Input the DTC: P170300.

11.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions


N/A
·

Unable to perform DTC judgment

·

Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE or N/A, perform the Confirmation Driving Pattern and check the DTC judgment result again.

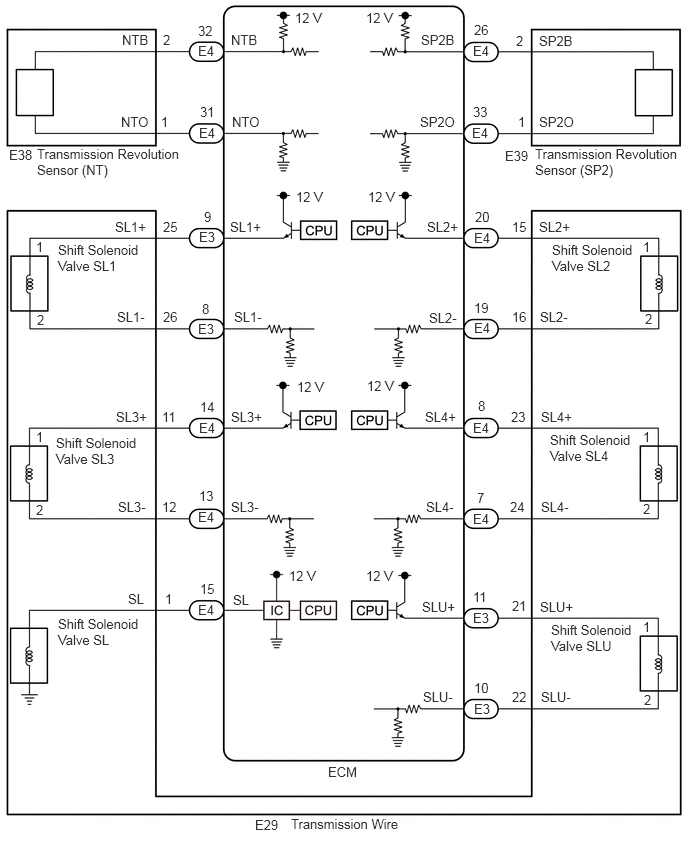

WIRING DIAGRAM

C412708E01
0.385,1.521 1.875,1.896 1.49,0.375 10 false Transmission Revolution Sensor (NT) 0.094,1.531 0.552,1.729 0.458,0.198 10 false E38 2.406,0.333 2.865,0.531 0.458,0.198 10 false NTB 2.417,1.188 2.875,1.385 0.458,0.198 10 false NTO 3.073,0.104 3.531,0.302 0.458,0.198 10 false 12 V 1.271,0.333 1.729,0.531 0.458,0.198 10 false NTB 1.26,1.188 1.719,1.385 0.458,0.198 10 false NTO 1.698,0.333 1.854,0.531 0.156,0.198 10 false 2 1.677,1.188 1.833,1.385 0.156,0.198 10 false 1 2.073,2.385 2.385,2.583 0.313,0.198 10 false E3 2.063,0.448 2.375,0.646 0.313,0.198 10 false E4 2.073,1.302 2.385,1.5 0.313,0.198 10 false E4 4.927,0.448 5.24,0.646 0.313,0.198 10 false E4 4.917,1.302 5.229,1.5 0.313,0.198 10 false E4 3.813,0.104 4.271,0.302 0.458,0.198 10 false 12 V 3.083,1.969 3.542,2.167 0.458,0.198 10 false 12 V 3.833,1.969 4.292,2.167 0.458,0.198 10 false 12 V 3.823,3.938 4.281,4.135 0.458,0.198 10 false 12 V 3.094,3.948 3.552,4.146 0.458,0.198 10 false 12 V 3.01,5.917 3.469,6.115 0.458,0.198 10 false 12 V 3.813,5.917 4.271,6.115 0.458,0.198 10 false 12 V 2.396,2.281 3.01,2.479 0.615,0.198 10 false SL1+ 2.438,3.219 3.052,3.417 0.615,0.198 10 false SL1- 4.448,2.281 5.063,2.479 0.615,0.198 10 false SL2+ 4.469,3.229 5.083,3.427 0.615,0.198 10 false SL2- 1.698,2.281 2.01,2.479 0.313,0.198 10 false 25 1.698,3.219 2.01,3.417 0.313,0.198 10 false 26 2.125,2.177 2.438,2.375 0.313,0.198 10 false 9 2.104,3.135 2.417,3.333 0.313,0.198 10 false 8 2.063,3.344 2.375,3.542 0.313,0.198 10 false E3 4.948,2.177 5.26,2.375 0.313,0.198 10 false 20 4.938,3.125 5.25,3.323 0.313,0.198 10 false 19 5.333,2.281 5.646,2.479 0.313,0.198 10 false 15 5.333,3.219 5.646,3.417 0.313,0.198 10 false 16 4.938,2.396 5.25,2.594 0.313,0.198 10 false E4 4.938,3.333 5.25,3.531 0.313,0.198 10 false E4 1.198,2.281 1.813,2.479 0.615,0.198 10 false SL1+ 1.219,3.219 1.833,3.417 0.615,0.198 10 false SL1- 5.615,2.281 6.229,2.479 0.615,0.198 10 false SL2+ 5.625,3.219 6.24,3.417 0.615,0.198 10 false SL2- 0.604,2.521 1.479,2.917 0.875,0.396 10 false Shift Solenoid Valve SL1 5.75,2.521 6.625,2.917 0.875,0.396 10 false Shift Solenoid Valve SL2 2.406,4.26 3.021,4.458 0.615,0.198 10 false SL3+ 4.427,4.26 5.042,4.458 0.615,0.198 10 false SL4+ 2.406,5.198 3.021,5.396 0.615,0.198 10 false SL3- 4.438,5.198 5.052,5.396 0.615,0.198 10 false SL4- 2.073,4.375 2.385,4.573 0.313,0.198 10 false E4 2.063,5.302 2.375,5.5 0.313,0.198 10 false E4 4.927,4.375 5.24,4.573 0.313,0.198 10 false E4 4.927,5.323 5.24,5.521 0.313,0.198 10 false E4 2.083,4.156 2.396,4.354 0.313,0.198 10 false 14 2.073,5.083 2.385,5.281 0.313,0.198 10 false 13 1.688,5.198 2,5.396 0.313,0.198 10 false 12 1.688,4.26 2,4.458 0.313,0.198 10 false 11 4.979,4.146 5.292,4.344 0.313,0.198 10 false 8 4.969,5.104 5.281,5.302 0.313,0.198 10 false 7 5.323,4.26 5.635,4.458 0.313,0.198 10 false 23 5.313,5.198 5.625,5.396 0.313,0.198 10 false 24 0.583,4.531 1.458,4.927 0.875,0.396 10 false Shift Solenoid Valve SL3 5.729,4.5 6.604,4.896 0.875,0.396 10 false Shift Solenoid Valve SL4 5.74,6.479 6.615,6.875 0.875,0.396 10 false Shift Solenoid Valve SLU 4.396,6.24 5.01,6.438 0.615,0.198 10 false SLU+ 4.406,7.177 5.021,7.375 0.615,0.198 10 false SLU- 4.927,6.354 5.24,6.552 0.313,0.198 10 false E3 4.938,7.302 5.25,7.5 0.313,0.198 10 false E3 4.927,6.135 5.24,6.333 0.313,0.198 10 false 11 4.938,7.083 5.25,7.281 0.313,0.198 10 false 10 5.333,6.229 5.646,6.427 0.313,0.198 10 false 21 5.333,7.177 5.646,7.375 0.313,0.198 10 false 22 5.635,4.26 6.25,4.458 0.615,0.198 10 false SL4+ 5.635,5.198 6.25,5.396 0.615,0.198 10 false SL4- 5.625,6.24 6.24,6.438 0.615,0.198 10 false SLU+ 5.635,7.177 6.25,7.375 0.615,0.198 10 false SLU- 2.063,6.271 2.375,6.469 0.313,0.198 10 false E4 2.427,6.167 2.74,6.365 0.313,0.198 10 false SL 2.083,6.052 2.396,6.25 0.313,0.198 10 false 15 1.719,6.156 1.875,6.354 0.156,0.198 10 false 1 1.333,6.156 1.646,6.354 0.313,0.198 10 false SL 0.604,6.417 1.479,6.813 0.875,0.396 10 false Shift Solenoid Valve SL 3.417,7.958 3.875,8.156 0.458,0.198 10 false ECM 3.031,8.5 5.635,8.698 2.604,0.198 10 false Transmission Wire 2.656,8.51 3.115,8.708 0.458,0.198 10 false E29 4.385,0.333 5,0.531 0.615,0.198 10 false SP2B 5.615,0.344 6.229,0.542 0.615,0.198 10 false SP2B 4.375,1.188 4.99,1.385 0.615,0.198 10 false SP2O 5.615,1.188 6.229,1.385 0.615,0.198 10 false SP2O 2.083,1.083 2.396,1.281 0.313,0.198 10 false 31 4.938,0.229 5.25,0.427 0.313,0.198 10 false 26 4.927,1.083 5.24,1.281 0.313,0.198 10 false 33 5.375,0.344 5.531,0.542 0.156,0.198 10 false 2 5.396,1.188 5.552,1.385 0.156,0.198 10 false 1 5.573,1.521 7.083,1.906 1.51,0.385 10 false Transmission Revolution Sensor (SP2) 5.26,1.542 5.719,1.74 0.458,0.198 10 false E39 2.063,0.24 2.375,0.438 0.313,0.198 10 false 32 1.208,4.26 1.823,4.458 0.615,0.198 10 false SL3+ 1.229,5.198 1.844,5.396 0.615,0.198 10 false SL3- 0.385,3.25 0.542,3.448 0.156,0.198 10 false 2 0.375,5.229 0.531,5.427 0.156,0.198 10 false 2 6.698,5.219 6.854,5.417 0.156,0.198 10 false 2 6.719,3.24 6.875,3.438 0.156,0.198 10 false 2 6.708,7.208 6.865,7.406 0.156,0.198 10 false 2 0.375,2.49 0.531,2.688 0.156,0.198 10 false 1 0.375,4.469 0.531,4.667 0.156,0.198 10 false 1 6.698,6.448 6.854,6.646 0.156,0.198 10 false 1 6.698,4.469 6.854,4.667 0.156,0.198 10 false 1 6.698,2.49 6.854,2.688 0.156,0.198 10 false 1

CAUTION / NOTICE / HINT

NOTICE:

Perform registration and/or initialization when parts related to the automatic transmission are replaced

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION SYSTEM (for 7GR-FKS)>PRECAUTION


PROCEDURE

1.CHECK DTC OUTPUT (IN ADDITION TO DTC P170300)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Transmission / Trouble Codes.

Powertrain > Transmission > Trouble Codes
50001 373

e.

Read the DTCs using the GTS.

HINT:

If any DTCs other than P170300 are output, perform troubleshooting for those DTCs first.



Result:
Result Proceed to
Only DTC P170300 is output A
DTC P170300 and other DTCs are output B



A

2.CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

B

GO TO DTC CHART

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION SYSTEM (for 7GR-FKS)>DIAGNOSTIC TROUBLE CODE CHART


2.CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)
a.

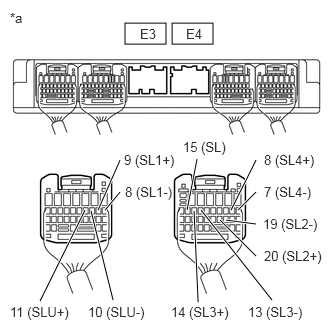

C409347C01
1.302,0.24 1.729,0.458 0.427,0.219 1.792,0.24 2.219,0.458 0.427,0.219 2.479,2.188 2.667,2 true 2.406,2.188 2.667,1.667 true 2.354,2.292 2.667,2.333 true 2.292,2.292 2.667,2.667 true 2.094,2.188 2.833,3.125 true 1.948,2.188 2.052,1.656 true 2.021,2.198 2.063,3.146 true 1.177,3.125 0.948,2.198 true 1.094,2.188 1.25,2 true 1.021,2.188 1.25,1.667 true 0.417,3.135 0.885,2.188 true 0.104,0.104 0.417,0.302 0.313,0.198 10 false *a 1.458,0.271 1.917,0.469 0.458,0.198 10 false E3 1.938,0.271 2.396,0.469 0.458,0.198 10 false E4 1.292,1.583 2.521,1.781 1.229,0.198 10 false 9 (SL1+) 1.302,1.917 2.531,2.115 1.229,0.198 10 false 8 (SL1-) 2.74,2.25 3.333,2.521 0.594,0.271 10 false 19 (SL2-) 2.75,2.583 3.385,2.813 0.635,0.229 10 false 20 (SL2+) 1.781,3.167 2.5,3.385 0.719,0.219 10 false 14 (SL3+) 2.583,3.167 3.198,3.354 0.615,0.188 10 false 13 (SL3-) 2.75,1.583 3.333,1.833 0.583,0.25 10 false 8 (SL4+) 2.75,1.917 3.281,2.135 0.531,0.219 10 false 7 (SL4-) 0.104,3.167 1.333,3.365 1.229,0.198 10 false 11 (SLU+) 0.917,3.167 2.146,3.365 1.229,0.198 10 false 10 (SLU-) 1.906,1.448 3.135,1.646 1.229,0.198 10 false 15 (SL)
*a Rear view of wire harness connector
(to ECM)


Disconnect the ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E3-9 (SL1+) - E3-8 (SL1-) 20°C (68°F) 5.0 to 5.6 Ω
E4-20 (SL2+) - E4-19 (SL2-) 20°C (68°F) 5.0 to 5.6 Ω
E4-14 (SL3+) - E4-13 (SL3-) 20°C (68°F) 5.0 to 5.6 Ω
E4-8 (SL4+) - E4-7 (SL4-) 20°C (68°F) 5.0 to 5.6 Ω
E3-11 (SLU+) - E3-10 (SLU-) 20°C (68°F) 5.0 to 5.6 Ω
E4-15 (SL) - Body ground 20°C (68°F) 11 to 15 Ω
E3-9 (SL1+) or E3-8 (SL1-) - Body ground and other terminals Always 10 kΩ or higher
E4-20 (SL2+) or E4-19 (SL2-) - Body ground and other terminals Always 10 kΩ or higher
E4-14 (SL3+) or E4-13 (SL3-) - Body ground and other terminals Always 10 kΩ or higher
E4-8 (SL4+) or E4-7 (SL4-) - Body ground and other terminals Always 10 kΩ or higher
E3-11 (SLU+) or E3-10 (SLU-) - Body ground and other terminals Always 10 kΩ or higher
E4-15 (SL) - other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.READ VALUE USING GTS (NT SENSOR SPEED AND NT SENSOR VOLTAGE)

NG

14.INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SL1, SL2, SL3, SL4, SLU AND SL)
3.READ VALUE USING GTS (NT SENSOR SPEED AND NT SENSOR VOLTAGE)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Transmission / Data List / NT Sensor Speed, NT Sensor Voltage.


e.

Read the Data List according to the display on the GTS.

Powertrain > Transmission > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
NT Sensor Speed Input turbine speed Min.: 0 rpm
Max.: 12750 rpm
·

Lock-up on (after warming up the engine): Value from transmission revolution sensor (NT) equal to engine speed

·

Lock-up off (idling with shift lever in N): Value from transmission revolution sensor (NT) nearly equal to engine speed


Data is displayed in increments of 50 rpm.
NT Sensor Voltage Transmission revolution sensor (NT) output voltage Min.: 0.000 V
Max.: 4.999 V 		0.1 to 1.9 V: Engine idling -
Powertrain > Transmission > Data List
Tester Display
NT Sensor Speed
NT Sensor Voltage
50003 373 174,175

Result:
Result Proceed to
Data display is within Normal Condition range A
Data display is not within Normal Condition range B



A

4.READ VALUE USING GTS (SPEED (SP2) AND SP2 SENSOR VOLTAGE)

B

10.INSPECT TRANSMISSION REVOLUTION SENSOR (NT)
4.READ VALUE USING GTS (SPEED (SP2) AND SP2 SENSOR VOLTAGE)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Transmission / Data List / Speed (SP2), SP2 Sensor Voltage.


e.

Read the Data List according to the display on the GTS.

Powertrain > Transmission > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Speed (SP2) Output shaft speed Min.: 0 km/h (0 mph)
Max.: 255 km/h (158 mph) 		0 km/h (0 mph): Vehicle stopped
(Output shaft speed is equal to vehicle speed) 		-
SP2 Sensor Voltage SP2 sensor voltage Min.: 0.000 V
Max.: 4.999 V 		0.2 to 1.8 V: Engine idling -
Powertrain > Transmission > Data List
Tester Display
Speed (SP2)
SP2 Sensor Voltage
50003 373 362,391

Result:
Result Proceed to
Data display is within Normal Condition range A
Data display is not within Normal Condition range B



A

5.INSPECT TRANSMISSION VALVE BODY ASSEMBLY

B

12.INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)
8.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Transmission / Clear the DTCs.


e.

Clear the DTCs.

Powertrain > Transmission > Clear DTCs
50002 373

f.

Turn the ignition switch off.


Result:
Proceed to
NEXT



NEXT

9.CHECK DTC OUTPUT (DTC P170300)
9.CHECK DTC OUTPUT (DTC P170300)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Start the engine.


e.

Perform the D Position Test inspection in Road Test.

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>AUTOMATIC TRANSMISSION SYSTEM (for 7GR-FKS)>ROAD TEST


f.

Stop the vehicle.


g.

Turn the ignition switch to ON.


h.

Turn the GTS on.


i.

Enter the following menus: Powertrain / Transmission / Trouble Codes.

Powertrain > Transmission > Trouble Codes
50001 373

j.

Read the DTCs using the GTS.


Result:
Result Proceed to
DTCs are not output A
DTC P170300 is output B



A

END

B

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL


10.INSPECT TRANSMISSION REVOLUTION SENSOR (NT)
a.

Remove the transmission revolution sensor (NT).

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SPEED SENSOR>REMOVAL


b.

Connect the battery to the sensor as shown in the illustration.

C297974C12
3.688,0.646 3.917,0.646 true 4.854,0.385 4.99,0.5 true 5.74,0.823 6.031,0.823 true 5.333,2.25 5.625,1.844 true 4.51,2.573 4.823,2.385 true 4.271,0.792 4.5,0.792 true 1.26,1.844 1.542,1.448 true 2.115,1.896 1.833,1.448 true 0.833,0.885 1.146,1.042 0.313,0.156 10 false *1 5.021,0.5 5.333,0.656 0.313,0.156 10 false *2 6.073,0.75 6.385,0.906 0.313,0.156 10 false *3 5.635,1.708 5.948,1.865 0.313,0.156 10 false *4 4.365,2.542 4.677,2.698 0.313,0.156 10 false *a 3.125,0.563 3.833,0.781 0.708,0.219 10 false 2 (NTB) 4.542,0.708 5.25,0.927 0.708,0.219 10 false 1 (NTO) 1.979,1.938 2.688,2.156 0.708,0.219 10 false NTO 1.094,1.927 1.802,2.146 0.708,0.219 10 false NTB
*1 Transmission Revolution Sensor (NT) *2 Ammeter
*3 Battery *4 Magnet
*a 5 mm (0.197 in.) or less - -



c.

Wave a magnetic object left and right in front of the transmission revolution sensor (NT) tip (5 mm (0.197 in.) or less) to change the high/low signals while measuring the current.

NOTICE:

Make sure to wave the magnetic object during the inspection. The current will not change without waving the magnetic object as indicated by the arrow in the illustration.



d.

Measure the current according to the value(s) in the table below.

Standard Current:
Tester Connection Condition Specified Condition
1 (NTO) - 2 (NTB) Low signal 4 to 8 mA
1 (NTO) - 2 (NTB) High signal 12 to 16 mA



Result:
Proceed to
OK
NG



OK

11.CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR (NT) - ECM)

NG

REPLACE TRANSMISSION REVOLUTION SENSOR (NT)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SPEED SENSOR>REMOVAL


11.CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR (NT) - ECM)
a.

Disconnect the transmission revolution sensor (NT) connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E38-2 (NTB) - E4-32 (NTB) Always Below 1 Ω
E38-1 (NTO) - E4-31 (NTO) Always Below 1 Ω
E38-2 (NTB) - Body ground Always 10 kΩ or higher
E38-1 (NTO) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

12.INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)
a.

Remove the transmission revolution sensor (SP2).

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SPEED SENSOR>REMOVAL


b.

Connect the battery to the sensor as shown in the illustration.

C297974C11
3.688,0.646 3.917,0.646 true 4.854,0.385 4.99,0.5 true 5.74,0.823 6.031,0.823 true 5.333,2.25 5.625,1.844 true 4.51,2.573 4.823,2.385 true 4.271,0.792 4.5,0.792 true 1.26,1.844 1.542,1.448 true 2.115,1.896 1.833,1.448 true 0.833,0.885 1.146,1.042 0.313,0.156 10 false *1 5.021,0.5 5.333,0.656 0.313,0.156 10 false *2 6.073,0.76 6.385,0.917 0.313,0.156 10 false *3 5.635,1.708 5.948,1.865 0.313,0.156 10 false *4 4.354,2.552 4.667,2.708 0.313,0.156 10 false *a 3.031,0.563 3.74,0.781 0.708,0.219 10 false 2 (SP2B) 4.542,0.708 5.25,0.927 0.708,0.219 10 false 1 (SP2O) 1.979,1.938 2.688,2.156 0.708,0.219 10 false SP2O 1.094,1.927 1.802,2.146 0.708,0.219 10 false SP2B
*1 Transmission Revolution Sensor (SP2) *2 Ammeter
*3 Battery *4 Magnet
*a 5 mm (0.197 in.) or less - -



c.

Wave a magnetic object left and right in front of the transmission revolution sensor (SP2) tip (5 mm (0.197 in.) or less) to change the high/low signals while measuring the current.

NOTICE:

Make sure to wave the magnetic object during the inspection. The current will not change without waving the magnetic object as indicated by the arrow in the illustration.



d.

Measure the current according to the value(s) in the table below.

Standard Current:
Tester Connection Condition Specified Condition
1 (SP2O) - 2 (SP2B) Low signal 4 to 8 mA
1 (SP2O) - 2 (SP2B) High signal 12 to 16 mA



Result:
Proceed to
OK
NG



OK

13.CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR (SP2) - ECM)

NG

REPLACE TRANSMISSION REVOLUTION SENSOR (SP2)

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>SPEED SENSOR>REMOVAL


13.CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR (SP2) - ECM)
a.

Disconnect the transmission revolution sensor (SP2) connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E39-2 (SP2B) - E4-26 (SP2B) Always Below 1 Ω
E39-1 (SP2O) - E4-33 (SP2O) Always Below 1 Ω
E39-2 (SP2B) - Body ground Always 10 kΩ or higher
E39-1 (SP2O) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

14.INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SL1, SL2, SL3, SL4, SLU AND SL)
a.

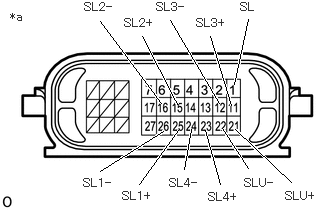

C319326C48
1.042,1.781 1.698,1.365 true 1.448,1.917 1.854,1.354 true 1.677,1.073 1.042,0.219 true 1.844,1.083 1.479,0.375 true 2.406,1.094 2.188,0.375 true 2.281,1.073 1.771,0.208 true 3.031,1.896 2.448,1.344 true 2.583,1.75 2.313,1.333 true 2.438,0.875 2.583,0.198 true 1.917,1.76 1.99,1.344 true 2.292,1.917 2.135,1.354 true 0.104,0.104 0.417,0.302 0.313,0.198 10 false *a 0.865,1.833 1.323,2.031 0.458,0.198 10 false SL1- 1.271,1.969 1.729,2.167 0.458,0.198 10 false SL1+ 0.875,0 1.333,0.198 0.458,0.198 10 false SL2- 1.292,0.167 1.75,0.365 0.458,0.198 10 false SL2+ 2.042,0.167 2.5,0.365 0.458,0.198 10 false SL3+ 1.625,0 2.083,0.198 0.458,0.198 10 false SL3- 2.969,1.969 3.427,2.167 0.458,0.198 10 false SLU+ 2.542,1.833 3,2.031 0.458,0.198 10 false SLU- 2.5,0 2.958,0.198 0.458,0.198 10 false SL 1.76,1.833 2.219,2.031 0.458,0.198 10 false SL4- 2.167,1.979 2.625,2.177 0.458,0.198 10 false SL4+
*a Component without harness connected
(Transmission Wire)


Disconnect the transmission wire connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
25 (SL1+) - 26 (SL1-) 20°C (68°F) 5.0 to 5.6 Ω
15 (SL2+) - 16 (SL2-) 20°C (68°F) 5.0 to 5.6 Ω
11 (SL3+) - 12 (SL3-) 20°C (68°F) 5.0 to 5.6 Ω
23 (SL4+) - 24 (SL4-) 20°C (68°F) 5.0 to 5.6 Ω
21 (SLU+) - 22 (SLU-) 20°C (68°F) 5.0 to 5.6 Ω
1 (SL) - Body ground 20°C (68°F) 11 to 15 Ω
25 (SL1+) or 26 (SL1-) - Body ground and other terminals Always 10 kΩ or higher
15 (SL2+) or 16 (SL2-) - Body ground and other terminals Always 10 kΩ or higher
11 (SL3+) or 12 (SL3-) - Body ground and other terminals Always 10 kΩ or higher
23 (SL4+) or 24 (SL4-) - Body ground and other terminals Always 10 kΩ or higher
21 (SLU+) or 22 (SLU-) - Body ground and other terminals Always 10 kΩ or higher
1 (SL) - other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (SHIFT SOLENOID VALVE - ECM)

NG

15.INSPECT SHIFT SOLENOID VALVE SL1, SL2, SL3, SL4, SLU AND SL
15.INSPECT SHIFT SOLENOID VALVE SL1, SL2, SL3, SL4, SLU AND SL
a.

Disconnect the transmission wire connector from the shift solenoid valves SL1, SL2, SL3, SL4, SLU and SL.

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>VALVE BODY ASSEMBLY>DISASSEMBLY


b.
C409344C01
1,0.5 1.5,1 true 2.25,0.5 1.75,1 true 0.333,0.177 0.646,0.333 0.313,0.156 10 false *1 0.333,2.5 0.646,2.656 0.313,0.156 10 false *2 0.844,0.302 1,0.5 0.156,0.198 10 false 2 2.333,0.302 2.49,0.5 0.156,0.198 10 false 1
*1 Shift Solenoid Valve SL1, SL2, SL3, SL4 and SLU
*2 Shift Solenoid Valve SL


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Shift solenoid valve SL1 connector terminal 1 - terminal 2 20°C (68°F) 5.0 to 5.6 Ω
Shift solenoid valve SL2 connector terminal 1 - terminal 2 20°C (68°F) 5.0 to 5.6 Ω
Shift solenoid valve SL3 connector terminal 1 - terminal 2 20°C (68°F) 5.0 to 5.6 Ω
Shift solenoid valve SL4 connector terminal 1 - terminal 2 20°C (68°F) 5.0 to 5.6 Ω
Shift solenoid valve SLU connector terminal 1 - terminal 2 20°C (68°F) 5.0 to 5.6 Ω
Shift solenoid valve SL connector terminal - Shift solenoid valve SL body 20°C (68°F) 11 to 15 Ω



c.
C409346C01
1.75,1 2.25,0.5 true 1.5,1 1,0.5 true 0.333,0.167 0.646,0.365 0.313,0.198 10 false *1 0.333,2.417 0.646,2.615 0.313,0.198 10 false *2 0.844,0.25 1,0.448 0.156,0.198 10 false 2 2.333,0.25 2.49,0.448 0.156,0.198 10 false 1
*1 Shift Solenoid Valve SL1, SL2, SL3, SL4 and SLU
*2 Shift Solenoid Valve SL


Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

OK:
Measurement Condition Specified Condition
·

Battery positive (+) with a 21 W bulb → Shift solenoid valve SL1 connector Terminal 1

·

Battery negative (-) → Shift solenoid valve SL1 connector Terminal 2


Valve moves and makes an operating noise
·

Battery positive (+) with a 21 W bulb → Shift solenoid valve SL2 connector Terminal 1

·

Battery negative (-) → Shift solenoid valve SL2 connector Terminal 2


Valve moves and makes an operating noise
·

Battery positive (+) with a 21 W bulb → Shift solenoid valve SL3 connector Terminal 1

·

Battery negative (-) → Shift solenoid valve SL3 connector Terminal 2


Valve moves and makes an operating noise
·

Battery positive (+) with a 21 W bulb → Shift solenoid valve SL4 connector Terminal 1

·

Battery negative (-) → Shift solenoid valve SL4 connector Terminal 2


Valve moves and makes an operating noise
·

Battery positive (+) with a 21 W bulb → Shift solenoid valve SLU connector Terminal 1

·

Battery negative (-) → Shift solenoid valve SLU connector Terminal 2


Valve moves and makes an operating noise
·

Battery positive (+) → Shift solenoid valve SL connector

·

Battery negative (-) → Shift solenoid valve SL body


Valve moves and makes an operating noise



Result:
Proceed to
OK
NG



OK

REPLACE TRANSMISSION WIRE

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>TRANSMISSION WIRE>REMOVAL


NG

REPLACE SHIFT SOLENOID VALVE SL1, SL2, SL3, SL4, SLU OR SL

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>VALVE BODY ASSEMBLY>DISASSEMBLY
