RM35X0E _52 Drivetrain _078741 AC60E AUTOMATIC TRANSMISSION / TRANSAXLE _0382306 TRANSMISSION WIRE A

AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  TRANSMISSION WIRE  REMOVAL


PROCEDURE

Hide 1.DRAIN AUTOMATIC TRANSMISSION FLUID

a.

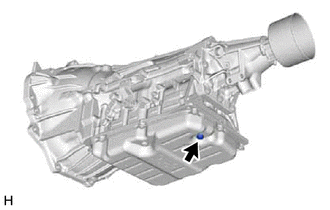

C323945

Remove the drain plug and gasket from the automatic transmission assembly and drain the ATF.


b.

Install a new gasket and the drain plug to the automatic transmission assembly.

Torque:
20 N*m (204 kgf*cm, 15 ft.*lbf)


Hide 35106 2.REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY

a.

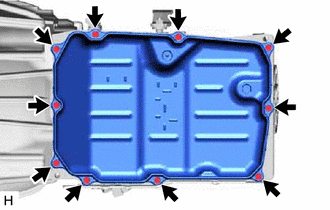

C323966

Remove the 10 bolts, automatic transmission oil pan sub-assembly and automatic transmission oil pan gasket from the automatic transmission case sub-assembly.

NOTICE:

Some fluid will remain in the automatic transmission oil pan sub-assembly. Remove all of the bolts, and carefully remove the automatic transmission oil pan sub-assembly.



b.

Remove the 4 transmission oil cleaner magnets from the automatic transmission oil pan sub-assembly.


c.

Examine the particles in the automatic transmission oil pan sub-assembly.

i.

Collect any steel chips with the removed transmission oil cleaner magnets. Carefully inspect the foreign matter and particles in the automatic transmission oil pan sub-assembly and on the transmission oil cleaner magnets to anticipate the type of wear you will find in the automatic transmission assembly.

Steel (magnetic): bearing, gear and clutch plate wear

Brass (non-magnetic): bush wear



Hide 82125J 3.DISCONNECT TRANSMISSION WIRE

a.

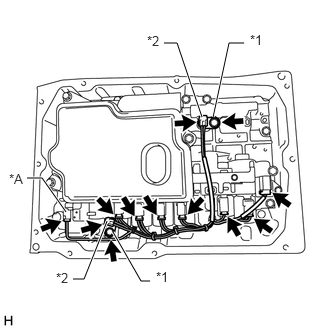

C323967C01
1.708,0.448 1.844,0.448 1.844,0.448 2.104,1.219 true 2.542,0.448 2.385,0.448 2.385,0.448 2.219,1.219 true 0.76,2.906 0.875,2.906 0.875,2.906 1.115,2.302 true 1.563,2.927 1.469,2.927 1.469,2.927 1.177,2.417 true 0.281,1.854 0.438,1.854 0.438,1.854 0.688,2.208 true 2.604,0.333 2.917,0.49 0.313,0.156 10 false *1 0.583,2.813 0.896,2.969 0.313,0.156 10 false *2 0.094,1.781 0.406,1.938 0.313,0.156 10 false *A 1.531,0.344 1.844,0.5 0.313,0.156 10 false *2 1.625,2.802 1.938,2.958 0.313,0.156 10 false *1
*A w/ Stop and Start System
*1 Temperature Sensor Clamp
*2 Temperature Sensor


Remove the 2 bolts and the 2 temperature sensor clamps, and disconnect the 2 temperature sensors.


b.

Disconnect the 7 solenoid valve connectors and transmission wire from the transmission valve body assembly.


c.

w/ Stop and Start System:

Disconnect the electromagnetic oil pump connector.


Hide 35979B 4.REMOVE TRANSMISSION INSULATOR RH

a.
C410514

Remove the 3 bolts and transmission insulator RH from the automatic transmission assembly.


Hide 82125J 5.REMOVE TRANSMISSION WIRE

a.

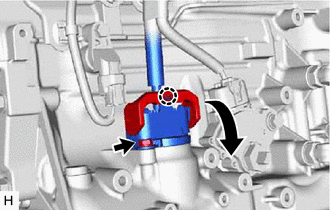

C416516

Disconnect the transmission wire connector.

HINT:

Detach the claw, press down the lever, and disconnect the transmission wire connector.



b.

Remove the bolt and pull out the transmission wire from the automatic transmission case sub-assembly.


c.
C318508

Remove the O-ring from the connector of transmission wire.


d.
C181076

Remove the 2 O-rings from the 2 temperature sensors.
