RM35X0E _52 Drivetrain _078741 AC60E AUTOMATIC TRANSMISSION / TRANSAXLE _0382312 AUTOMATIC TRANSMISSION ASSEMBLY(for 7GR-FKS) A

AC60E AUTOMATIC TRANSMISSION / TRANSAXLE AUTOMATIC TRANSMISSION ASSEMBLY(for 7GR-FKS) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the automatic transmission assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
Battery terminal is disconnected/reconnected	Memorize steering angle neutral point	Panoramic view monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
· Engine assembly · Air intake system parts · Gas leaks from exhaust system	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(201902,999999,_51,_078720,_0381907,RM100000001G2VV,)
Starter assembly NOTICE: When the starter assembly is replaced, "STARTER relay" and "STARTER NO.2 relay" must be also replaced.	Clear number of starter operations	Stop and start system	(201906,999999,_51,_078825,_0382334,RM100000001IKMD,)
Automatic transmission assembly	Reset memory	· Large shift shock · Engine overruns	(201902,999999,_52,_078741,_0385245,RM100000001GL7C,)
Automatic transmission fluid	ATF thermal degradation estimate reset	The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly	(201902,999999,_52,_078741,_0385245,RM100000001GL7C,)
Front wheel alignment adjustment	· Perform reset memory · Perform acceleration sensor zero point calibration and store system information memorization.	· VSC is disabled or malfunctions · DTCs are output · Slip indicator light illuminates · ABS warning light illuminates	(201902,999999,_54,_078667,_0385049,RM100000001GK1P,)
Suspension, tires, etc.	Television camera assembly optical axis (Back camera position setting)	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRB,)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative when not Performed	Necessary Procedures	Link
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative when not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

CAUTION:

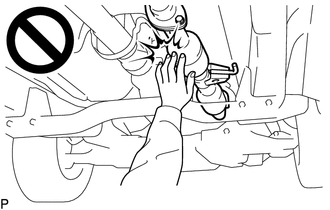

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

2.219,0.813 2.646,0.813 false 2.698,0.729 3.01,0.927 0.313,0.198 10 false *a

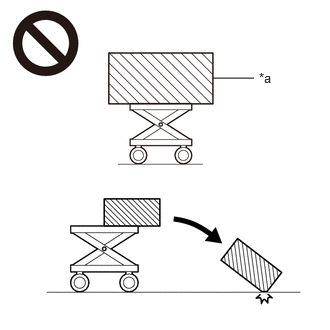

*a	An Object Exceeding Weight Limit of Engine Lifter

The engine assembly with transaxle is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop or the engine assembly with transaxle may fall off the engine lifter.

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: After turning the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

Hide Display 3.REMOVE ENGINE ASSEMBLY WITH AUTOMATIC TRANSMISSION ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>REMOVAL202107,999999,_51,_078603,_0381343,RM100000001XZUP,

Hide Display 35979B 4.REMOVE TRANSMISSION INSULATOR RH

Remove the 3 bolts and transmission insulator RH from the automatic transmission assembly.

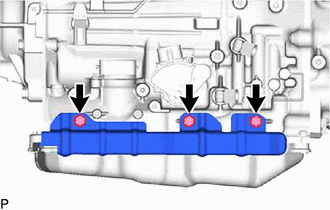

Hide Display 3516A 5.REMOVE TRANSMISSION OIL PAN HEAT INSULATOR

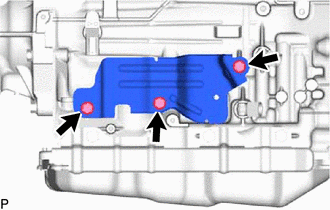

Remove the 3 bolts and transmission oil pan heat insulator from the automatic transmission assembly.

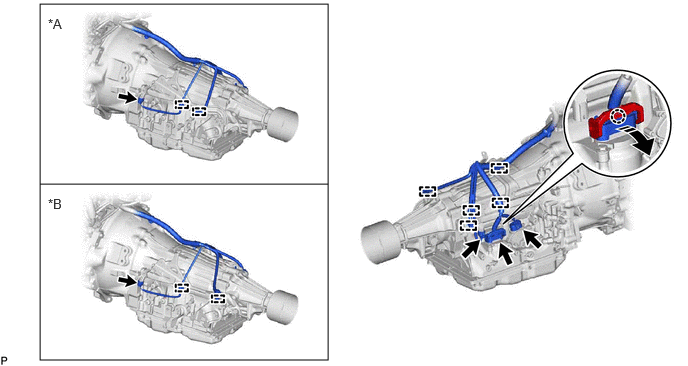

Hide Display 82121 6.DISCONNECT ENGINE WIRE

Disconnect the park/neutral position switch assembly connector, transmission wire connector and 2 transmission revolution sensor connectors.

HINT:: Detach the claw, press down the lever, and then disconnect the transmission wire connector.

0.417,0.042 3.417,3.75 3,3.708 0.417,1.917 3.417,1.917 false 0.5,0.167 0.833,0.333 0.333,0.167 10 false *A 0.5,2.042 0.833,2.208 0.333,0.167 10 false *B

*A	w/ Secondary Air Injection System	*B	w/o Secondary Air Injection System
	Press Down	-	-

Detach the 7 wire harness clamps and disconnect the engine wire from the 4 wire harness clamp brackets.

Hide Display 36478A 7.REMOVE TRANSMISSION BREATHER BRACKET

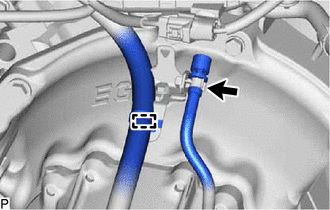

Disconnect the breather hose and detach the wire harness clamp from the transmission breather bracket.

Remove the bolt and transmission breather bracket from the automatic transmission assembly.

Remove the clamp from the transmission breather bracket.

HINT:: It is not necessary to remove the clamp it is being replaced.

Hide Display 32921 8.DISCONNECT NO. 1 OIL COOLER INLET TUBE AND NO. 1 OIL COOLER OUTLET TUBE

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>OIL COOLER (for 7GR-FKS)>REMOVAL202107,999999,_52,_078741,_0382309,RM100000001WUCF_01_0008,

Hide Display 32101A 9.REMOVE DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

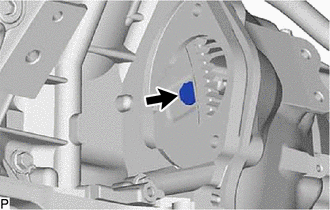

Turn the crankshaft to gain access to the removable locations of the 6 drive plate and torque converter assembly setting bolts and remove each bolt while holding the crankshaft pulley bolt with a wrench.

HINT:: There will be one black colored bolt.

Hide Display 11361J 10.REMOVE FLYWHEEL HOUSING UNDER COVER

Detach the 2 claws and remove the flywheel housing under cover from the engine assembly.

Hide Display 57209B 11.REMOVE REAR ENGINE MOUNTING MEMBER SUB-ASSEMBLY

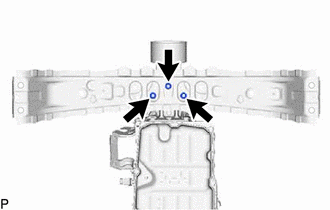

Remove the 3 nuts and rear engine mounting member sub-assembly from the rear engine mounting insulator assembly.

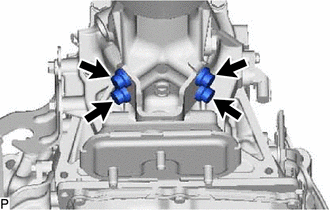

Hide Display 12380 12.REMOVE REAR ENGINE MOUNTING INSULATOR ASSEMBLY

Remove the 4 bolts and rear engine mounting insulator assembly from the automatic transmission assembly.

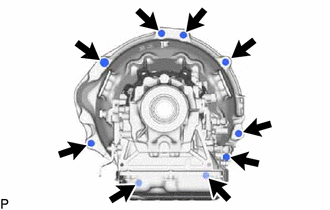

Hide Display 35000 13.REMOVE AUTOMATIC TRANSMISSION ASSEMBLY

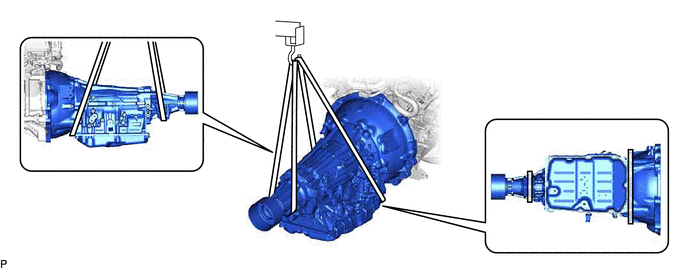

Using a rope or equivalent, support the automatic transmission assembly at the positions shown in the illustration.

CAUTION:: Secure the engine assembly to the engine lifter using a belt, etc. to prevent it from falling.

Remove the 9 bolts and automatic transmission assembly from the engine assembly.

CAUTION:: ·

Do not raise the automatic transmission assembly more than necessary.

·

Make sure to confirm the center of the gravity of the automatic transmission assembly when supporting it.

NOTICE:: ·

Do not use excessive force to pry out the automatic transmission assembly when separating it from the engine assembly to prevent the knock pins from being damaged.

·

Do not allow the wooden blocks or equivalent to contact the transmission oil pan assembly when supporting the automatic transmission assembly, as the transmission oil pan assembly may be deformed as a result.

Hide Display 14.REMOVE WIRE HARNESS CLAMP BRACKET

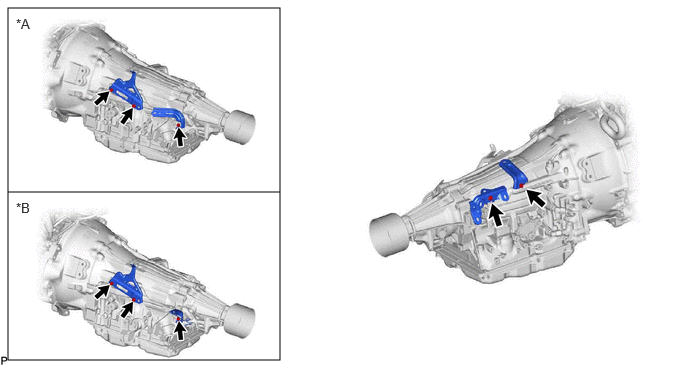

Remove the 5 bolts and 4 wire harness clamp brackets from the automatic transmission assembly.

0.083,0.083 2.917,3.75 2.833,3.667 0.083,2 2.917,2 false 0.167,0.167 0.5,0.333 0.333,0.167 10 false *A 0.167,2.083 0.5,2.25 0.333,0.167 10 false *B

w/ Secondary Air Injection System

w/o Secondary Air Injection System

Hide Display 33825 15.REMOVE TRANSMISSION CONTROL CABLE INSULATOR

Remove the 2 bolts and transmission control cable insulator from the transmission control cable bracket and No. 2 transmission control cable bracket.

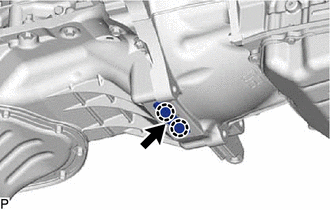

Hide Display 33829E 16.REMOVE TRANSMISSION CONTROL CABLE BRACKET

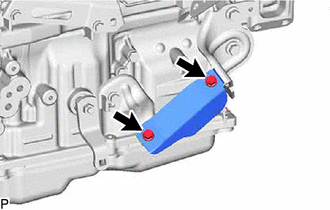

Remove the 2 bolts and transmission control cable bracket from the automatic transmission assembly.

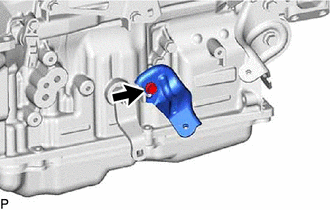

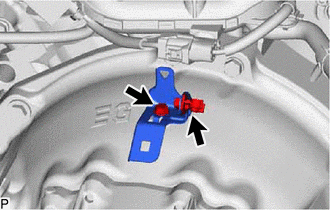

Hide Display 33826A 17.REMOVE NO. 2 TRANSMISSION CONTROL CABLE BRACKET

Remove the bolt and No. 2 transmission control cable bracket from the automatic transmission assembly.

Hide Display 32000 18.REMOVE TORQUE CONVERTER ASSEMBLY

1.771,0.417 1.083,0.167 1.083,0.167 1.771,0.167 true 0.875,0.083 1.042,0.25 0.167,0.167 10 false *a

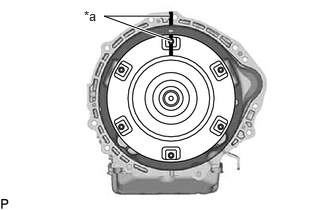

Matchmark

Put matchmarks on the automatic transmission assembly and the torque converter assembly.

Remove the torque converter assembly from the automatic transmission assembly.

NOTICE:: Remove the torque converter assembly from the input shaft horizontally.

Hide Display 32000 19.INSPECT TORQUE CONVERTER ASSEMBLY

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>TORQUE CONVERTER AND DRIVE PLATE>INSPECTION201902,999999,_52,_078741,_0382316,RM100000001G491_02_0001,

Hide Display 20.INSPECT DRIVE PLATE

Click hereDrivetrain>AC60E (AUTOMATIC TRANSMISSION / TRANSAXLE)>TORQUE CONVERTER AND DRIVE PLATE>INSPECTION201902,999999,_52,_078741,_0382316,RM100000001G491_02_0004,
