AC60E AUTOMATIC TRANSMISSION / TRANSAXLE VALVE BODY ASSEMBLY REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the valve body assembly removal/installation are shown below.
| Replacement Part or Procedure | Necessary Procedures | Effects/Inoperative when not Performed | Link |
|---|---|---|---|
w/ Stop and Start System:
Electromagnetic oil pump |
Check electromagnetic oil pump | Stop and start system | ( 201906,999999,_51,_078825,_0382334,RM100000001IKMD,)
|
·
Transmission valve body assembly ·
Any of the shift solenoid valves |
Reset memory | ·
Large shift shock ·
Engine overruns |
for 7GR-FKS:(201902,999999,_52,_078741,_0385245,RM100000001GL7C,)
for 1GD-FTV:( 201902,999999,_52,_078741,_0388674,RM100000001H3C5,)
for 1GD-FTV for EGR with Exhaust Gas Temperature Sensor:( 202208,999999,_52,_078741,_0398020,RM1000000025HBT,)
|
PROCEDURE
82125J

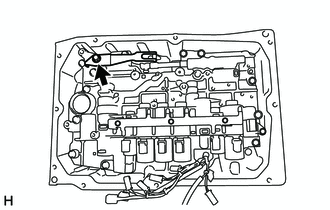

1.DISCONNECT TRANSMISSION WIRE
35330

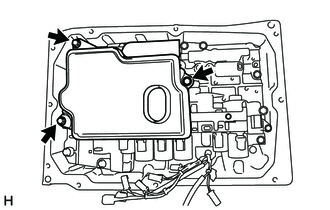

2.REMOVE VALVE BODY OIL STRAINER ASSEMBLY
Remove the 3 bolts and valve body oil strainer assembly from the transmission valve body assembly.
Remove the O-ring from the valve body oil strainer assembly.
35410

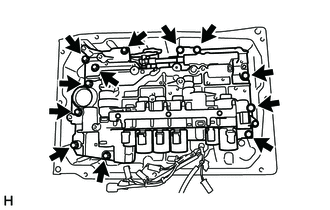

3.REMOVE TRANSMISSION VALVE BODY ASSEMBLY
Remove the bolt, detent spring cover and detent spring from the transmission valve body assembly.
Remove the 12 bolts and transmission valve body assembly from the automatic transmission case sub-assembly.

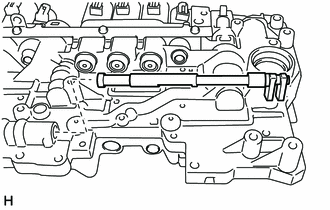

4.REMOVE MANUAL VALVE
Remove the manual valve from the transmission valve body assembly.
35145C

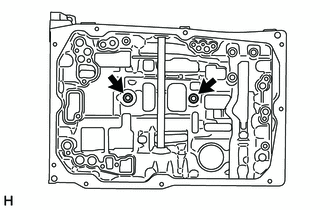

5.REMOVE TRANSMISSION CASE GASKET
Remove the 2 transmission case gaskets from the automatic transmission case sub-assembly.
