AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  VALVE BODY ASSEMBLY  DISASSEMBLY


PROCEDURE

Hide 35285 1.REMOVE SOLENOID LOCK PLATE

a.

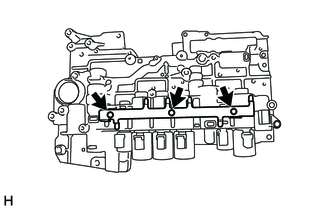

C318910

Remove the 3 bolts and solenoid lock plate from the transmission valve body assembly.


Hide 2.REMOVE SHIFT SOLENOID VALVE SL

a.

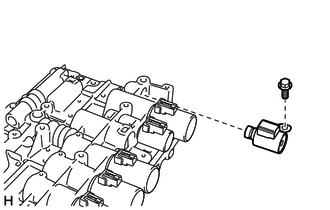

C318911

Remove the bolt and shift solenoid valve SL from the transmission valve body assembly.


Hide 3.REMOVE SHIFT SOLENOID VALVE SL4

a.

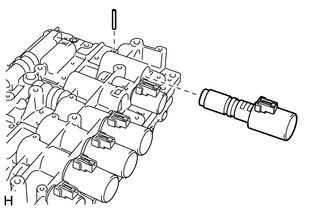

C318912

Remove the straight pin and shift solenoid valve SL4 from the transmission valve body assembly.


Hide 4.REMOVE SHIFT SOLENOID VALVE SLU

a.

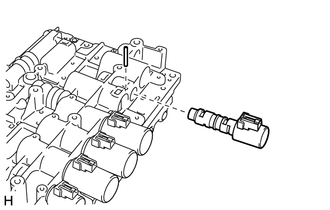

C318913

Remove the straight pin and shift solenoid valve SLU from the transmission valve body assembly.


Hide 5.REMOVE SHIFT SOLENOID VALVE SL3

a.

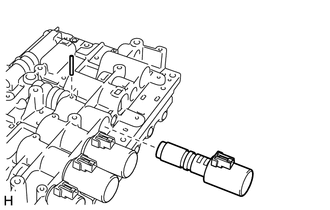

C318914

Remove the straight pin and shift solenoid valve SL3 from the transmission valve body assembly.


Hide 6.REMOVE SHIFT SOLENOID VALVE SL1

a.

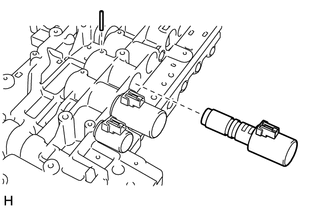

C318915

Remove the straight pin and shift solenoid valve SL1 from the transmission valve body assembly.


Hide 7.REMOVE SHIFT SOLENOID VALVE SL2

a.

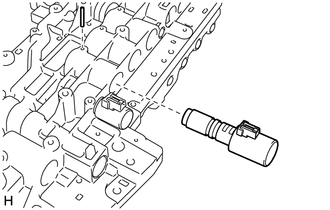

C318916

Remove the straight pin and shift solenoid valve SL2 from the transmission valve body assembly.


Hide 8.REMOVE SHIFT SOLENOID VALVE SLT

a.

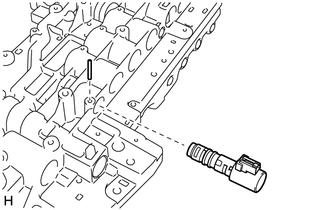

C318917

Remove the straight pin and shift solenoid valve SLT from the transmission valve body assembly.


Hide 35200 9.REMOVE ELECTROMAGNETIC OIL PUMP (w/ Stop And Start System)

a.

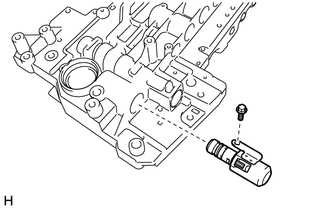

C323965

Remove the bolt and electromagnetic oil pump from the transmission valve body assembly.
