SUPPLEMENTAL RESTRAINT SYSTEMS AIRBAG SYSTEM(for Type B) B165C 2nd Seat Seat Belt Buckle Switch (LH)

DESCRIPTION

The seat belt buckle switch LH circuit consists of the airbag sensor assembly and rear seat inner belt assembly LH.

DTC B165C is stored when a malfunction is detected in the seat belt buckle switch LH circuit.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Test Mode / Check Mode
B165C	2nd Seat Seat Belt Buckle Switch (LH)	One of the following conditions is met: · The airbag sensor assembly detects a line short, short to ground or B+, or an open in the seat belt buckle switch LH circuit. · A rear seat inner belt assembly LH (seat belt buckle switch LH) malfunction. · An airbag sensor assembly malfunction.	· Floor wire · Rear seat inner belt assembly LH · Rear center seat inner belt assembly · Airbag sensor assembly	Comes on	Not applicable

WIRING DIAGRAM

2.427,0.76 3.135,1.365 0.708,0.604 10 false LHB+ 2.438,2.198 3.115,2.677 0.677,0.479 10 false LHB- 5.406,0.896 5.833,1.333 0.427,0.438 10 false LBR+ 5.406,2.073 5.865,2.5 0.458,0.427 10 false LBR- 2.906,0.781 3.271,1.24 0.365,0.458 10 false 3 2.906,1.958 3.24,2.375 0.333,0.417 10 false 7 5.125,0.802 5.5,1.333 0.375,0.531 10 false 28 5.135,1.958 5.448,2.365 0.313,0.406 10 false 27 1.771,2.917 2.583,3.302 0.813,0.385 10 false V14 0.375,3.094 1.646,3.771 1.271,0.677 10 false Rear Seat Inner Belt Assembly LH 5.323,2.906 5.74,3.344 0.417,0.438 10 false V1 5.323,3.073 6.958,3.479 1.635,0.406 10 false Airbag Sensor Assembly 1.76,3.104 3.042,3.615 1.281,0.51 10 false Rear Center Seat Inner Belt Assembly 0.385,2.896 0.542,3.094 0.156,0.198 10 false A 1.792,0.771 2.094,1.219 0.302,0.448 10 false 1 1.792,1.917 2.344,2.563 0.552,0.646 10 false 2

CAUTION / NOTICE / HINT

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

When disconnecting and reconnecting the battery

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201902,201906,_V1,_081196,_0393338,RM100000001HX6R,201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201902,201906,_V1,_081196,_0393338,RM100000001HX6S,201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

After replacing the airbag sensor assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE201902,201906,_V1,_081196,_0393339,RM100000001HX6U,201906,202005,_V1,_081196,_0393339,RM100000001IWEZ,202005,202107,_V1,_081196,_0393339,RM100000001M43S,202107,202208,_V1,_081196,_0393339,RM100000001WMAF,202208,999999,_V1,_081196,_0393339,RM1000000024IQN,

PROCEDURE

1.CHECK CONNECTION OF CONNECTORS

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Check that the connectors are properly connected to the airbag sensor assembly and rear seat inner belt assembly LH.

Result:

Proceed to
Connectors are properly connected
Connectors are not properly connected

Connectors are properly connected

2.CHECK CONNECTORS

Connectors are not properly connected

CONNECT CONNECTORS PROPERLY

2.CHECK CONNECTORS

0.344,1.208 0.656,1.406 0.313,0.198 10 false *1 1.156,0.958 1.469,1.156 0.313,0.198 10 false *3 1.76,0.938 2.073,1.135 0.313,0.198 10 false *4 2.688,1.563 3,1.76 0.313,0.198 10 false *2

*1	Rear Seat Inner Belt Assembly LH
*2	Airbag Sensor Assembly
*3	Rear Center Seat Inner Belt Assembly
*4	Floor Wire

Disconnect the connectors from the airbag sensor assembly and rear seat inner belt assembly LH.

Check that the connectors (on the airbag sensor assembly side and rear seat inner belt assembly LH side) are not damaged.

Result:

Proceed to
Connectors are not deformed or damaged
Connectors are deformed or damaged

Connectors are not deformed or damaged

3.CHECK FLOOR WIRE

Connectors are deformed or damaged

REPLACE REAR CENTER SEAT INNER BELT ASSEMBLY OR FLOOR WIRE

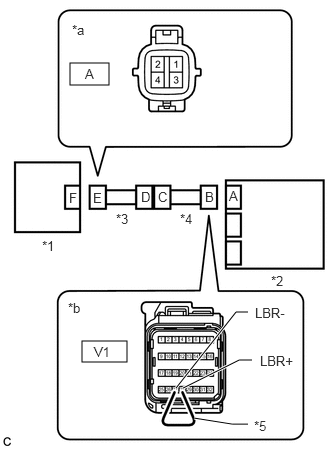

3.CHECK FLOOR WIRE

0.854,3.552 1.323,3.771 0.469,0.219 0.729,0.656 1.135,0.885 0.406,0.229 1.906,4.042 2.49,3.75 2.49,3.75 2.625,3.75 true 1.833,4.042 2.458,3.25 2.458,3.25 2.583,3.25 true 2.021,4.354 2.417,4.417 2.417,4.417 2.583,4.417 true 0.438,2.479 0.75,2.635 0.313,0.156 10 false *1 2.823,2.844 3.135,3 0.313,0.156 10 false *2 1.208,2.198 1.521,2.354 0.313,0.156 10 false *3 2.646,4.354 2.958,4.51 0.313,0.156 10 false *5 0.75,0.229 1.063,0.385 0.313,0.156 10 false *a 0.708,3.125 1.021,3.281 0.313,0.156 10 false *b 0.979,3.583 1.292,3.74 0.313,0.156 10 false V1 0.885,0.688 1.198,0.844 0.313,0.156 10 false A 2.656,3.177 3.063,3.344 0.406,0.167 10 false LBR- 2.708,3.677 3.115,3.844 0.406,0.167 10 false LBR+ 2.385,1.958 2.698,2.115 0.313,0.156 10 false A 2.135,1.969 2.448,2.125 0.313,0.156 10 false B 1.646,1.969 1.958,2.125 0.313,0.156 10 false C 1.469,1.969 1.781,2.125 0.313,0.156 10 false D 0.969,1.979 1.125,2.177 0.156,0.198 10 false E 0.719,1.979 0.875,2.177 0.156,0.198 10 false F 1.875,2.198 2.188,2.354 0.313,0.156 10 false *4

*1	Rear Seat Inner Belt Assembly LH
*2	Airbag Sensor Assembly
*3	Rear Center Seat Inner Belt Assembly
*4	Floor Wire
*5	Service Wire
*a	Front view of wire harness connector (to Rear Seat Inner Belt Assembly LH)
*b	Front view of wire harness connector (to Airbag Sensor Assembly)

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
A-1 - Body ground	Ignition switch ON	Below 1 V
A-2 - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 28 (LBR+) and 27 (LBR-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A-1 - A-2	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A-1 - A-2	Always	1 MΩ or higher
A-1 - Body ground	Always	1 MΩ or higher
A-2 - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

4.CHECK DTC

7.INSPECT REAR CENTER SEAT INNER BELT ASSEMBLY

4.CHECK DTC

0.51,1.365 0.823,1.563 0.313,0.198 10 false *1 2.552,1.719 2.865,1.917 0.313,0.198 10 false *2

*1	Rear Seat Inner Belt Assembly LH
*2	Airbag Sensor Assembly

Connect the connectors to the airbag sensor assembly and rear seat inner belt assembly LH.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Clear DTCs: 50002 188

Turn the ignition switch off.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Trouble Codes: 50001 188

Result:

Proceed to
DTC B165C is not output
DTC B165C is output

HINT:: Codes other than DTC B165C may be output at this time, but they are not related to this check.

DTC B165C is output

5.REPLACE REAR SEAT INNER BELT ASSEMBLY LH

DTC B165C is not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_V1,_078841,_0386803,RM100000001GTWY,

5.REPLACE REAR SEAT INNER BELT ASSEMBLY LH

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Replace the rear seat inner belt assembly LH.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL201902,999999,_58,_078602,_0389892,RM100000001HBV9,

HINT:: Perform the inspection using parts from a normal vehicle if possible.

Result:

Proceed to
NEXT

6.CHECK DTC

0.51,1.365 0.823,1.563 0.313,0.198 10 false *1 2.552,1.719 2.865,1.917 0.313,0.198 10 false *2

*1	Rear Seat Inner Belt Assembly LH
*2	Airbag Sensor Assembly

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Clear DTCs: 50002 188

Turn the ignition switch off.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Trouble Codes: 50001 188

Result:

Proceed to
DTC B165C is not output
DTC B165C is output

HINT:: Codes other than DTC B165C may be output at this time, but they are not related to this check.

DTC B165C is not output

END (REAR SEAT INNER BELT ASSEMBLY LH WAS DEFECTIVE)

DTC B165C is output

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL201902,201906,_58,_079257,_0384942,RM100000001GJ8V,201906,999999,_58,_079257,_0384942,RM100000001IN22,

7.INSPECT REAR CENTER SEAT INNER BELT ASSEMBLY

Remove the rear center seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL201902,999999,_58,_078602,_0389892,RM100000001HBV9,

Inspect the rear seat inner belt assembly.

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>INSPECTION201902,999999,_58,_078602,_0389892,RM100000001HBVA,

Result:

Proceed to
OK
NG

REPLACE FLOOR WIRE

REPLACE REAR CENTER SEAT INNER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>REAR SEAT INNER BELT ASSEMBLY (for Van)>REMOVAL201902,999999,_58,_078602,_0389892,RM100000001HBV9,
