RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604911 SFI SYSTEM C

M20F-FXS, M20G-FXS ENGINE CONTROL  SFI SYSTEM  P050B00  Cold Start Ignition Timing Performance


MONITOR DESCRIPTION

A monitor will run when the engine is started at an engine coolant temperature of -10 (14°F) or higher, and less than 50°C (122°F). If certain conditions are met, a DTC is stored after the engine idles for 13 seconds (2 trip detection logic).

This DTC is designed to monitor the ignition timing at cold start. When the engine is started at an engine coolant temperature of less than 50°C (122°F), the ECM checks the ignition timing during engine idling. If the ignition timing advances beyond the specified level within 10 seconds, the ECM interprets this as a malfunction, illuminates the MIL and stores this DTC.

NOTICE:

The idle speed control learned values are cleared by performing learning value reset. Idle speed control learning needs to be performed before this DTC can be stored.

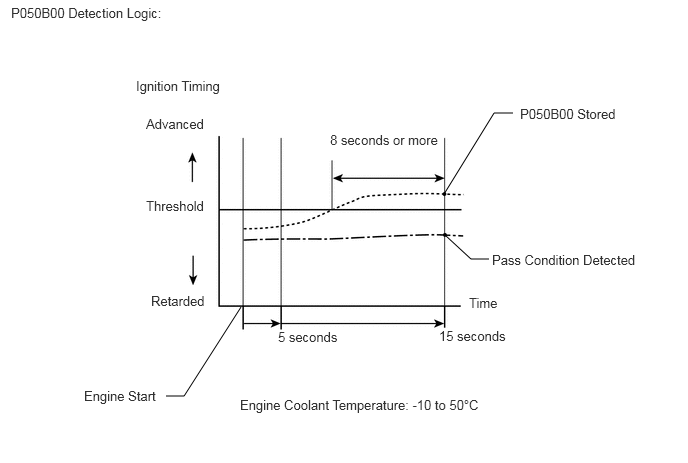

A235493E28
2.51,3.198 1.917,4.125 false 1.917,4.125 1.729,4.125 false 4.646,2.458 4.906,2.698 false 4.906,2.698 5.094,2.698 false 4.625,2.021 5.146,1.177 false 5.146,1.177 5.344,1.177 false 1.417,0.813 2.333,0.99 0.917,0.177 10 false Ignition Timing 1.521,1.208 2.156,1.385 0.635,0.177 10 false Advanced 1.573,3.052 2.167,3.229 0.594,0.177 10 false Retarded 1.521,2.063 2.156,2.24 0.635,0.177 10 false Threshold 0.875,4.042 1.656,4.219 0.781,0.177 10 false Engine Start 2.896,3.427 3.635,3.604 0.74,0.177 10 false 5 seconds 4.573,3.417 5.354,3.594 0.781,0.177 10 false 15 seconds 4.885,3.073 5.208,3.25 0.323,0.177 10 false Time 5.125,2.625 6.667,2.802 1.542,0.177 10 false Pass Condition Detected 3.438,1.375 4.615,1.635 1.177,0.26 10 false 8 seconds or more 5.417,1.104 6.76,1.49 1.344,0.385 10 false P050B00 Stored 0.115,0.052 2.146,0.24 2.031,0.188 10 false P050B00 Detection Logic: 2.5,4.135 5.104,4.313 2.604,0.177 10 false Engine Coolant Temperature: -10 to 50°C

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note
P050B00 Cold Start Ignition Timing Performance Ignition timing insufficiently retarded at cold start (2 trip detection logic).
·

Throttle body with motor assembly

·

Mass air flow meter

·

PCV system

·

Air cleaner filter element sub-assembly

·

Intake system

·

VVT system

·

EGR valve assembly

·

Wire harness or connector

·

ECM


Comes on SAE Code: P050B

MONITOR STRATEGY

Required Sensors/Components (Main) Throttle body with motor assembly
Required Sensors/Components (Related) Engine coolant temperature sensor
Mass air flow meter
Frequency of Operation Once per driving cycle

TYPICAL MALFUNCTION THRESHOLDS

Accumulated time when ignition timing retard is cut off 8 seconds or more

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON.

7.

Turn the GTS on.

9.

Start the engine and warm it up for 5 minutes or more.

10.

Stop the engine.

11.

Leave the vehicle outside overnight.

12.

Turn the ignition switch to ON [A].

13.

Turn the GTS on.

14.

Enter the following menus: Powertrain / Engine / Data List / Coolant Temperature.

15.

Check that the value of the Data List item Coolant Temperature is between -10 and 50°C (14 and 122°F).

17.

Start the engine and warm it up until the engine coolant temperature is the same as the coolant temperature in the Freeze Frame Data.

18.

Idle the engine for 1 minute or more [B].

19.

Enter the following menus: Powertrain / Engine / Trouble Codes [C].

20.

Read the pending DTC.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



21.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

22.

Input the DTC: P050B00.

23.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

If the judgment result is INCOMPLETE, idle the engine for 3 minutes, let the engine cool down, and then perform steps [A] through [C] again.

·

Idle the engine for 3 minutes, let the engine cool down, and then perform steps [A] through [C]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)

(Select Powertrain in Health Check and then check the time stamp data.)

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)



HINT:
·

DTC P050B00 may be set when the engine has the symptoms listed below. If necessary, check the trouble areas listed below.

Symptoms Factor Trouble Area
Low idle speed when engine is cold
(immediately after engine start)
Excessive engine friction Engine oil deterioration
Rough idle when engine is cold
(immediately after engine start)
Abnormal combustion Fuel quality

·

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can be helpful in determining whether the vehicle was moving or stationary, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.



PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P050B00)
a.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTC P050B00 is output A
DTC P050B00 and other DTCs are output B


HINT:

If any DTCs other than P050B00 are output, troubleshoot those DTCs first.




A

2.READ VALUE USING GTS

B

GO TO DTC CHART

2.READ VALUE USING GTS
HINT:

Calculate the total fuel trim values to check the characteristic deviation of the mass air flow meter.


a.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

b.

Start the engine.


c.

Enter the following menus.

Powertrain > Engine > Data List
Tester Display
Short FT B1S1
Long FT B1S1
50003 372 207,209

d.

Read the values displayed on the GTS at engine idle.


e.

Add the Short FT B1S1 and Long FT B1S1 values to obtain the total fuel trim.

Standard:
GTS Display Specified Condition
Total of Short FT B1S1 and Long FT B1S1 Between -20 and 20%



Result:
Proceed to
OK
NG



OK

3.INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY (VISUALLY CHECK THROTTLE VALVE)

NG

7.CHECK PCV VALVE AND HOSE CONNECTIONS
3.INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY (VISUALLY CHECK THROTTLE VALVE)
a.

Check for foreign matter between the throttle valve and housing. If necessary, clean the throttle body with motor assembly. Also, check that the throttle valve moves smoothly.

OK:

Throttle valve is not contaminated with foreign matter and moves smoothly.



Result:
Proceed to
OK
NG



OK

4.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)

NG

6.REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY
4.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)
a.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

b.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.



c.

Enter the following menus.

Powertrain > Engine > Active Test
Active Test Display
Control the EGR Step Position
Data List Display
Intake Manifold Absolute Pressure
Coolant Temperature
Engine Independent
50004 372 25 385,205,428

d.

Confirm that the value of Data List item Engine Independent is "Operate" then check the value of Intake Manifold Absolute Pressure while performing the Active Test.

NOTICE:
·

Make sure that the value of Data List item Engine Independent is "Operate" while performing the Active Test.

·

Do not leave the EGR valve open for 10 seconds or more during the Active Test.

·

Be sure to return the EGR valve to step 0 when the Active Test is completed.

·

Do not open the EGR valve 30 steps or more during the Active Test.



OK:

The value of Intake Manifold Absolute Pressure changes in response to the EGR step position when the value of Engine Independent is "Operate".


Standard:
- Control the EGR Step Position (Active Test)
0 Steps 0 to 30 Steps
Intake Manifold Absolute Pressure
(Data List)
(EGR valve is fully closed) Intake Manifold Absolute Pressure value is at least +10 kPa (1.45 psi) higher than when EGR valve is fully closed


HINT:
·

If the value of Data List item Engine Independent is "Not Opr" when the engine is idling, charge control is being performed. Perform the Active Test after charge control is complete ("Operate" is displayed).

·

While performing the Active Test, if the increase in the value of Intake Manifold Absolute Pressure is small, the EGR valve assembly may be malfunctioning.

·

Even if the EGR valve assembly is malfunctioning, rough idling or an increase in the value of Intake Manifold Absolute Pressure may occur while performing the Active Test. However, the amount that the value of Intake Manifold Absolute Pressure increases will be smaller than normal.




Result:
Proceed to
OK
NG



OK

14.CLEAR DTC

NG

5.INSPECT EGR VALVE ASSEMBLY
5.INSPECT EGR VALVE ASSEMBLY

b.

Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.



Result:
Proceed to
OK
NG



OK

14.CLEAR DTC

NG

17.REPLACE EGR VALVE ASSEMBLY
6.REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY

NEXT

21.CLEAR DTC
7.CHECK PCV VALVE AND HOSE CONNECTIONS
A539669

a.

Check the PCV hose connections.



OK:

PCV hose and PCV valve are connected correctly and are not damaged.


Result:
Proceed to
OK
NG



OK

8.CHECK INTAKE SYSTEM

NG

20.REPAIR OR REPLACE PCV VALVE OR HOSE
8.CHECK INTAKE SYSTEM

Result:
Proceed to
OK
NG



OK

9.CHECK AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

NG

19.REPAIR OR REPLACE INTAKE SYSTEM
9.CHECK AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
a.

Visually check that the air cleaner filter element sub-assembly is not excessively contaminated with dirt or oil.

OK:

The air cleaner filter element sub-assembly is not excessively contaminated with dirt or oil.



Result:
Proceed to
OK
NG



OK

10.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)

NG

18.REPLACE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
10.PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)
a.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

b.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.



c.

Enter the following menus.

Powertrain > Engine > Active Test
Active Test Display
Control the EGR Step Position
Data List Display
Intake Manifold Absolute Pressure
Coolant Temperature
Engine Independent
50004 372 25 385,205,428

d.

Confirm that the value of Data List item Engine Independent is "Operate" then check the value of Intake Manifold Absolute Pressure while performing the Active Test.

NOTICE:
·

Make sure that the value of Data List item Engine Independent is "Operate" while performing the Active Test.

·

Do not leave the EGR valve open for 10 seconds or more during the Active Test.

·

Be sure to return the EGR valve to step 0 when the Active Test is completed.

·

Do not open the EGR valve 30 steps or more during the Active Test.



OK:

The value of Intake Manifold Absolute Pressure changes in response to the EGR step position when the value of Engine Independent is "Operate".


Standard:
- Control the EGR Step Position (Active Test)
0 Steps 0 to 30 Steps
Intake Manifold Absolute Pressure
(Data List)
(EGR valve is fully closed) Intake Manifold Absolute Pressure value is at least +10 kPa (1.45 psi) higher than when EGR valve is fully closed


HINT:
·

If the value of Data List item Engine Independent is "Not Opr" when the engine is idling, charge control is being performed. Perform the Active Test after charge control is complete ("Operate" is displayed).

·

While performing the Active Test, if the increase in the value of Intake Manifold Absolute Pressure is small, the EGR valve assembly may be malfunctioning.

·

Even if the EGR valve assembly is malfunctioning, rough idling or an increase in the value of Intake Manifold Absolute Pressure may occur while performing the Active Test. However, the amount that the value of Intake Manifold Absolute Pressure increases will be smaller than normal.




Result:
Proceed to
OK
NG



OK

12.PERFORM ACTIVE TEST USING GTS (CHECK VVT SYSTEM)

NG

11.INSPECT EGR VALVE ASSEMBLY
11.INSPECT EGR VALVE ASSEMBLY

b.

Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.



Result:
Proceed to
OK
NG



OK

12.PERFORM ACTIVE TEST USING GTS (CHECK VVT SYSTEM)

NG

17.REPLACE EGR VALVE ASSEMBLY
12.PERFORM ACTIVE TEST USING GTS (CHECK VVT SYSTEM)
a.

Operate the VVT system through the Active Test, and check if the VVT system is operating normally.

i.

Perform the Active Test, referring to DTC P001100 Procedure (VVT-iE system for intake camshaft).

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>P001100


ii.

Perform the Active Test, referring to DTC P001400 Procedure (VVT-i system for exhaust camshaft).

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>P001400



Result:
Proceed to
OK
NG



OK

13.READ VALUE USING GTS (MASS AIR FLOW SENSOR)

NG

16.CHECK AND REPAIR VVT SYSTEM
13.READ VALUE USING GTS (MASS AIR FLOW SENSOR)
a.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

b.

Start the engine.


c.

Turn the GTS on.


d.

Enter the following menus.

Powertrain > Engine > Data List
Tester Display
Engine Speed
Mass Air Flow Sensor
Coolant Temperature
50003 372 211,215,205

e.

Allow the engine to idle until Coolant Temperature is 75°C (167°F) or higher.


f.

Read Mass Air Flow Sensor while maintaining an engine speed of 2500 rpm.

HINT:

During charge control, the engine speed is set at idle. Therefore, the engine speed will not increase when the accelerator pedal is depressed. In this case, read the Data List after charge control has completed.


Standard:
GTS Display Condition Specified Condition
Mass Air Flow Sensor
·

Engine warmed up

·

Shift position: P

·

A/C: Off

·

Engine Speed: 2500 rpm


Between 5.5 and 18.6 gm/sec



Result:
Proceed to
OK
NG



OK

14.CLEAR DTC

NG

23.CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER CONNECTOR CONNECTION)
14.CLEAR DTC
a.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

b.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

15.CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)
15.CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)
NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).


a.

Enter the following menus.

Powertrain > Engine > Data List
Tester Display
Coolant Temperature
50003 372 205

b.

Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).


c.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

d.

Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.


e.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


f.

Enter the following menus.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

g.

Input the DTC: P050B00.


h.

Check the DTC judgment result.

Result:
Result Proceed to
NORMAL
(DTCs are not output)
A
ABNORMAL
(DTC P050B00 is output)
B




A

B

23.CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER CONNECTOR CONNECTION)
16.CHECK AND REPAIR VVT SYSTEM
a.

Check and repair the VVT system.

HINT:
·

Refer to DTC P001100 Inspection Procedure (VVT-iE system for intake camshaft).

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>P001100

·

Refer to DTC P001400 Inspection Procedure (VVT-i system for exhaust camshaft).

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>P001400




Result:
Proceed to
NEXT



NEXT

21.CLEAR DTC
18.REPLACE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
a.

Replace the air cleaner filter element sub-assembly.


Result:
Proceed to
NEXT



NEXT

21.CLEAR DTC
19.REPAIR OR REPLACE INTAKE SYSTEM
a.

Repair or replace the intake system.

HINT:

Perform "Inspection After Repair" after repairing or replacing the intake system.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
NEXT



NEXT

21.CLEAR DTC
20.REPAIR OR REPLACE PCV VALVE OR HOSE
a.

Repair or replace PCV valve or hose.


Result:
Proceed to
NEXT



NEXT

21.CLEAR DTC
21.CLEAR DTC
a.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

b.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

22.CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)
22.CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)
NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).


a.

Enter the following menus.

Powertrain > Engine > Data List
Tester Display
Coolant Temperature
50003 372 205

b.

Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).


c.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

d.

Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.


e.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


f.

Enter the following menus.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

g.

Input the DTC: P050B00.


h.

Check the DTC judgment result.

Result:
Result Proceed to
NORMAL
(DTCs are not output)
A
ABNORMAL
(DTC P050B00 is output)
B




A

END

B

23.CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER CONNECTOR CONNECTION)
23.CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER CONNECTOR CONNECTION)
a.

Check the connection and terminal contact pressure of connectors and wire harnesses between the mass air flow meter and ECM.

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>ELECTRONIC CIRCUIT INSPECTION PROCEDURE

HINT:

Repair any problems.



Result:
Proceed to
NEXT



NEXT

24.CLEAR DTC
24.CLEAR DTC
a.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

b.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

25.CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)
25.CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)
NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).


a.

Enter the following menus.

Powertrain > Engine > Data List
Tester Display
Coolant Temperature
50003 372 205

b.

Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).


c.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

d.

Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.


e.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


f.

Enter the following menus.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

g.

Input the DTC: P050B00.


h.

Check the DTC judgment result.

Result:
Result Proceed to
NORMAL
(DTCs are not output)
A
ABNORMAL
(DTC P050B00 is output)
B




A

END

B

26.CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
26.CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
a.

Disconnect the mass air flow meter connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C26-4 (VCC) - C141-78 (VCVG) Always Below 1 Ω
C26-3 (FG) - C141-101 (VG) Always Below 1 Ω
C26-2 (E2G) - C141-79 (E2G) Always Below 1 Ω
C26-4 (VCC) or C141-78 (VCVG) - Body ground and other terminals Always 10 kΩ or higher
C26-3 (FG) or C141-101 (VG) - Body ground and other terminals Always 10 kΩ or higher
C26-2 (E2G) or C141-79 (E2G) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

27.REPLACE MASS AIR FLOW METER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

27.REPLACE MASS AIR FLOW METER

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>MASS AIR FLOW METER>REMOVAL

HINT:
·

If the result of the inspection performed in step 13 (READ VALUE USING GTS (MASS AIR FLOW SENSOR)) indicated no problem, proceed to the next step without replacing the mass air flow meter.

·


Result:
Proceed to
NEXT



NEXT

28.CLEAR DTC
28.CLEAR DTC
a.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

b.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

29.CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED
29.CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED
NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).


a.

Enter the following menus.

Powertrain > Engine > Data List
Tester Display
Coolant Temperature
50003 372 205

b.

Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).


c.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

d.

Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.


e.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


f.

Enter the following menus.

Powertrain > Engine > Utility
Tester Display
All Readiness
50005 372 20

g.

Input the DTC: P050B00.


h.

Check the DTC judgment result.

Result:
Result Proceed to
NORMAL
(DTCs are not output)
A
ABNORMAL
(DTC P050B00 is output)
B




A

END

B
