RM38T0EC _51 Engine / Hybrid System _144996 M20F-FXS, M20G-FXS EMISSION CONTROL _0604305 EGR VALVE A

M20F-FXS, M20G-FXS EMISSION CONTROL EGR VALVE REMOVAL

CAUTION / NOTICE / HINT

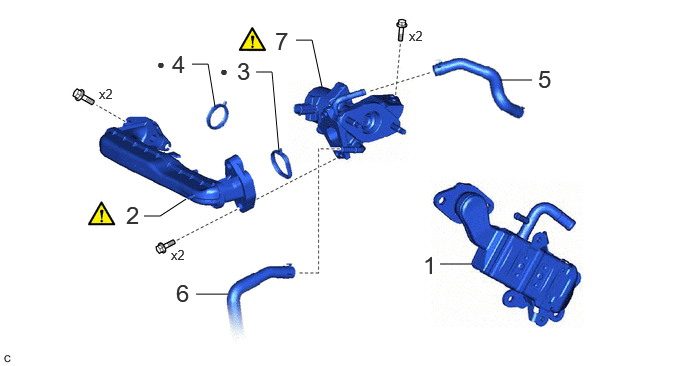

COMPONENTS (REMOVAL)

4.583,2.75 4.917,2.75 false 1.5,2.25 1.667,2.25 1.667,2.25 1.938,2.073 false 2.667,0.75 2.833,0.75 2.833,0.75 2.906,1.583 false 2,0.667 2.167,0.667 2.167,0.667 2.24,1.115 false 5.208,0.833 5.542,0.833 false 2.042,3.063 2.375,3.063 false 3.083,0.417 3.25,0.417 3.25,0.417 3.354,0.906 false 4.406,2.615 5.094,3.063 0.688,0.448 18 false 1 1.313,2.094 2,2.542 0.688,0.448 18 false 2 2.469,0.594 3.156,1.042 0.688,0.448 18 false 3 2.292,0.656 2.677,1.052 0.385,0.396 10 false ● 1.792,0.521 2.479,0.969 0.688,0.448 18 false 4 1.635,0.583 2.021,0.979 0.385,0.396 10 false ● 5.604,0.677 6.292,1.125 0.688,0.448 18 false 5 1.833,2.906 2.521,3.354 0.688,0.448 18 false 6 2.865,0.281 3.552,0.729 0.688,0.448 18 false 7 1.031,0.896 1.417,1.292 0.385,0.396 10 false x2 1.781,2.573 2.167,2.969 0.385,0.396 10 false x2 4.26,0.292 4.646,0.688 0.385,0.396 10 false x2

Procedure		Part Name Code
1	EGR COOLER ASSEMBLY	25680	-	-	-
2	NO. 1 EGR PIPE SUB-ASSEMBLY	25601	(202307,999999,_51,_144996,_0604305,RM100000002BTUJ_01_0044,)	-	-
3	EGR VALVE ADAPTER GASKET	25629	-	-	-

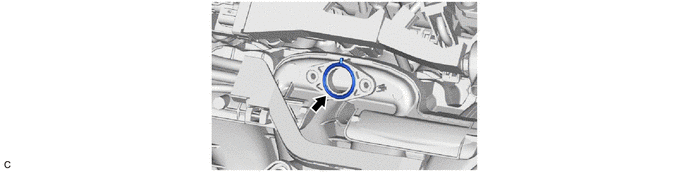

4	EGR INLET GASKET	25628	-	-	-

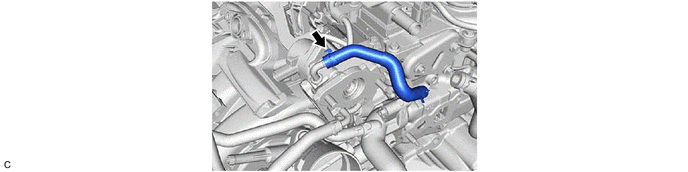

5	NO. 4 WATER BY-PASS HOSE	16281	-	-	-

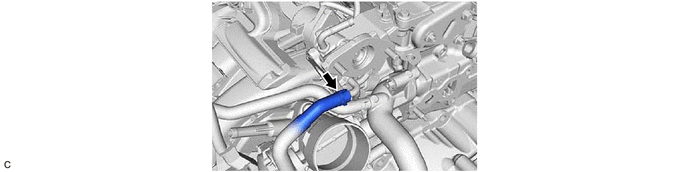

6	NO. 8 WATER BY-PASS HOSE	16296	-	-	-

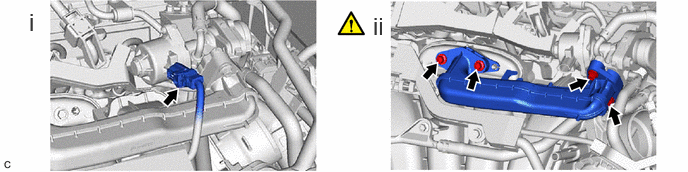

7	EGR VALVE ASSEMBLY	25620	(202307,999999,_51,_144996,_0604305,RM100000002BTUJ_01_0039,)	-	-

●

Non-reusable part

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during EGR valve assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of EGR valve assembly · Gas leaks from exhaust system is repaired	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202307,999999,_51,_144956,_0604911,RM100000002BWPD,)

NOTICE:: After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
