M20F-FXS, M20G-FXS INTAKE / EXHAUST INTAKE SYSTEM ON-VEHICLE INSPECTION
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced when repairing air leaks in the intake system are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Air leak from intake system is repaired | Inspection After Repair | ·
Poor idle, etc. ·
Engine start function, etc. |
( 202307,999999,_51,_144956,_0604911,RM100000002BWPD,)
|
PROCEDURE
1.INSPECT INTAKE SYSTEM
- CAUTION:
-
-
To prevent injury due to contact with an operating cooling fan, keep your hands and clothing away from the cooling fans when working in the engine compartment with the engine running or the power switch on (IG).
- HINT:
-
Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

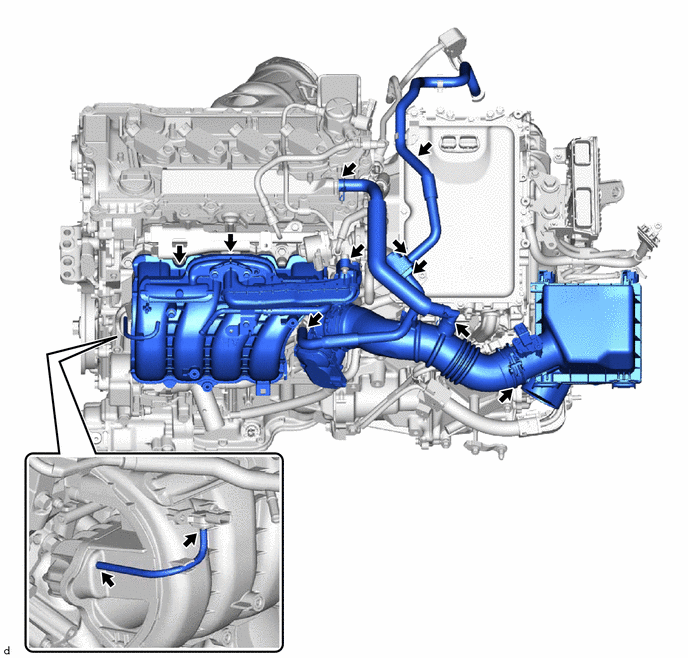

Check that there are no vacuum leaks at the points shown in the illustration.
2.PERFORM INITIALIZATION
Perform Inspection After Repair after repairing vacuum leaks in the intake system.
