RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604219 THROTTLE BODY A

M20F-FXS, M20G-FXS ENGINE CONTROL THROTTLE BODY REMOVAL

CAUTION / NOTICE / HINT

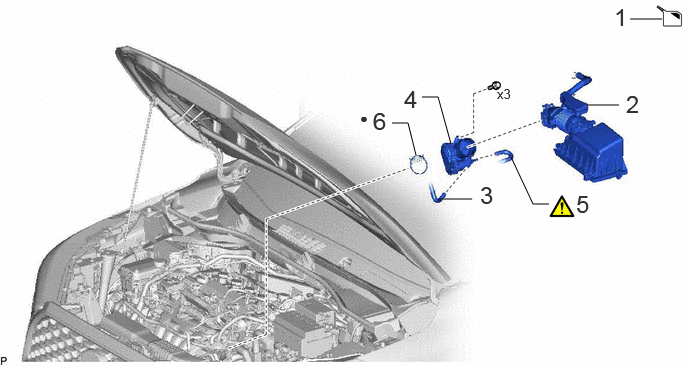

COMPONENTS (REMOVAL)

6.563,0.198 6.896,0.198 false 6.115,1.094 6.448,1.094 false 4.583,2.073 4.917,2.073 false 5.323,1.635 5.552,2.125 5.552,2.125 5.719,2.125 false 4.083,1.281 4.25,1.281 4.25,1.281 4.333,1.615 false 4.396,1.01 4.563,1.01 4.563,1.01 4.698,1.5 false 6.396,0.031 6.677,0.385 0.281,0.354 18 false 1 6.521,0.938 6.802,1.292 0.281,0.354 18 false 2 5,1.885 5.281,2.24 0.281,0.354 18 false 3 4.208,0.885 4.49,1.24 0.281,0.354 18 false 4 6,1.979 6.281,2.333 0.281,0.354 18 false 5 3.885,1.115 4.167,1.469 0.281,0.354 18 false 6 5.177,0.896 5.49,1.094 0.313,0.198 10 false x3 3.75,1.146 3.906,1.344 0.156,0.198 10 false ●

Procedure		Part Name Code
1	DRAIN ENGINE COOLANT	-	-	(202307,999999,_51,_144956,_0604219,RM100000002BTIE_01_0024,)	-
2	AIR CLEANER CAP WITH AIR CLEANER HOSE	-	-	-	-
3	NO. 8 WATER BY-PASS HOSE	16296	-	-	-
4	THROTTLE BODY WITH MOTOR ASSEMBLY	22030	-	-	-
5	NO. 5 WATER BY-PASS HOSE	-	(202307,999999,_51,_144956,_0604219,RM100000002BTIE_01_0028,)	-	-
6	THROTTLE BODY GASKET	22271	-	-	-

●

Non-reusable part

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during throttle body with motor assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of throttle body with motor assembly · Cleaning the deposits from the throttle body with motor assembly	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202307,999999,_51,_144956,_0604911,RM100000002BWPD,)

NOTICE:: This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.; Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION202307,999999,_V1,_107171,_0486700,RM100000002CS4V,

PROCEDURE

Hide Display 1.DRAIN ENGINE COOLANT

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS COOLANT (for Engine Coolant)>REPLACEMENT202307,999999,_V1,_104397,_0603003,RM100000002BNMN_01_0004,

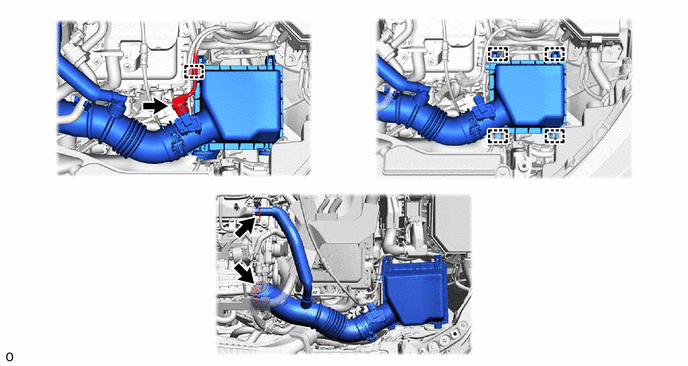

Hide Display 2.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

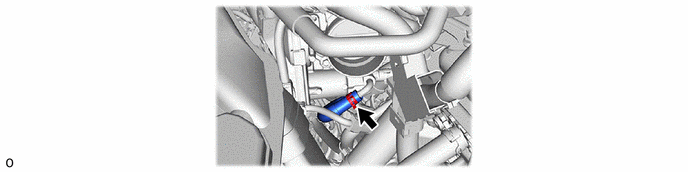

Hide Display 16296 3.DISCONNECT NO. 8 WATER BY-PASS HOSE

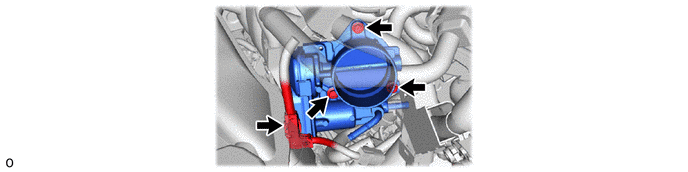

Hide Display 22030 4.REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

Hide Display 5.DISCONNECT NO. 5 WATER BY-PASS HOSE

NOTICE:: If the throttle body with motor assembly has been struck or dropped, replace it.

Hide Display 22271 6.REMOVE THROTTLE BODY GASKET
