RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604221 MASS AIR FLOW METER A

M20F-FXS, M20G-FXS ENGINE CONTROL  MASS AIR FLOW METER  REMOVAL


CAUTION / NOTICE / HINT

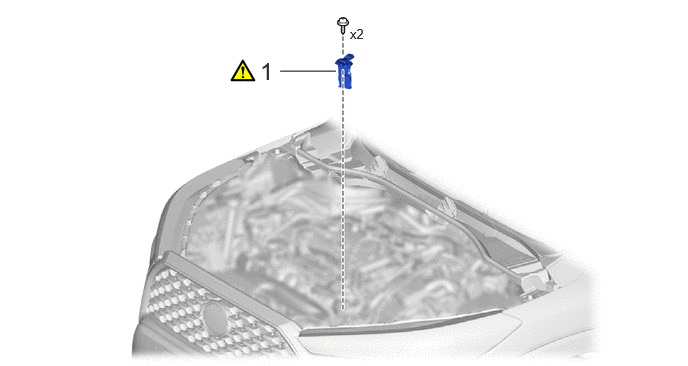

COMPONENTS (REMOVAL)
A521214N01
2.917,0.74 3.5,0.74 false 2.708,0.594 2.99,0.948 0.281,0.354 18 false 1 3.646,0.271 3.958,0.469 0.313,0.198 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 MASS AIR FLOW METER SUB-ASSEMBLY 22204 (Click here) - -

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during mass air flow meter sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Replacement of mass air flow meter sub-assembly Inspection After Repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

PROCEDURE

Hide 22204 1.REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

a.
A521215N01
0.271,0.083 0.552,0.438 0.281,0.354 18 false i 3.74,0.052 4.021,0.406 0.281,0.354 18 false ii

i.

Disconnect the mass air flow meter sub-assembly connector.


ii.

Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.

NOTICE:

If the mass air flow meter sub-assembly has been struck or dropped, replace it.
