RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604911 SFI SYSTEM C

M20F-FXS, M20G-FXS ENGINE CONTROL  SFI SYSTEM  P001400  Camshaft Position "B" - Timing Over-Advanced or System Performance Bank 1  P001500  Camshaft Position "B" - Timing Over-Retarded Bank 1


DESCRIPTION

Refer to DTC P001313.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>P001313

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note
P001400 Camshaft Position "B" - Timing Over-Advanced or System Performance Bank 1 Exhaust valve timing is stuck at a certain value when in the advance range (2 trip detection logic).
·

Valve timing

·

Cam timing oil control solenoid assembly

·

Camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly)

·

Camshaft timing exhaust gear assembly

·

ECM


Comes on SAE Code: P0014
P001500 Camshaft Position "B" - Timing Over-Retarded Bank 1 Exhaust valve timing is stuck at a certain value when in the retard range (1 trip detection logic).
·

Valve timing

·

Cam timing oil control solenoid assembly

·

Camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly)

·

Camshaft timing exhaust gear assembly

·

ECM


Comes on SAE Code: P0015

MONITOR DESCRIPTION

The ECM optimizes the exhaust valve timing using the Variable Valve Timing (VVT) system to control the exhaust camshaft. The VVT system includes the ECM, cam timing oil control solenoid assembly, camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) and camshaft timing exhaust gear assembly. The ECM sends a target duty-cycle control signal to the cam timing oil control solenoid assembly. The camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) is operated to control the oil pressure supplied to the camshaft timing exhaust gear assembly based on this signal. The camshaft timing gear assembly can advance or retard the exhaust camshaft.

If the difference between the target and actual exhaust valve timing is large, and changes in the actual exhaust valve timing are small, the ECM interprets this as the camshaft timing exhaust gear assembly stuck malfunction and stores a DTC.

Example:

A DTC is stored when the following conditions are met:

(a)

It takes 5 seconds or more to change the valve timing by 5°CA.

(b)

After the above condition is met, the cam timing oil control solenoid assembly is forcibly activated for 9.5 seconds.



These DTCs indicate that the camshaft timing exhaust gear assembly cannot operate properly due to a camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) malfunction or the presence of foreign matter in the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly).

MONITOR STRATEGY

Required Sensors/Components (Main) Cam timing oil control solenoid assembly
Camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly)
Camshaft timing exhaust gear assembly
Required Sensors/Components (Related) Crankshaft position sensor
Camshaft position sensor
Engine coolant temperature sensor
Frequency of Operation Continuous

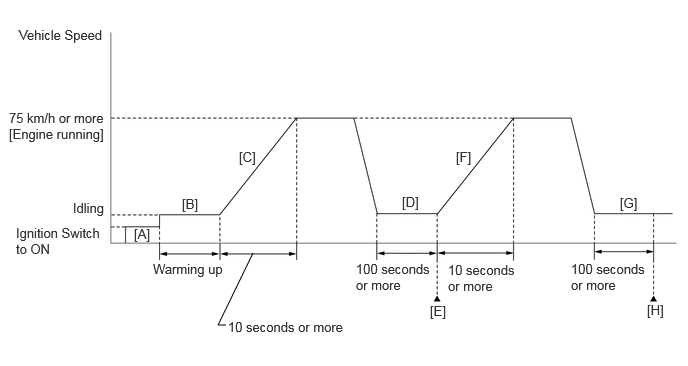

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·


A217996E81
2.635,2.635 2.271,3.385 2.271,3.385 2.354,3.385 false 0.198,0.281 1.115,0.479 0.917,0.198 10 false Vehicle Speed 0.094,1.146 1.125,1.635 1.031,0.49 10 false 75 km/h or more [Engine running] 0.76,2.083 1.115,2.271 0.354,0.188 10 false Idling 0.167,2.344 1.115,2.813 0.948,0.469 10 false Ignition Switch to ON 1.396,2.354 1.698,2.573 0.302,0.219 10 false [A] 1.896,2.042 2.25,2.26 0.354,0.219 10 false [B] 2.49,1.552 2.781,1.802 0.292,0.25 10 false [C] 4.188,2.021 4.573,2.302 0.385,0.281 10 false [D] 4.75,1.552 5.135,1.896 0.385,0.344 10 false [F] 4.479,3.156 4.688,3.333 0.208,0.177 10 false [E] 6.458,2.031 6.885,2.24 0.427,0.208 10 false [G] 6.74,3.146 6.948,3.323 0.208,0.177 10 false [H] 1.594,2.719 2.396,3.031 0.802,0.313 10 false Warming up 2.375,3.323 3.656,3.479 1.281,0.156 10 false 10 seconds or more 4.667,2.729 5.385,3.083 0.719,0.354 10 false 10 seconds or more 3.708,2.719 4.51,3.052 0.802,0.333 10 false 100 seconds or more 5.948,2.719 6.76,3.042 0.813,0.323 10 false 100 seconds or more

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

HINT:
·

P001400 is output:

Clear the DTC not using the GTS.

·

P001500 is output:

Clear the DTC using the GTS.



5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON[A].

7.

Turn the GTS on.

9.

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].

10.

With the engine running, accelerate the vehicle to 75 km/h (46 mph) or more by depressing the accelerator pedal for 10 seconds or more [C].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

If the engine stops, further depress the accelerator pedal to restart the engine.


11.

Idle the engine for 100 seconds or more [D].

HINT:
·

P001400 is output:

With the shift lever in P.

·

P001500 is output:

With the shift lever in D.



12.

Enter the following menus: Powertrain / Engine / Trouble Codes [E].

13.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



14.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

15.

Input the DTC: P001400 or P001500.

16.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.

·

If the judgment result is INCOMPLETE, perform steps [F] through [H].

·

[A] to [E]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.



17.

With the engine running, accelerate the vehicle to 75 km/h (46 mph) or more by depressing the accelerator pedal for 10 seconds or more [F].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

If the engine stops, further depress the accelerator pedal to restart the engine.


18.

Idle the engine for 100 seconds or more [G].

HINT:
·

P001400 is output:

With the shift lever in P.

·

P001500 is output:

With the shift lever in D.



19.

Enter the following menus: Powertrain / Engine / Trouble Codes [H].

20.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



21.

Check the DTC judgment result again.

HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.

·

[A] to [H]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




CAUTION / NOTICE / HINT

NOTICE:
·

Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)

(Select Powertrain in Health Check and then check the time stamp data.)

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)



HINT:
·

DTC P001400 or P001500 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. This foreign matter may then be captured by the oil filter.

·

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.



PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P001400 OR P001500)
a.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTC P001400 or P001500 is output A
DTC P001400 or P001500 and other DTCs are output B


HINT:

If any DTCs other than P001400 or P001500 are output, troubleshoot those DTCs first.




A

2.PERFORM ACTIVE TEST USING GTS (CONTROL THE EXHAUST VVT OCV DUTY RATIO BANK 1)

B

GO TO DTC CHART

2.PERFORM ACTIVE TEST USING GTS (CONTROL THE EXHAUST VVT OCV DUTY RATIO BANK 1)
a.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

b.

Start the engine.


c.

Enter the following menus.

Powertrain > Engine > Active Test
Tester Display
Control the Exhaust VVT OCV Duty Ratio Bank 1
50004 372 5

d.

Check the engine speed while operating the cam timing oil control solenoid assembly using the GTS.

OK:
GTS Operation Engine Condition
0% Normal engine speed
100% Engine idles roughly or stalls


HINT:
·

Refer to "Data List / Active Test" [Exhaust VVT Hold Learn Value Bank 1, Exhaust VVT Change Angle Bank 1, Exhaust VVT OCV Control Duty Ratio Bank 1 and Exhaust VVT Target Angle Bank 1].

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DATA LIST / ACTIVE TEST

·

Test not possible with the shift lever in P during charge control. Move the shift lever to N to perform test.

·

If the DTCs are stored after the Active Test, clear the DTCs.




Result:
Proceed to
OK
NG



OK

3.CLEAR DTC

NG

5.INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
3.CLEAR DTC
a.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372
HINT:
·

P001400 is output:

Clear the DTC not using the GTS.

·

P001500 is output:

Clear the DTC using the GTS.




b.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

4.CHECK WHETHER DTC OUTPUT RECURS (DTC P001400 OR P001500)
4.CHECK WHETHER DTC OUTPUT RECURS (DTC P001400 OR P001500)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTCs are not output A
DTC P001400 or P001500 is output B


HINT:

DTC P001400 or P001500 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. That foreign matter may then be captured by the oil filter.




A

B

5.INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
5.INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

OK

6.INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

NG

8.REPLACE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
6.INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

OK

7.CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMPED TEETH ON TIMING CHAIN)

NG

10.REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)
7.CHECK VALVE TIMING (CHECK FOR LOOSE AND JUMPED TEETH ON TIMING CHAIN)

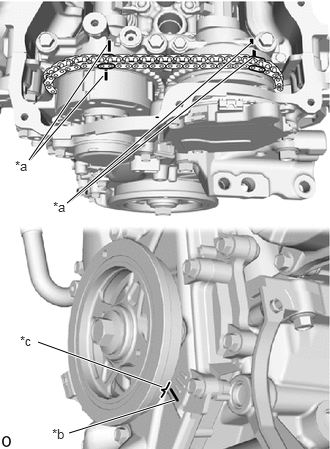

b.

Turn the crankshaft pulley and align its groove with the TDC timing mark of the timing chain cover.


c.
A433486C01
0.313,1.667 1.073,0.792 true 0.302,1.667 1.115,0.469 true 0.708,2.115 2.625,0.604 true 0.698,2.115 2.615,0.448 true 1.688,4.031 0.396,3.563 true 1.823,4.167 0.719,4.51 true 0.156,1.646 0.344,1.844 0.188,0.198 10 false *a 0.542,4.438 0.854,4.594 0.313,0.156 10 false *b 0.208,3.469 0.521,3.625 0.313,0.156 10 false *c 0.552,2.073 0.74,2.271 0.188,0.198 10 false *a
*a Timing Mark
*b TDC Timing Mark
*c Groove


Check that the timing marks of the camshaft timing gear assembly and camshaft timing exhaust gear assembly are at the positions shown in the illustration.

HINT:

If the timing marks are not as shown, turn the crankshaft one revolution clockwise.


OK:

Timing marks on camshaft timing gear assembly and camshaft timing exhaust gear assembly are at the positions shown in the illustration.


HINT:

If the result is not as specified, check for mechanical malfunctions that may have affected the valve timing, such as a jumped tooth or stretching of the timing chain.



Result:
Proceed to
OK
NG



OK

12.REPLACE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

8.REPLACE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

NEXT

9.INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)
9.INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

OK

11.PERFORM ACTIVE TEST USING GTS (CONTROL THE EXHAUST VVT OCV DUTY RATIO BANK 1)

NG

10.REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)
10.REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

NEXT

11.PERFORM ACTIVE TEST USING GTS (CONTROL THE EXHAUST VVT OCV DUTY RATIO BANK 1)
11.PERFORM ACTIVE TEST USING GTS (CONTROL THE EXHAUST VVT OCV DUTY RATIO BANK 1)
a.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

b.

Start the engine.


c.

Enter the following menus.

Powertrain > Engine > Active Test
Tester Display
Control the Exhaust VVT OCV Duty Ratio Bank 1
50004 372 5

d.

Check the engine speed while operating the cam timing oil control solenoid assembly using the GTS.

OK:
GTS Operation Engine Condition
0% Normal engine speed
100% Engine idles roughly or stalls


HINT:
·

Refer to "Data List / Active Test" [Exhaust VVT Hold Learn Value Bank 1, Exhaust VVT Change Angle Bank 1, Exhaust VVT OCV Control Duty Ratio Bank 1 and Exhaust VVT Target Angle Bank 1].

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DATA LIST / ACTIVE TEST

·

Test not possible with the shift lever in P during charge control. Move the shift lever to N to perform test.

·

If the DTCs are stored after the Active Test, clear the DTCs.




Result:
Proceed to
OK
NG



OK

END

NG

12.REPLACE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
12.REPLACE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

NEXT

13.CLEAR DTC
13.CLEAR DTC
a.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372
HINT:
·

P001400 is output:

Clear the DTC not using the GTS.

·

P001500 is output:

Clear the DTC using the GTS.




b.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

14.CHECK WHETHER DTC OUTPUT RECURS (DTC P001400 OR P001500)
14.CHECK WHETHER DTC OUTPUT RECURS (DTC P001400 OR P001500)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTCs are not output A
DTC P001400 or P001500 is output B




A

END

B
