RM38T0EC _51 Engine / Hybrid System _144958 M20F-FXS, M20G-FXS ENGINE MECHANICAL _0604262 ENGINE ASSEMBLY A

M20F-FXS, M20G-FXS ENGINE MECHANICAL  ENGINE ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed, or replaced during the engine assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
·

Replacement of engine assembly

·

Gas leaks from exhaust system is repaired


Inspection After Repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)
Replacement of inverter with converter assembly Resolver learning
·

DTCs are stored

·

Slight vibration at a vehicle speed of 5 km/h (3 mph) or less

·

Shock or vibration during acceleration


(Click here)
Replacement of hybrid vehicle transaxle assembly
·

Resolver learning

·

Initialize resolver


Front wheel alignment adjustment Perform "Calibration"
·

DTCs are stored

·

ABS warning light illuminates

·

Brake system warning light (yellow indicator) illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system does not operate correctly


(Click here)
Suspension, tires, etc.
(The vehicle height changes because of suspension or tire replacement.)
Parking assist ECU initialization Panoramic View Monitor System (Click here)

CAUTION:
·
A346363C01
2.219,0.813 2.646,0.813 false 2.698,0.729 3.01,0.927 0.313,0.198 10 false *a
*a An Object Exceeding Weight Limit of Engine Lifter


The engine assembly with transaxle is very heavy. Be sure to follow the procedure described in the repair manual, or the engine lifter may suddenly drop or the engine assembly with transaxle may fall off the engine lifter.

·
A344783

To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.



HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



CAUTION / NOTICE / HINT

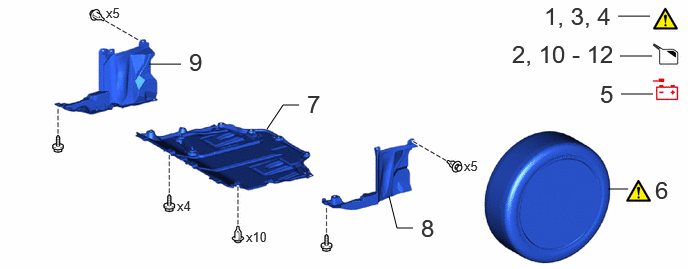

COMPONENTS (REMOVAL)
A531814N02
6.438,0.167 6.771,0.167 false 6.458,0.583 6.792,0.583 false 6.469,0.979 6.802,0.979 false 2.781,1.344 2.948,1.094 2.948,1.094 3.115,1.094 false 4.052,2.042 4.135,2.375 4.135,2.375 4.302,2.375 false 1.552,0.667 1.885,0.667 false 6.333,1.969 6.542,1.969 false 1.104,0.052 1.417,0.25 0.313,0.198 10 false x5 1.844,2.063 2.156,2.26 0.313,0.198 10 false x4 2.563,2.385 2.875,2.583 0.313,0.198 10 false x10 4.833,1.646 5.146,1.844 0.313,0.198 10 false x5 5.667,0.021 6.667,0.385 1,0.365 18 false 1, 3, 4 5.333,0.417 6.635,0.708 1.302,0.292 18 false 2, 10 - 12 6.25,0.833 6.51,1.167 0.26,0.333 18 false 5 6.823,1.833 7.083,2.167 0.26,0.333 18 false 6 4.385,2.229 4.646,2.563 0.26,0.333 18 false 8 3.198,0.938 3.458,1.271 0.26,0.333 18 false 7 1.969,0.5 2.229,0.833 0.26,0.333 18 false 9

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM - - (Click here) -
3 DISCHARGE FUEL SYSTEM PRESSURE - (Click here) - -
4 ALIGN FRONT WHEELS FACING STRAIGHT AHEAD - (Click here) - -
5 DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
6 FRONT WHEELS - (Click here) - -
7 NO. 1 ENGINE UNDER COVER ASSEMBLY 51410 - - -
8 REAR ENGINE UNDER COVER LH 51444A - - -
9 REAR ENGINE UNDER COVER RH 51443C - - -
10 DRAIN ENGINE OIL - - (Click here) -
11 DRAIN ENGINE COOLANT - - (Click here) -
12 DRAIN HYBRID TRANSAXLE FLUID - - (Click here) -

A528819N01
0.865,3 1.198,3 false 1.635,1.26 1.802,1.01 1.802,1.01 1.969,1.01 false 0.802,1.26 0.979,1.448 0.979,1.448 1.146,1.448 false 0.615,2.49 0.781,2.49 0.781,2.49 0.948,2.156 false 1.042,0.771 1.208,0.521 1.208,0.521 1.375,0.521 false 0.656,3.5 0.99,3.5 false 0.698,4.042 1.031,4.042 false 0.792,4.667 1.125,4.667 false 1,5.302 1.333,5.302 false 2.333,5.146 2.667,5.146 false 5.396,4.667 5.479,5 5.479,5 5.646,5 false 5.844,2.854 6.177,2.854 false 5.438,3.438 5.771,3.438 false 4.365,1.281 4.531,1.281 4.531,1.281 4.677,2.01 false 4.896,0.865 5.063,0.865 5.063,0.865 5.26,1.792 false 5.594,2.125 5.677,2.458 5.677,2.458 5.844,2.458 false 5.813,0.49 5.979,0.49 5.979,0.49 6.104,0.969 false 6.667,0.531 6.833,0.531 6.833,0.531 6.917,0.969 false 6.031,1.688 6.125,2.063 6.125,2.063 6.292,2.063 false 0.49,1.375 0.938,1.74 0.938,1.74 1.104,1.74 false 3.01,1.385 3.219,1.667 3.219,1.667 3.385,1.667 false 0.74,4.313 1.073,4.313 false 1.094,5.021 1.26,5.021 1.26,5.021 1.427,4.833 false 1.417,0.333 1.802,0.688 0.385,0.354 18 false 13 6.375,1.906 6.76,2.26 0.385,0.354 18 false 14 6.229,2.688 6.615,3.042 0.385,0.354 18 false 15 5.698,4.823 6.083,5.177 0.385,0.354 18 false 16 0.573,2.813 0.958,3.167 0.385,0.354 18 false 17 3.417,1.479 3.802,1.833 0.385,0.354 18 false 18 2.708,4.979 3.094,5.333 0.385,0.354 18 false 19 0.677,5.135 1.063,5.49 0.385,0.354 18 false 20 4.604,0.688 4.99,1.042 0.385,0.354 18 false 21 5.885,2.292 6.271,2.646 0.385,0.354 18 false 22 2.021,0.844 2.406,1.198 0.385,0.354 18 false 23 1.188,1.271 1.573,1.625 0.385,0.354 18 false 24 0.292,2.333 0.677,2.688 0.385,0.354 18 false 25 1.156,1.583 1.542,1.938 0.385,0.354 18 false 26 6.375,0.354 6.76,0.708 0.385,0.354 18 false 27 5.5,0.333 5.885,0.688 0.385,0.354 18 false 28 4.042,1.115 4.427,1.469 0.385,0.354 18 false 29 0.333,3.333 0.719,3.688 0.385,0.354 18 false 30 0.417,3.865 0.802,4.219 0.385,0.354 18 false 31 0.469,4.49 0.854,4.844 0.385,0.354 18 false 32 1.01,0.125 1.323,0.323 0.313,0.198 10 false x3 1.448,2.583 1.76,2.781 0.313,0.198 10 false x2 5.792,3.271 6.177,3.625 0.385,0.354 18 false 16 0.615,4.208 0.771,4.406 0.156,0.198 10 false 0.969,4.906 1.125,5.104 0.156,0.198 10 false

Procedure Part Name Code
Z101186

Z101188

Z101187

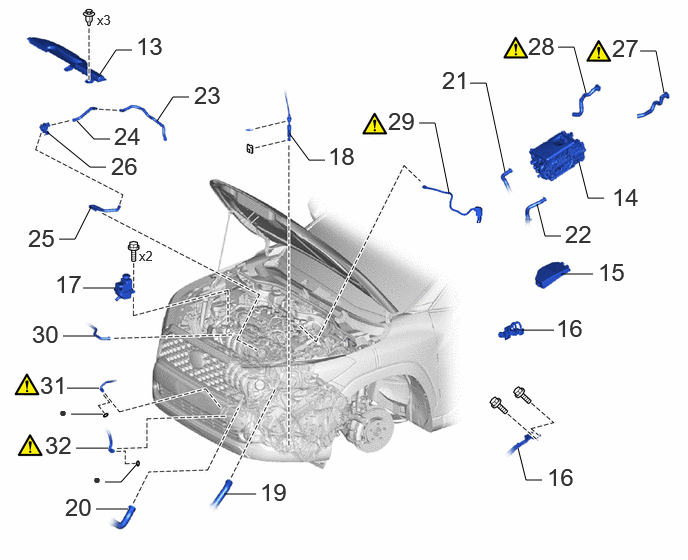

13 INLET NO. 1 AIR CLEANER 17751 - - -
14 INVERTER WITH CONVERTER ASSEMBLY G92A0 (Click here) - -
15 NO. 1 RELAY BLOCK COVER 82662A - - -
16 DISCONNECT ENGINE WIRE - - - -
17 INVERTER RESERVE TANK ASSEMBLY G910GB - - -
18 TRANSMISSION CONTROL CABLE ASSEMBLY 33820B - - -
19 NO. 1 RADIATOR HOSE 16571C - - -
20 NO. 2 RADIATOR HOSE 16572D - - -
21 INLET HYBRID RADIATOR HOSE G922H - - -
22 NO. 1 INVERTER COOLING OUTLET HOSE G922C - - -
23 NO. 3 FUEL VAPOR FEED HOSE 23827F - - -
24 NO. 2 FUEL VAPOR FEED HOSE 23827A - - -
25 NO. 1 FUEL VAPOR FEED HOSE 23826 - - -
26 PURGE VALVE (PURGE VSV) 25860 - - -
27 INLET HEATER WATER HOSE - (Click here) - -
28 OUTLET HEATER WATER HOSE - (Click here) - -
29 FUEL TUBE SUB-ASSEMBLY 23901 (Click here) - -
30 WATER BY-PASS HOSE 16283B - - -
31 DISCHARGE HOSE SUB-ASSEMBLY 88703 (Click here) - -
32 SUCTION HOSE SUB-ASSEMBLY 88704 (Click here) - -

Non-reusable part - -

A545636N01
6.5,0.188 6.833,0.188 false 6.375,1.448 6.458,1.198 6.458,1.198 6.625,1.198 false 0.896,0.396 1.031,0.24 1.031,0.24 1.198,0.24 false 0.365,2.01 0.542,1.802 0.542,1.802 0.708,1.802 false 1.167,2.583 1.333,2.583 1.333,2.583 1.417,2.333 false 4.26,1.479 4.427,1.781 4.427,1.781 4.594,1.781 false 0.563,1.208 0.896,1.208 false 1.469,0.094 2.021,0.448 0.552,0.354 18 false 35 0.938,1.656 1.49,2.01 0.552,0.354 18 false 36 6.656,1.01 7.073,1.344 0.417,0.333 18 false 37 0.833,2.417 1.385,2.771 0.552,0.354 18 false 39 0.927,1.042 1.479,1.396 0.552,0.354 18 false 34 6.177,0 6.729,0.354 0.552,0.354 18 false 33 6.75,1.542 7.063,1.74 0.313,0.198 10 false x3 6.708,2.042 7.021,2.24 0.313,0.198 10 false x12 4.865,1.594 5.417,1.948 0.552,0.354 18 false 38 3.385,1.99 3.698,2.188 0.313,0.198 10 false x2 3.125,1.771 3.438,1.969 0.313,0.198 10 false x2 5.427,0.813 5.74,1.01 0.313,0.198 10 false x2 5.208,1.021 5.521,1.219 0.313,0.198 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

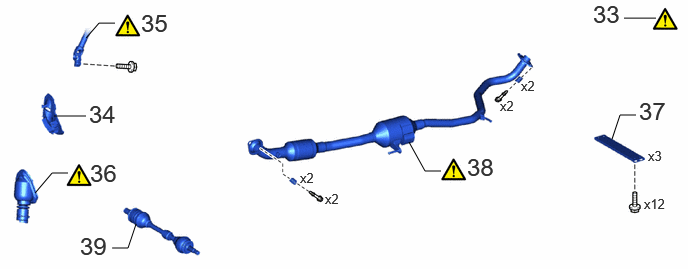

33 SECURE STEERING WHEEL - (Click here) - -
34 COLUMN HOLE COVER SILENCER SHEET 45259A - - -
35 NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY 45260 (Click here) - -
36 NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY 45025D (Click here) - -
37 FRONT FLOOR CENTER BRACE 57533B - - -
38 FRONT EXHAUST PIPE ASSEMBLY 17410 (Click here) - -
39 DRIVE SHAFT ASSEMBLY - - - -

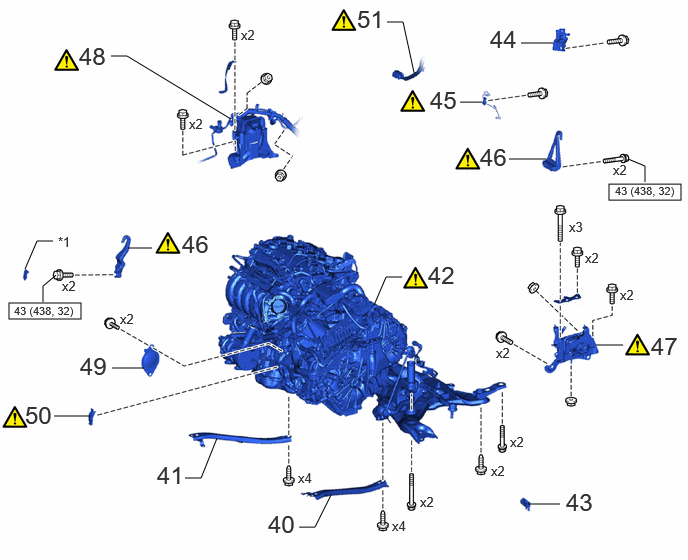

A531816N02
6.344,1.917 7.094,2.083 0.75,0.167 0.094,3.156 0.844,3.323 0.75,0.167 1.156,0.583 1.323,0.583 1.323,0.583 2.406,1.24 false 1.333,2.583 1.583,2.583 false 0.563,4.333 0.938,4.333 false 1.167,3.833 1.5,3.833 false 1.927,4.979 2.094,4.979 2.094,4.979 2.26,4.563 false 3.115,5.49 3.281,5.49 3.281,5.49 3.448,5.156 false 5.5,5.25 5.833,5.25 false 4.188,2.885 4.021,2.885 4.021,2.885 3.896,3.177 false 6.208,3.594 6.49,3.594 false 6.719,1.896 6.719,1.729 6.719,1.729 6.542,1.656 false 0.448,3.146 0.448,2.979 0.448,2.979 0.583,2.865 false 4.792,1.063 5.021,1.063 false 5.302,1.656 5.688,1.656 false 5.427,0.448 5.76,0.448 false 4.031,0.229 4.198,0.229 4.198,0.229 4.313,0.76 false 0.552,2.51 0.385,2.51 0.385,2.51 0.26,2.802 false 2.792,5.313 3.344,5.667 0.552,0.354 18 false 40 1.635,4.802 2.188,5.156 0.552,0.354 18 false 41 4.458,2.719 5.01,3.073 0.552,0.354 18 false 42 5.896,5.083 6.448,5.438 0.552,0.354 18 false 43 5.104,0.26 5.656,0.615 0.552,0.354 18 false 44 4.479,0.896 5.031,1.25 0.552,0.354 18 false 45 5,1.49 5.552,1.844 0.552,0.354 18 false 46 6.781,3.458 7.104,3.76 0.323,0.302 18 false 47 0.823,0.438 1.375,0.792 0.552,0.354 18 false 48 0.833,3.667 1.385,4.021 0.552,0.354 18 false 49 0.26,4.177 0.813,4.531 0.552,0.354 18 false 50 3.719,0.052 4.271,0.406 0.552,0.354 18 false 51 3.104,4.896 3.417,5.094 0.313,0.198 10 false x4 4.083,5.396 4.396,5.594 0.313,0.198 10 false x4 4.375,5.146 4.688,5.344 0.313,0.198 10 false x2 5.115,4.823 5.427,5.021 0.313,0.198 10 false x2 5.313,4.521 5.625,4.719 0.313,0.198 10 false x2 6.094,2.604 6.406,2.802 0.313,0.198 10 false x2 6.385,1.688 6.698,1.885 0.313,0.198 10 false x2 6.406,1.917 7.115,2.115 0.708,0.198 8 false 43 (438, 32) 2.51,0.281 2.823,0.479 0.313,0.198 10 false x2 6.458,2.99 6.771,3.188 0.313,0.198 10 false x2 0.146,3.167 0.854,3.365 0.708,0.198 8 false 43 (438, 32) 1.896,2.396 2.448,2.75 0.552,0.354 18 false 46 0.646,2.896 0.958,3.094 0.313,0.198 10 false x2 1.25,3.24 1.563,3.438 0.313,0.198 10 false x2 1.969,1.208 2.281,1.406 0.313,0.198 10 false x2 5.927,2.281 6.24,2.479 0.313,0.198 10 false x3 5.167,3.594 5.479,3.792 0.313,0.198 10 false x2 0.604,2.438 0.917,2.635 0.313,0.198 10 false *1

Procedure Part Name Code
Z101186

Z101188

Z101187

40 REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH 51108A - - -
41 REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH 51107A - - -
42 ENGINE ASSEMBLY WITH TRANSAXLE - (Click here) - -
43 DIFFERENTIAL PRESSURE SENSOR 89481B - - -
44 EMISSION CONTROL VALVE BRACKET - - - -
45 WIRE HARNESS CLAMP BRACKET - (Click here) - -
46 ENGINE HANGERS - (Click here) - -
47 ENGINE MOUNTING INSULATOR LH 12372A (Click here) - -
48 ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH 12305 (Click here) - -
49 STARTER HOLE INSULATOR 28193 - - -
50 FLYWHEEL HOUSING SIDE COVER 11363A (Click here) - -
51 HIGH VOLTAGE AIR CONDITIONING WIRE 821H2A (Click here) - -

*1 ENGINE MOUNTING BRACKET CAP - -
V100146

N*m (kgf*cm, ft.*lbf): Specified torque - -

A545654N01
0.083,4.583 3.417,5.75 3.333,1.167 6.458,0.229 6.792,0.229 false 5.948,1.115 6.333,1.583 6.333,1.583 6.5,1.583 false 5.115,2.063 5.448,2.063 false 3.885,3.552 4.063,3.188 4.063,3.188 4.229,3.188 false 3.104,4 3.104,3.875 3.104,3.875 3.188,3.708 false 0.781,2.74 1.115,2.74 false 1.583,1.542 1.75,1.542 1.75,1.542 2.115,1.885 false 2.375,1.156 2.646,1.156 false 4.781,4.01 4.979,3.698 4.979,3.698 5.146,3.698 false 1.479,5.083 1.646,5.083 false 2.771,5.104 2.938,5.104 false 2.167,4.583 2.167,5.75 false 2.052,1.021 2.469,1.344 0.417,0.323 18 false 52 6.792,1.417 7.156,1.76 0.365,0.344 18 false 53 1.208,1.427 1.625,1.75 0.417,0.323 18 false 54 1.875,4.927 2.302,5.25 0.427,0.323 18 false 55 5.479,3.594 5.896,3.917 0.417,0.323 18 false 57 4.552,3.063 4.969,3.385 0.417,0.323 18 false 58 2.99,4.052 3.406,4.375 0.417,0.323 18 false 59 6.135,0.052 6.552,0.375 0.417,0.323 18 false 60 0.469,2.615 0.885,2.938 0.417,0.323 18 false 61 0.448,3.073 0.76,3.271 0.313,0.198 10 false x2 0.865,5.448 1.177,5.646 0.313,0.198 10 false x2 5.625,2.406 5.938,2.604 0.313,0.198 10 false x2 5.542,1.927 5.958,2.25 0.417,0.323 18 false 61 4.198,4.135 4.51,4.333 0.313,0.198 10 false x8 5.125,4.344 5.438,4.542 0.313,0.198 10 false x6 3.198,0.104 3.51,0.302 0.313,0.198 10 false x2 2.563,0.323 2.875,0.521 0.313,0.198 10 false x2 4.958,5.177 5.271,5.375 0.313,0.198 10 false x2 2.146,3.885 2.458,4.083 0.313,0.198 10 false x4 4.938,1.26 5.25,1.458 0.313,0.198 10 false x2 2.479,4.927 2.906,5.25 0.427,0.323 18 false 56 0.75,5.198 1.063,5.396 0.313,0.198 10 false x2 0.229,5.198 0.542,5.396 0.313,0.198 10 false x2 2.719,5.458 3.031,5.656 0.313,0.198 10 false x4 0.125,4.604 0.438,4.802 0.313,0.198 12 false *A 2.198,4.604 2.51,4.802 0.313,0.198 12 false *B

Procedure Part Name Code
Z101186

Z101188

Z101187

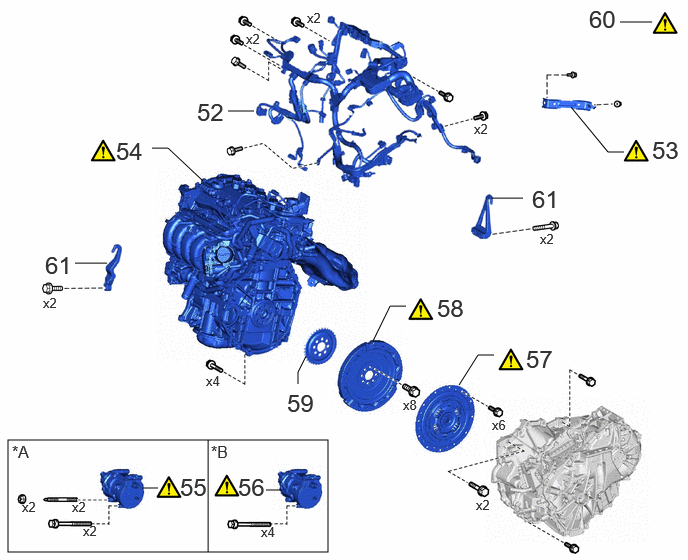

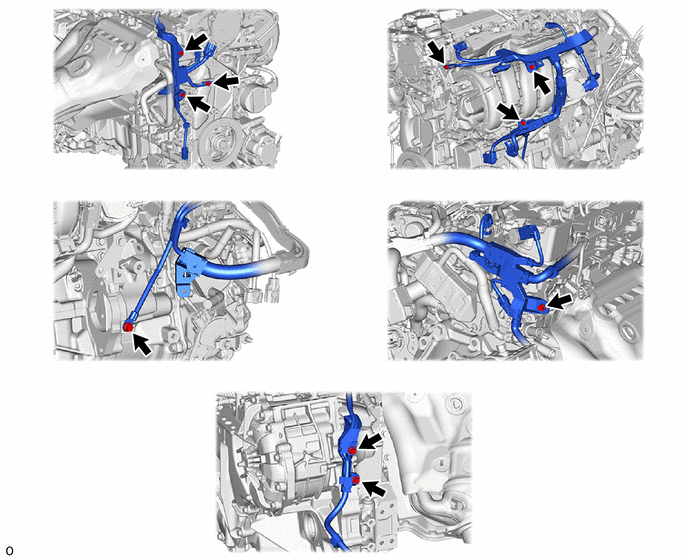

52 REMOVE ENGINE WIRE 82121 - - -
53 MANIFOLD STAY 17118 (Click here) - -
54 ENGINE ASSEMBLY - (Click here) - -
55 COMPRESSOR WITH MOTOR ASSEMBLY 88370 (Click here) - -
56 COMPRESSOR WITH MOTOR ASSEMBLY 88370 (Click here) - -
57 TRANSMISSION INPUT DAMPER ASSEMBLY 31270 (Click here) - -
58 FLYWHEEL SUB-ASSEMBLY 13405 (Click here) - -
59 NO. 1 CRANKSHAFT POSITION SENSOR PLATE 19315 - - -
60 ENGINE TO ENGINE STAND - (Click here) - -
61 REMOVE ENGINE HANGERS - - - -

*A for FTMC Made *B for GTMC Made

PROCEDURE

Hide 3. DISCHARGE FUEL SYSTEM PRESSURE

Hide 4. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Hide 6.REMOVE FRONT WHEELS

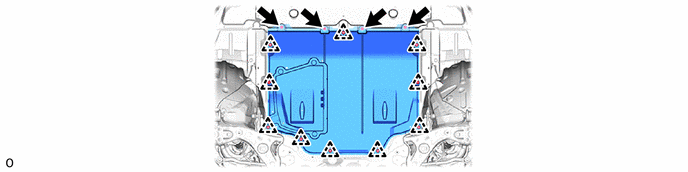

Hide 51410 7.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

a.
A528128

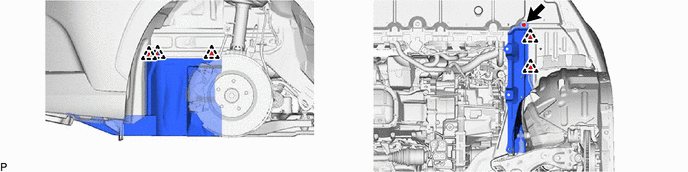

Hide 51444A 8.REMOVE REAR ENGINE UNDER COVER LH

a.
A468260


Hide 51443C 9.REMOVE REAR ENGINE UNDER COVER RH

a.

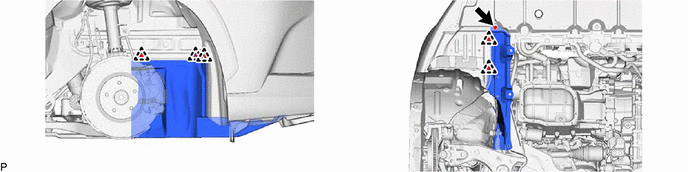

A468261


Hide G9200 14.REMOVE INVERTER WITH CONVERTER ASSEMBLY

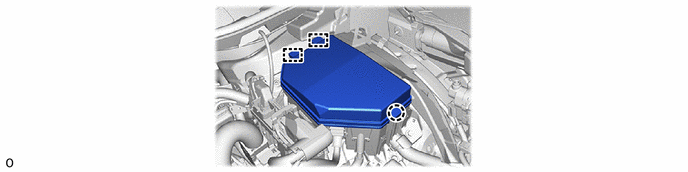

Hide 82662A 15.REMOVE NO. 1 RELAY BLOCK COVER

a.
A528131


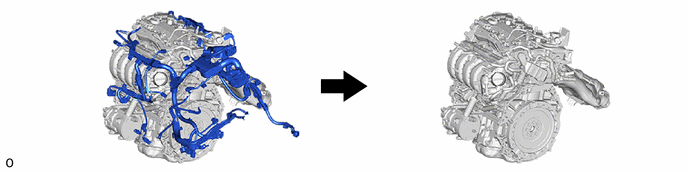

Hide 16.DISCONNECT ENGINE WIRE

a.

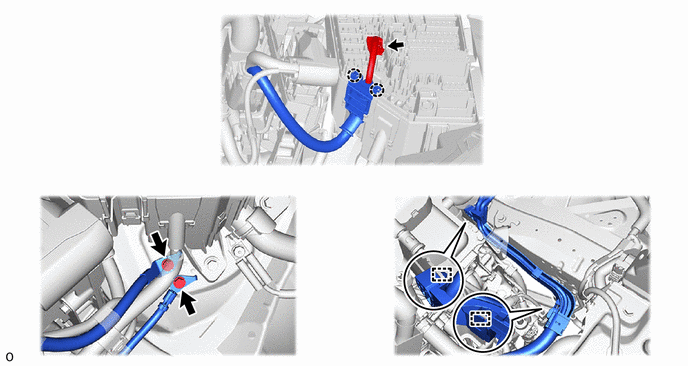

A545638

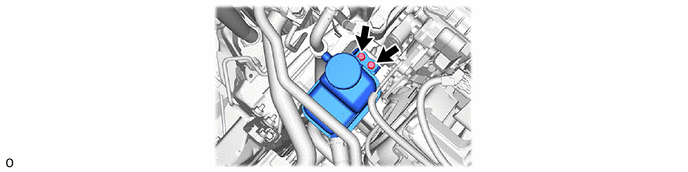

Hide G910GB 17.DISCONNECT INVERTER RESERVE TANK ASSEMBLY

a.
A528133


Hide 33820B 18.DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

a.

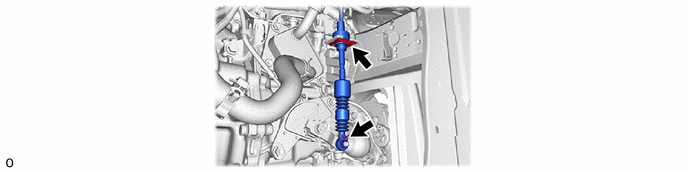

A528134

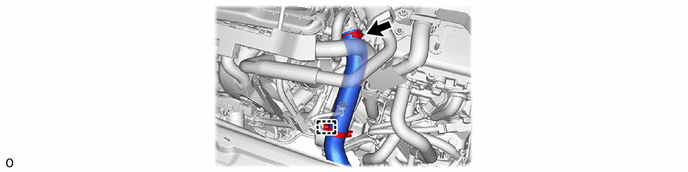

Hide 16571C 19.DISCONNECT NO. 1 RADIATOR HOSE

a.
A528135

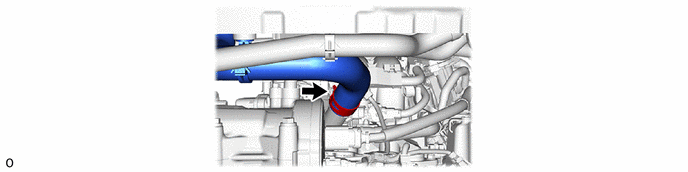

Hide 16572D 20.DISCONNECT NO. 2 RADIATOR HOSE

a.
A528136


Hide G922H 21.DISCONNECT INLET HYBRID RADIATOR HOSE

a.

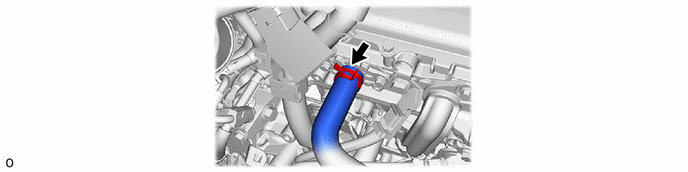

A528137


Hide G922C 22.DISCONNECT NO. 1 INVERTER COOLING OUTLET HOSE

a.

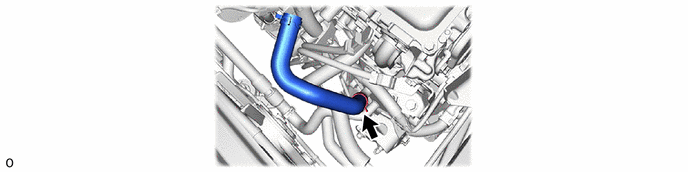

A528138


Hide 23827F 23.REMOVE NO. 3 FUEL VAPOR FEED HOSE

a.

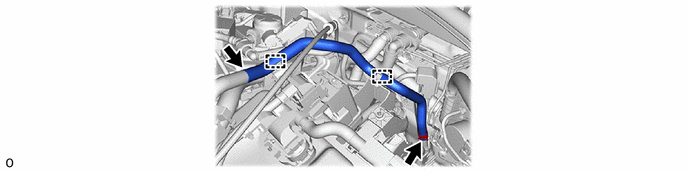

A528139

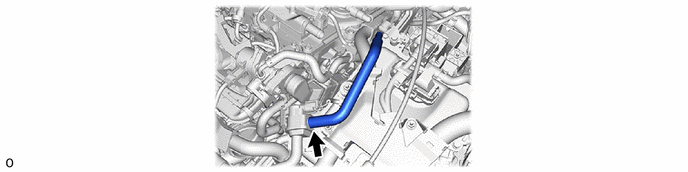

Hide 23827A 24.REMOVE NO. 2 FUEL VAPOR FEED HOSE

a.
A528140


Hide 23826 25.REMOVE NO. 1 FUEL VAPOR FEED HOSE

a.

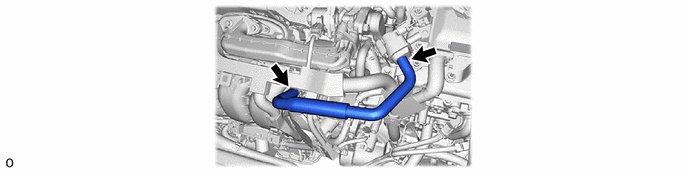

A528141


Hide 27.DISCONNECT INLET HEATER WATER HOSE

a.

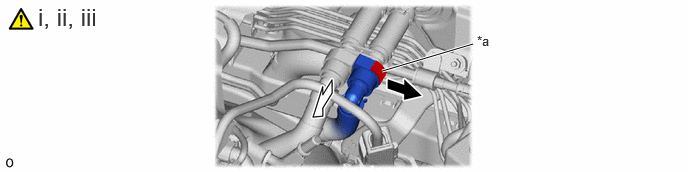

A528142C03
3.979,0.74 4.927,0.458 true 0.396,0.031 1.115,0.354 0.719,0.323 18 false i, ii, iii 4.969,0.344 5.156,0.542 0.188,0.198 10 false *a
*a Retainer - -
V100135

Pull out
V100136

Pull off


i.

Pull out the retainer to disengage the lock claws and pull off the inlet heater water hose.


ii.

Check that there is no foreign matter on the sealing surfaces of the disconnected water lines. Clean them if necessary.


iii.

Cover the disconnected water hose sub-assembly and inlet heater water hose connector with plastic bags to prevent damage and contamination.

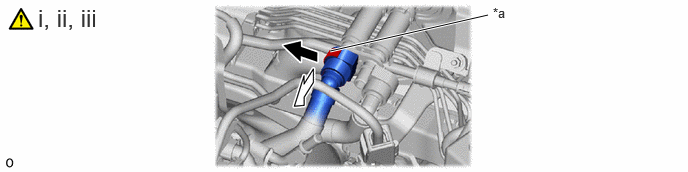

Hide 28.DISCONNECT OUTLET HEATER WATER HOSE

a.
A528143C03
5.083,0.156 3.438,0.531 true 0.396,0.042 1.156,0.365 0.76,0.323 18 false i, ii, iii 5.135,0.052 5.448,0.25 0.313,0.198 10 false *a
*a Retainer - -
V100135

Pull out
V100136

Pull off


i.

Pull out the retainer to disengage the lock claws and pull off the outlet heater water hose.


ii.

Check that there is no foreign matter on the sealing surfaces of the disconnected water lines. Clean them if necessary.


iii.

Cover the disconnected water hose sub-assembly and outlet heater water hose connector with plastic bags to prevent damage and contamination.



Hide 23901 29.DISCONNECT FUEL TUBE SUB-ASSEMBLY

a.

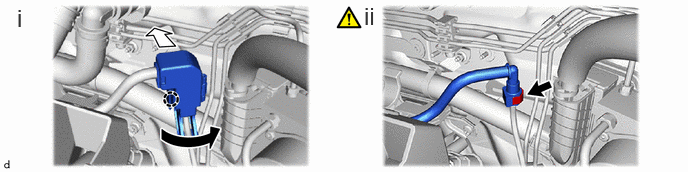

A528144N01
0.177,0.042 0.458,0.396 0.281,0.354 18 false i 3.792,0.021 4.073,0.375 0.281,0.354 18 false ii

i.

Disengage the claw and remove the No. 1 fuel pipe clamp as shown in the illustration.




Hide 16283B 30.DISCONNECT WATER BY-PASS HOSE

a.

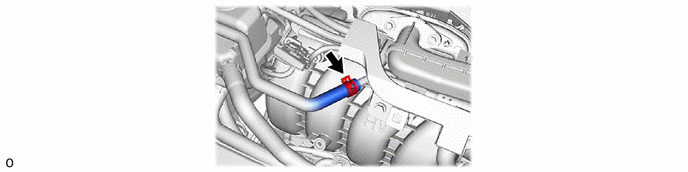

A528145


Hide 88703 31.DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

Hide 88704 32.DISCONNECT SUCTION HOSE SUB-ASSEMBLY

Hide 33. SECURE STEERING WHEEL

Hide 45260 35.DISCONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

Hide 45025D 36.SEPARATE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

Hide 17410 38.REMOVE FRONT EXHAUST PIPE ASSEMBLY

Hide 51107A 41.REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.


Hide 42.REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

a.

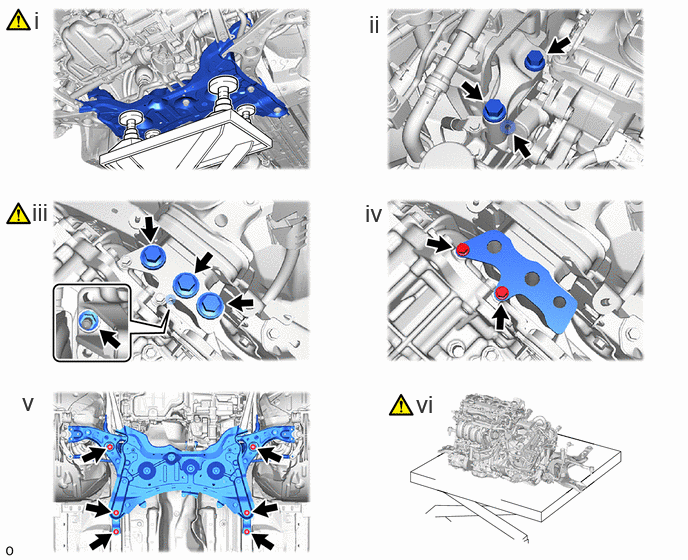

A528146N01
0.354,0.063 0.635,0.417 0.281,0.354 18 false i 3.844,0.104 4.125,0.458 0.281,0.354 18 false ii 0.333,2.063 0.615,2.417 0.281,0.354 18 false iii 3.802,2.073 4.083,2.427 0.281,0.354 18 false iv 0.229,4.042 0.51,4.396 0.281,0.354 18 false v 4.333,4.063 4.615,4.417 0.281,0.354 18 false vi

i.

Set the engine assembly with transaxle on an engine lifter.

NOTICE:
·

Using height adjustment attachments and plate lift attachments, keep the engine assembly with transaxle and front suspension crossmember sub-assembly level.

·

Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.

·

To prevent the engine assembly from unexpectedly moving, securely support the engine assembly until it is secured to an engine stand.

·

To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly with transaxle.




ii.

Remove the 2 bolts and nut and separate the engine mounting insulator sub-assembly RH from the engine mounting bracket RH.


iii.

Remove the 3 bolts and nut and separate the engine mounting insulator LH from the hybrid vehicle transaxle assembly.


iv.

Remove the bolt and No. 2 engine mounting stay LH.


v.

Remove the 4 bolts to separate the front suspension crossmember sub-assembly from the vehicle.


vi.

Operate the engine lifter and remove the engine assembly with transaxle from the vehicle.

NOTICE:
·

Make sure that the engine assembly with transaxle is clear of all wiring and hoses.

·

While lowering the engine assembly with transaxle from the vehicle, do not allow it to contact the vehicle.





Hide 44.REMOVE EMISSION CONTROL VALVE BRACKET

a.

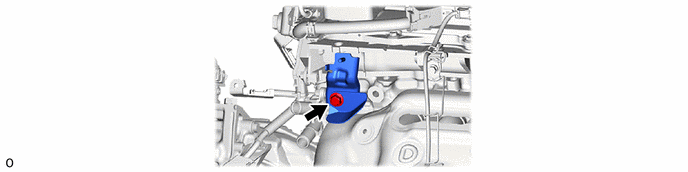

A528148


Hide 45.REMOVE WIRE HARNESS CLAMP BRACKET

Hide 46.INSTALL ENGINE HANGERS

a.

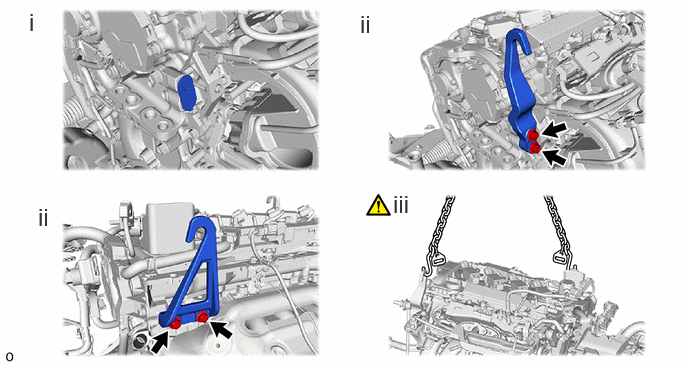

A528147C02
0.302,0.083 0.583,0.438 0.281,0.354 18 false i 3.75,0.104 4.031,0.458 0.281,0.354 18 false ii 0.396,2.115 0.677,2.469 0.281,0.354 18 false ii 4.094,1.979 4.375,2.333 0.281,0.354 18 false iii
*1 No. 1 Engine Hanger *2 No. 2 Engine Hanger
V100135

Bolt - -


i.

Remove the cap.


ii.

Install the No. 1 engine hanger and No. 2 engine hanger with the 4 bolts as shown in the illustration.

Torque:
43 N*m (438 kgf*cm, 32 ft.*lbf)

HINT:
No. 1 Engine Hanger 12281-25030
No. 2 Engine Hanger 12282-25010
Bolt 91552-F1040
90105-W0313



iii.

Attach an engine sling device and hang the engine assembly with transaxle with a chain block.

NOTICE:
·

Pay attention to the angle of the sling device as the engine assembly or No. 1 engine hanger and No. 2 engine hanger may be damaged or deformed if the angle is incorrect.

·

Do not perform any procedure while the engine assembly with transaxle is suspended because doing so may cause the engine assembly with transaxle to drop, resulting in injury. However, the engine assembly with transaxle needs to be suspended when it is installed to or removed from an engine stand.





Hide 12372A 47.REMOVE ENGINE MOUNTING INSULATOR LH

Z101186

HINT:

Perform this procedure only when replacement of the engine mounting insulator LH is necessary.



a.

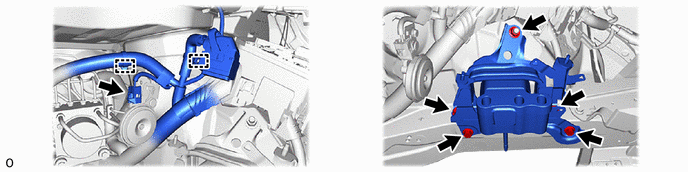

A528150

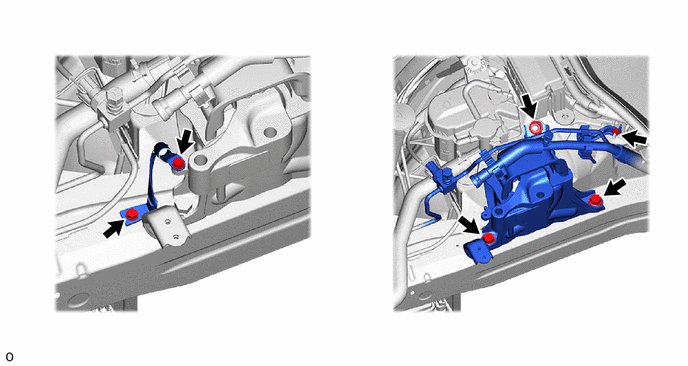

Hide 12305 48.REMOVE ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

Z101186

HINT:

Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.



a.
A528152


Hide 11363A 50.REMOVE FLYWHEEL HOUSING SIDE COVER

a.

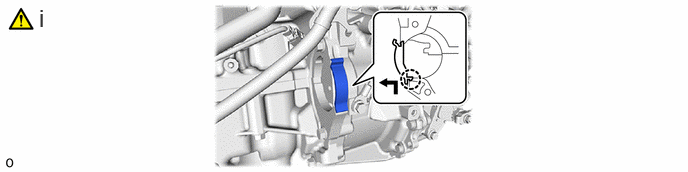

A528153N01
0.406,0.042 0.688,0.396 0.281,0.354 18 false i

i.

Remove the flywheel housing side cover from the cylinder block sub-assembly.

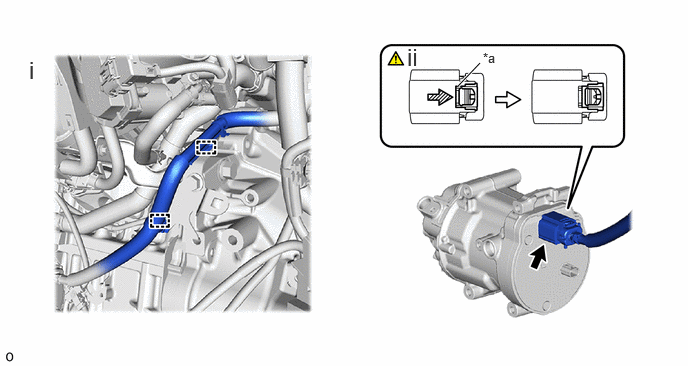

Hide 821H2A 51.DISCONNECT HIGH VOLTAGE AIR CONDITIONING WIRE

a.
A528154C02
4.771,0.896 5,0.656 true 0.302,0.583 0.583,0.938 0.281,0.354 18 false i 4.24,0.448 4.521,0.802 0.281,0.354 18 false ii 5.031,0.521 5.344,0.719 0.313,0.198 10 false *a
*a Green-colored Lock - -
V100137

Slide - -


i.

Disengage the 2 clams to disconnect the HV air conditioning wire from the hybrid vehicle transaxle assembly.


ii.

Using a screwdriver, slide the green-colored lock of the connector as shown in the illustration to release it and disconnect the connector.

CAUTION:

Make sure to wear insulated gloves.


NOTICE:

Insulate the disconnected terminals and connector with insulating tape.




Hide 82121 52.REMOVE ENGINE WIRE

a.
A528155


b.
A528156

HINT:

The illustrations are representative examples, and details may differ.



Hide 17118 53.REMOVE MANIFOLD STAY

Hide 54.REMOVE ENGINE ASSEMBLY

Hide 88370 55.REMOVE COMPRESSOR WITH MOTOR ASSEMBLY (for FTMC Made)

Hide 88370 56.REMOVE COMPRESSOR WITH MOTOR ASSEMBLY (for GTMC Made)

Hide 31270 57.REMOVE TRANSMISSION INPUT DAMPER ASSEMBLY

Hide 13405 58.REMOVE FLYWHEEL SUB-ASSEMBLY

Hide 60.INSTALL ENGINE TO ENGINE STAND

a.

Install the engine assembly to an engine stand.


Hide 61.REMOVE ENGINE HANGERS

a.

Remove the 4 bolts, No. 1 engine hanger and No. 2 engine hanger.
