HYBRID / BATTERY CONTROL MOTOR GENERATOR CONTROL SYSTEM P0A7873 Drive Motor "A" Inverter Actuator Stuck Closed
DTC SUMMARY
MALFUNCTION DESCRIPTION
This DTC is stored when a short is detected in the inverter with converter assembly (motor inverter) or the hybrid vehicle transaxle assembly (motor (MG2)). The cause of this malfunction may be one of the following:
Motor inverter internal circuit malfunction
Open or short circuit
Iron particles or damage from foreign objects
DESCRIPTION
For a description of the inverter.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Warning Indicate | Note |
|---|---|---|---|---|---|---|
| P0A7873 | Drive Motor "A" Inverter Actuator Stuck Closed | Current flow to any phase of the motor (MG2) exceeds the threshold after the motor inverter is shut down due to a DTC indicating a motor inverter malfunction (overheating, overcurrent or circuit malfunction) being stored.
(1 trip detection logic) |
·
Inverter with converter assembly ·
Motor cable ·
Hybrid vehicle transaxle assembly |
Comes on | Master Warning:
Comes on |
SAE Code:
P0A78 |
MONITOR DESCRIPTION
The motor generator control ECU monitors the motor inverter electric current. If the current exceeds the threshold for a specified period of time, the motor generator control ECU will illuminate the MIL and store a DTC.
MONITOR STRATEGY
| Related DTCs | P0A78 (INF P0A7873): MFIV detection (Short circuit malfunction) |
| Required sensors/components | Motor inverter |
| Frequency of operation | Continuous |
| Duration | TMC's intellectual property |
| MIL operation | 1 driving cycle |
| Sequence of operation | None |
TYPICAL ENABLING CONDITIONS
| The monitor will run whenever the following DTCs are not stored | TMC's intellectual property |
| Other conditions belong to TMC's intellectual property | - |
TYPICAL MALFUNCTION THRESHOLDS
| TMC's intellectual property | - |
COMPONENT OPERATING RANGE
| Motor generator control ECU | DTC P0A78 (INF P0A7873) is not detected |
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for 2 minutes or more.
Turn the ignition switch to ON and wait for 5 seconds or more. [*1]
Turn the ignition switch to ON (READY) and wait for 5 seconds or more. [*2]
Drive the vehicle for approximately 10 minutes mainly using the engine. [*3]
- NOTICE:
-
As the state of charge of the HV battery may be low after driving in fail-safe mode, it will automatically be charged for 5 to 10 minutes with ignition switch ON (READY) after repairs have been performed.
- HINT:
-
[*1] to [*3]: Normal judgment procedure.
-
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
Enter the following menus: Powertrain / Motor Generator / Utility / All Readiness.
Check the DTC judgment result.
- HINT:
- ·
If the judgment result shows NORMAL, the system is normal.
·If the judgment result shows ABNORMAL, the system has a malfunction.
·If the judgment result shows INCOMPLETE, perform the normal judgment procedure again.
WIRING DIAGRAM
Refer to the wiring diagram for the Motor High-voltage Circuit.
CAUTION / NOTICE / HINT
- CAUTION:
-
Refer to the precautions before inspecting high voltage circuit.
- NOTICE:
- ·
After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
·When disconnecting and reconnecting the auxiliary battery.
- HINT:
-
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
·DTC P0A7873 is stored after DTCs P0A789E and/or P1C5D19 are stored. After troubleshooting and repairing the malfunction which caused DTC P0A7873 to be stored, be sure to troubleshoot the other DTCs.
·Depending on the conditions in which the vehicle is being operated when a short circuit occurs in the inverter with converter assembly, the hybrid vehicle transaxle assembly may be affected. As this DTC is stored if a short circuit occurs in the inverter with converter assembly, it is necessary to perform a road test to check the hybrid vehicle transaxle assembly. If problems are found, replace the malfunctioning parts.
·After completing the repair, including the repair of previously output DTCs, drive the vehicle at a speed of approximately 40 km/h (25 mph) for 1 minute and check that DTC P0A9000 is not output. If DTC P0A9000 is output, replace the hybrid vehicle transaxle assembly.
- HINT:
P0A7873 may be output as a result of the malfunctions indicated by the DTCs in table below.
(a)The chart above is listed in inspection order of priority.
(b)Check DTCs that are output at the same time by following the listed order. (The main cause of the malfunction can be determined without performing unnecessary inspections.)
Malfunction Content Relevant DTC Insulation malfunction P1C7C49 Hybrid/EV Battery Voltage System Isolation (A/C Area) Internal Electronic Failure P1C7D49 Hybrid/EV Battery Voltage System Isolation (Hybrid/EV Battery Area) Internal Electronic Failure P1C7E49 Hybrid/EV Battery Voltage System Isolation (Transaxle Area) Internal Electronic Failure P1C7F49 Hybrid/EV Battery Voltage System Isolation (Direct Current Area) Internal Electronic Failure P1C8049 Hybrid/EV Battery Voltage System Isolation (Rear Motor Area) Internal Electronic Failure
PROCEDURE
- CAUTION:
-
Be sure to wear insulated gloves.
Check that the service plug grip is not installed.
- NOTICE:
-
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.

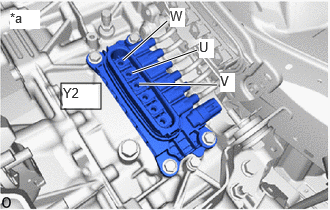

Disconnect the motor cable from the hybrid vehicle transaxle assembly.
| *a | Motor Cable not connected
(Hybrid Vehicle Transaxle Assembly) |
Check the motor (MG2) for an interphase short using a milliohmmeter.
Using a milliohmmeter, measure the resistance according to the value(s) in the table below.
- HINT:
-
If the motor (MG2) temperature is high, the resistance will vary greatly from the specification. Therefore, measure the resistance at least 8 hours after the vehicle has been stopped.
- Standard Resistance:
Tester Connection Condition Specified Condition Y2-1 (W) - Y2-2 (U) Ignition switch off 54.6 to 61.8 mΩ [*1] Y2-2 (U) - Y2-3 (V) Ignition switch off 54.6 to 62.1 mΩ [*2] Y2-1 (W) - Y2-3 (V) Ignition switch off 54.8 to 62.2 mΩ [*3]
- HINT:
-
To correct the variation of the measured resistance due to temperature, use the following formula to calculate the resistance at 20°C (68°F).
R20 = Rt / {1 + 0.00393 X (T - 20)}
-
The calculation is based on the following:
R20: Resistance at 20°C (68°F) (mΩ)
Rt: Measured resistance (mΩ)
T: Temperature when the resistance is measured (°C)
Check the difference in measured resistance values according to the table below.
- Standard:
Inspection Item Specified Condition [*1] - [*2] -1.4 to 1.2 mΩ [*2] - [*3] -1.5 to 1.2 mΩ [*3] - [*1] -1.1 to 1.6 mΩ
Using a megohmmeter set to 500 V, measure the resistance according to the value(s) in the table below.
- NOTICE:
-
Be sure to set the megohmmeter to 500 V when performing this test. Using a setting higher than 500 V can result in damage to the component being inspected.
- Standard Resistance:
Tester Connection Condition Specified Condition Y2-1 (W) - Body ground and shield ground Ignition switch off 100 MΩ or higher Y2-2 (U) - Body ground and shield ground Ignition switch off 100 MΩ or higher Y2-3 (V) - Body ground and shield ground Ignition switch off 100 MΩ or higher
Connect the motor cable.
- Result:
Proceed to OK NG
OK
NG
- Result:
Proceed to NEXT
NEXT
- Result:
Proceed to NEXT
NEXT
- Result:
Proceed to NEXT
NEXT
- Result:
Proceed to NEXT
NEXT
- Result:
Proceed to NEXT
NEXT
Check the other DTCs that were output together with DTC P0A7873.
- Powertrain > Motor Generator > Trouble Codes
- 50001 395
- Result:
Relevant DTC P0A789E Drive Motor "A" Inverter Stuck On P1C5D19 Drive Motor "A" Inverter Circuit Current Above Threshold
- NOTICE:
-
DTC P0A7873 is stored after DTCs P0A789E and/or P1C5D19 are stored. After troubleshooting and repairing the malfunction which caused P0A7873 to be stored, be sure to troubleshoot the other DTCs.
- Result:
Proceed to NEXT
NEXT
