RM38T0EC _51 Engine / Hybrid System _144957 HYBRID / BATTERY CONTROL _0604232 HYBRID CONTROL SYSTEM J

HYBRID / BATTERY CONTROL  HYBRID CONTROL SYSTEM  Motor High-voltage Circuit


DESCRIPTION

The cause of the malfunction may be the high-voltage circuit of the motor.

Check the motor internal resistance and the connection condition of the high-voltage line between the inverter and motor to check whether there is an open or short circuit.

Related Parts Check
Area Inspection
Motor cable connection check Check for open or short circuit in the connection condition of the cable from the inverter to the motor.
Motor and motor cable Check the motor (including cable) internal resistance and insulation resistance with body ground to check for an open or short circuit.

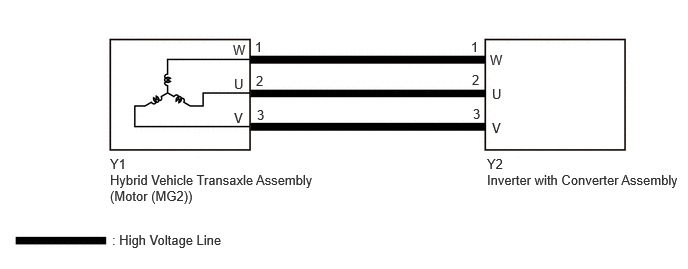

WIRING DIAGRAM

A484813E09
2.427,0.438 2.729,0.625 0.302,0.188 10 false W 2.438,0.792 2.74,0.979 0.302,0.188 10 false U 2.438,1.146 2.719,1.333 0.281,0.188 10 false V 5.104,0.542 5.406,0.729 0.302,0.188 10 false W 5.125,0.896 5.427,1.083 0.302,0.188 10 false U 5.125,1.25 5.406,1.438 0.281,0.188 10 false V 2.656,0.406 2.958,0.594 0.302,0.188 10 false 1 2.677,1.115 2.979,1.302 0.302,0.188 10 false 3 2.667,0.76 2.969,0.948 0.302,0.188 10 false 2 4.927,1.104 5.229,1.292 0.302,0.188 10 false 3 4.917,0.75 5.219,0.938 0.302,0.188 10 false 2 4.906,0.406 5.208,0.594 0.302,0.188 10 false 1 1.146,1.625 1.448,1.813 0.302,0.188 10 false Y1 5.073,1.625 5.375,1.813 0.302,0.188 10 false Y2 1.146,1.792 3.354,2.229 2.208,0.438 10 false Hybrid Vehicle Transaxle Assembly (Motor (MG2)) 5.073,1.792 7.115,2.104 2.042,0.313 10 false Inverter with Converter Assembly 1.167,2.417 2.823,2.667 1.656,0.25 10 false : High Voltage Line

CAUTION / NOTICE / HINT

This diagnostic procedure is referenced to in the diagnostic procedure of several DTCs.

If the result of this diagnostic procedure is normal, proceed as directed in the procedure for the DTC.

CAUTION:

Refer to the precautions before inspecting high voltage circuit.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>PRECAUTION


NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART




PROCEDURE

1.CHECK INVERTER WITH CONVERTER ASSEMBLY (MOTOR CABLE CONNECTION CONDITION)
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.

Remove the inverter cover from the inverter with converter assembly.


c.

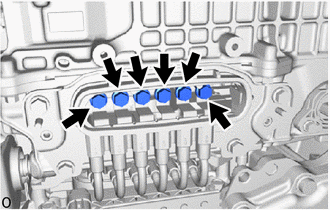

A517703

Check that the bolts for the motor cable are tightened to the specified torque, the motor cable is connected securely, and there are no contact problems.

Specified Condition:

T = 8.0 N*m (82 kgf*cm, 71 in.*lbf)



d.

Disconnect the motor cable from the inverter with converter assembly.


e.

Check for arc marks at the terminals for the motor cable.

Result:
Result Proceed to
The terminals are connected securely and there are no contact problems. There are no arc marks. A
The terminals are not connected securely and there is a contact problem. There are arc marks. B
The terminals are not connected securely and there is a contact problem. There are no arc marks. C
The terminals are connected securely and there are no contact problems. There are arc marks. B



f.

Reconnect the motor cable.


g.

Reinstall the inverter cover.



A

2.CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (MOTOR (MG2))

B

REPLACE MALFUNCTIONING PARTS

C

CONNECT SECURELY

2.CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (MOTOR (MG2))
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.

Remove the inverter cover from the inverter with converter assembly.


c.

Disconnect the motor cable from the inverter with converter assembly.


d.

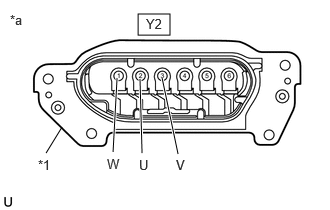

A515020C27
1.438,0.146 1.771,0.365 0.333,0.219 1.177,1.583 1.219,0.813 true 1.479,1.594 1.458,0.823 true 1.854,1.604 1.688,0.813 true 0.479,1.594 0.646,1.323 false 1.521,0.167 1.833,0.365 0.313,0.198 10 false Y2 0.104,0.125 0.417,0.323 0.313,0.198 10 false *a 1.115,1.625 1.427,1.823 0.313,0.198 10 false W 1.448,1.635 1.76,1.833 0.313,0.198 10 false U 1.833,1.635 2.146,1.833 0.313,0.198 10 false V 0.396,1.635 0.708,1.833 0.313,0.198 10 false *1
*1 Shield Ground
*a Motor Cable
(Inverter with Converter Assembly Side)


Using a milliohmmeter, measure the resistance according to the value(s) in the table below.

HINT:

If the motor (MG2) temperature is high, the resistance will vary greatly from the specification. Therefore, measure the resistance at least 8 hours after the vehicle is stopped.


Standard Resistance:
Tester Connection Condition Specified Condition
Y2-1 (W) - Y2-2 (U) Ignition switch off 55.1 to 62.3 mΩ [*1]
Y2-2 (U) - Y2-3 (V) Ignition switch off 55.1 to 62.6 mΩ [*2]
Y2-3 (V) - Y2-1 (W) Ignition switch off 55.3 to 62.7 mΩ [*3]


HINT:

To correct the variation of the measured resistance due to temperature, use the following formula to calculate the resistance at 20°C (68°F).

R20 = Rt / {1 + 0.00393 X (T - 20)}

The calculation is based on the following:

R20: Resistance at 20°C (68°F) (mΩ)

Rt: Measured resistance (mΩ)

T: Temperature when the resistance is measured (°C (°F).)



e.

Check the difference in measured resistance values according to the table below.

Standard:
Inspection Item Specified Condition
[*1] - [*2] -1.4 to 1.2 mΩ
[*2] - [*3] -1.5 to 1.2 mΩ
[*3] - [*1] -1.1 to 1.6 mΩ



f.

Using a megohmmeter set to 500 V, measure the resistance according to the value(s) in the table below.

NOTICE:

Be sure to set the megohmmeter to 500 V when performing this test. Using a setting higher than 500 V can result in damage to the component being inspected.


Standard Resistance:
Tester Connection Condition Specified Condition
Y2-1 (W) - Body ground and shield ground Ignition switch off 100 MΩ or higher
Y2-2 (U) - Body ground and shield ground Ignition switch off 100 MΩ or higher
Y2-3 (V) - Body ground and shield ground Ignition switch off 100 MΩ or higher



g.

Reconnect the motor cable.


h.

Reinstall the inverter cover.


Result:
Proceed to
OK
NG



OK

MOTOR HIGH-VOLTAGE CIRCUIT NORMAL (PERFORM NEXT STEP FOR REFERENCED DTC)

NG

3.CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (MOTOR CABLE CONNECTION CONDITION)
3.CHECK HYBRID VEHICLE TRANSAXLE ASSEMBLY (MOTOR CABLE CONNECTION CONDITION)
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.

Remove the inverter with converter assembly.


c.

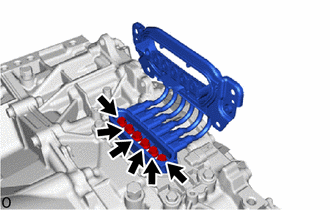

A517690

Check that the bolts for the motor cable are tightened to the specified torque, the motor cable is connected securely, and there are no contact problems.

Specified Condition:

T=10 N*m (102 kgf*cm, 7 ft.*lbf)



d.

Disconnect the motor cable from the hybrid vehicle transaxle assembly.


e.

Check for arc marks at the terminals for the generator cable.

Result:
Result Proceed to
The terminals are connected securely and there are no contact problems. There are no arc marks. A
The terminals are not connected securely and there is a contact problem. There are arc marks. B
The terminals are not connected securely and there is a contact problem. There are no arc marks. C
The terminals are connected securely and there are no contact problems. There are arc marks. B



f.

Reconnect the motor cable.


g.

Reinstall the inverter with converter assembly.



A

4.CHECK MOTOR CABLE (FOR MG2)

B

REPLACE MALFUNCTIONING PARTS

C

CONNECT SECURELY

4.CHECK MOTOR CABLE (FOR MG2)
CAUTION:

Be sure to wear insulated gloves.


a.

Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.



b.

Remove the inverter with converter assembly.


c.

Remove the motor cable.


d.

Using a megohmmeter set to 500 V, measure the resistance according to the value(s) in the table below.

NOTICE:

Be sure to set the megohmmeter to 500 V when performing this test. Using a setting higher than 500 V can result in damage to the component being inspected.

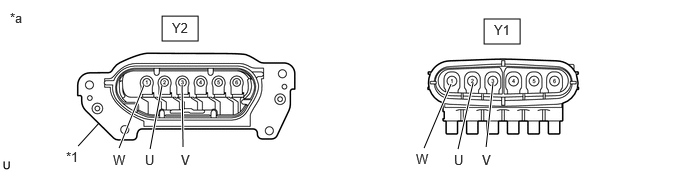

A515063C14
1.688,0.167 2.063,0.427 0.375,0.26 5.042,0.198 5.417,0.458 0.375,0.26 1.24,1.542 1.5,0.885 true 1.563,1.552 1.688,0.885 true 1.906,1.531 1.896,0.885 true 4.417,1.542 4.698,0.875 true 4.771,1.552 4.927,0.865 true 5.063,1.531 5.135,0.865 true 0.813,1.521 1.031,1.281 false 1.792,0.208 2.104,0.406 0.313,0.198 10 false Y2 5.146,0.229 5.458,0.427 0.313,0.198 10 false Y1 1.177,1.583 1.49,1.781 0.313,0.198 10 false W 1.885,1.583 2.198,1.781 0.313,0.198 10 false V 1.51,1.583 1.823,1.781 0.313,0.198 10 false U 4.333,1.573 4.646,1.771 0.313,0.198 10 false W 4.729,1.583 5.042,1.781 0.313,0.198 10 false U 5.021,1.583 5.333,1.781 0.313,0.198 10 false V 0.104,0.104 0.417,0.302 0.313,0.198 10 false *a 0.688,1.552 1,1.75 0.313,0.198 10 false *1
*1 Shielded Ground - -
*a Motor Cable - -


Standard Resistance:
Tester Connection Condition Specified Condition
Y2-1 (W) or Y1-1 (W) - Shield ground Ignition switch off 100 MΩ or higher
Y2-2 (U) or Y1-2 (U) - Shield ground Ignition switch off 100 MΩ or higher
Y2-3 (V) or Y1-3 (V) - Shield ground Ignition switch off 100 MΩ or higher


NOTICE:

Wrap the terminals of the motor cable with insulating tape to prevent them from coming into contact with body ground.



e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Y2-1 (W) - Y1-1 (W) Ignition switch off Below 1 Ω
Y2-2 (U) - Y1-2 (U) Ignition switch off Below 1 Ω
Y2-3 (V) - Y1-3 (V) Ignition switch off Below 1 Ω
Y2-1 (W) - Y1-2 (U) Ignition switch off 100 MΩ or higher
Y2-2 (U) - Y1-3 (V) Ignition switch off 100 MΩ or higher
Y2-3 (V) - Y1-1 (W) Ignition switch off 100 MΩ or higher



f.

Reinstall the motor cable.


g.

Reinstall the inverter with converter assembly.


Result:
Proceed to
OK
NG



OK

REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY

Click hereDrivetrain>PB10 (HYBRID TRANSMISSION / TRANSAXLE)>HYBRID VEHICLE TRANSAXLE>REMOVAL


NG

REPLACE MOTOR CABLE

Click hereDrivetrain>PB10 (HYBRID TRANSMISSION / TRANSAXLE)>MOTOR CABLE>REMOVAL
