METER / GAUGE / DISPLAY METER / GAUGE SYSTEM B150819 Turn Signal/Hazard Flasher Circuit Current Above Threshold

DESCRIPTION

This DTC is stored when the combination meter assembly detects a short in a turn signal light circuit.

HINT:: If there is a short in a turn signal light circuit, all of the turn signal lights in that circuit will not blink.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area
B150819	Turn Signal/Hazard Flasher Circuit Current Above Threshold	Diagnosis Condition: Auxiliary battery voltage is 10 V or more Malfunction Status: Short in turn signal light circuit	· Headlight assembly - Front turn signal light socket1 - Front turn signal light bulb1 · Rear combination light assembly - Rear turn signal light socket - Rear turn signal light bulb · Outer rear view mirror assembly - Side turn signal light assembly · Harness or connector · Combination meter assembly

*1: for Halogen Headlight

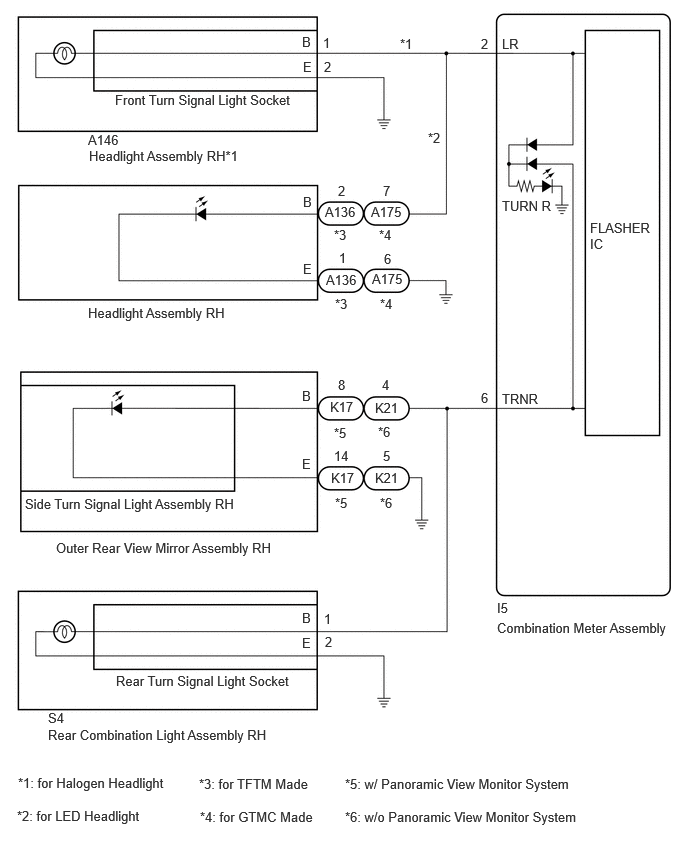

WIRING DIAGRAM

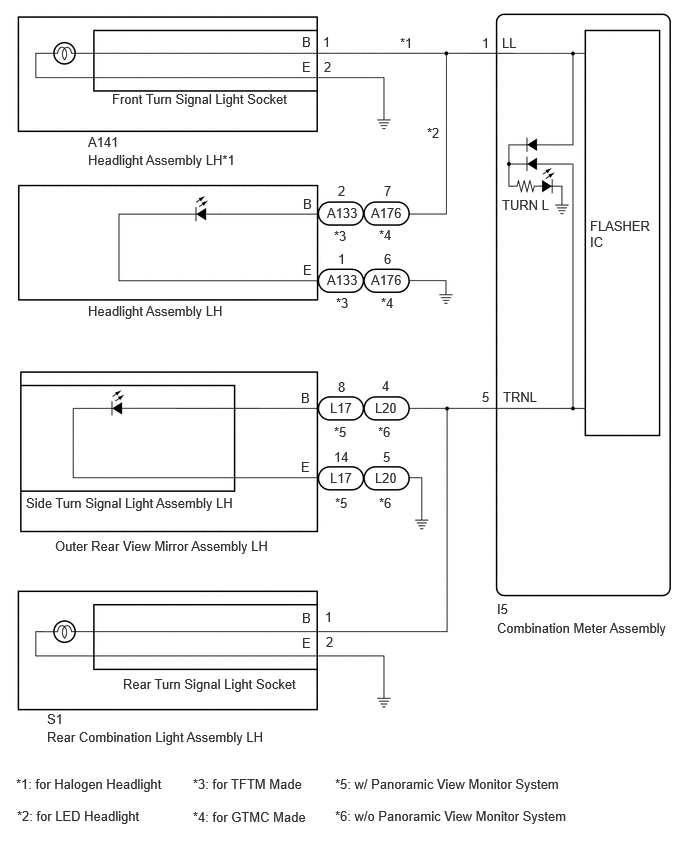

Production Date from 2022/01 to 2023/04

for LH Side

5.177,6.458 7.083,6.927 1.906,0.469 10 false Combination Meter Assembly 6.146,2.271 6.854,2.76 0.708,0.49 10 false FLASHER IC 5.24,4.052 5.854,4.25 0.615,0.198 10 false TRNL 0.271,5.156 2.625,5.49 2.354,0.333 10 false Side Turn Signal Light Assembly LH 0.573,5.604 3.177,5.938 2.604,0.333 10 false Outer Rear View Mirror Assembly LH 0.49,7.594 3.073,7.927 2.583,0.333 10 false Rear Combination Light Assembly LH 3.146,6.354 3.302,6.552 0.156,0.198 10 false B 3.135,4.063 3.292,4.26 0.156,0.198 10 false B 3.135,4.781 3.292,4.979 0.156,0.198 10 false E 3.146,6.615 3.302,6.813 0.156,0.198 10 false E 4.167,0.365 4.479,0.563 0.313,0.198 10 false *1 4.448,1.302 4.76,1.5 0.313,0.198 10 false *2 0.167,8.083 2.656,8.417 2.49,0.333 10 false *1: for Halogen Headlight 0.177,8.417 2.667,8.75 2.49,0.333 10 false *2: for LED Headlight 5.229,0.365 5.542,0.563 0.313,0.198 10 false LL 1.167,0.948 3.104,1.333 1.938,0.385 10 false Front Turn Signal Light Socket 0.917,1.583 2.667,2 1.75,0.417 10 false Headlight Assembly LH*1 0.917,3.156 2.667,3.573 1.75,0.417 10 false Headlight Assembly LH 3.156,2.042 3.313,2.24 0.156,0.198 10 false B 3.146,0.354 3.302,0.552 0.156,0.198 10 false B 3.156,2.729 3.313,2.927 0.156,0.198 10 false E 3.146,0.615 3.302,0.813 0.156,0.198 10 false E 5.229,2.052 6.146,2.25 0.917,0.198 10 false TURN L 5.177,6.26 5.49,6.458 0.313,0.198 10 false I5 5.021,0.365 5.177,0.563 0.156,0.198 10 false 1 3.365,0.354 3.521,0.552 0.156,0.198 10 false 1 3.521,2.615 3.677,2.813 0.156,0.198 10 false 1 3.375,0.615 3.531,0.813 0.156,0.198 10 false 2 3.521,1.906 3.677,2.104 0.156,0.198 10 false 2 0.917,1.396 1.531,1.594 0.615,0.198 10 false A141 3.979,3.938 4.323,4.135 0.344,0.198 10 false 4 3.479,4.677 3.792,4.875 0.313,0.198 10 false 14 3.438,4.896 3.896,5.094 0.458,0.198 10 false L17 0.49,7.406 2.021,7.604 1.531,0.198 10 false S1 5.021,4.052 5.177,4.25 0.156,0.198 10 false 5 3.385,6.344 3.542,6.542 0.156,0.198 10 false 1 3.396,6.604 3.552,6.802 0.156,0.198 10 false 2 1.281,7.042 5.719,7.24 4.438,0.198 10 false Rear Turn Signal Light Socket 3.406,2.135 4.021,2.333 0.615,0.198 10 false A133 3.406,2.833 4.021,3.031 0.615,0.198 10 false A133 3.865,2.135 4.479,2.333 0.615,0.198 10 false A176 3.865,2.833 4.479,3.031 0.615,0.198 10 false A176 4,1.906 4.156,2.104 0.156,0.198 10 false 7 4,2.615 4.156,2.813 0.156,0.198 10 false 6 3.479,2.375 3.635,2.573 0.156,0.198 10 false *3 3.5,3.073 3.656,3.271 0.156,0.198 10 false *3 3.948,2.365 4.104,2.563 0.156,0.198 10 false *4 3.969,3.073 4.125,3.271 0.156,0.198 10 false *4 3.438,4.167 3.896,4.365 0.458,0.198 10 false L17 3.521,3.948 3.865,4.146 0.344,0.198 10 false 8 3.99,4.677 4.333,4.875 0.344,0.198 10 false 5 3.906,4.167 4.365,4.365 0.458,0.198 10 false L20 3.906,4.896 4.365,5.094 0.458,0.198 10 false L20 3.479,4.417 3.792,4.615 0.313,0.198 10 false *5 3.49,5.156 3.802,5.354 0.313,0.198 10 false *5 3.938,4.417 4.25,4.615 0.313,0.198 10 false *6 3.948,5.156 4.26,5.354 0.313,0.198 10 false *6 2.01,8.083 4.5,8.417 2.49,0.333 10 false *3: for TFTM Made 2.01,8.427 4.5,8.76 2.49,0.333 10 false *4: for GTMC Made 3.49,8.083 5.979,8.417 2.49,0.333 10 false *5: w/ Panoramic View Monitor System 3.49,8.417 5.979,8.75 2.49,0.333 10 false *6: w/o Panoramic View Monitor System

for RH Side

5.177,6.458 7.083,6.927 1.906,0.469 10 false Combination Meter Assembly 6.146,2.292 6.854,2.781 0.708,0.49 10 false FLASHER IC 5.229,4.073 5.844,4.271 0.615,0.198 10 false TRNR 0.26,5.167 2.615,5.5 2.354,0.333 10 false Side Turn Signal Light Assembly RH 0.583,5.625 3.188,5.958 2.604,0.333 10 false Outer Rear View Mirror Assembly RH 0.5,7.573 3.083,7.906 2.583,0.333 10 false Rear Combination Light Assembly RH 3.146,6.354 3.302,6.552 0.156,0.198 10 false B 3.146,4.042 3.302,4.24 0.156,0.198 10 false B 3.146,4.75 3.302,4.948 0.156,0.198 10 false E 3.146,6.615 3.302,6.813 0.156,0.198 10 false E 4.167,0.375 4.479,0.573 0.313,0.198 10 false *1 4.458,1.354 4.771,1.552 0.313,0.198 10 false *2 0.188,8.073 2.677,8.406 2.49,0.333 10 false *1: for Halogen Headlight 0.177,8.417 2.667,8.75 2.49,0.333 10 false *2: for LED Headlight 5.229,0.375 5.542,0.573 0.313,0.198 10 false LR 1.198,0.958 3.135,1.344 1.938,0.385 10 false Front Turn Signal Light Socket 0.927,1.542 2.677,1.958 1.75,0.417 10 false Headlight Assembly RH*1 0.917,3.177 2.667,3.594 1.75,0.417 10 false Headlight Assembly RH 3.156,2.021 3.313,2.219 0.156,0.198 10 false B 3.146,0.354 3.302,0.552 0.156,0.198 10 false B 3.156,2.719 3.313,2.917 0.156,0.198 10 false E 3.156,0.615 3.313,0.813 0.156,0.198 10 false E 5.229,2.063 6.146,2.26 0.917,0.198 10 false TURN R 0.917,1.375 1.531,1.573 0.615,0.198 10 false A146 3.385,2.125 4,2.323 0.615,0.198 10 false A136 5.01,0.375 5.167,0.573 0.156,0.198 10 false 2 3.375,0.615 3.531,0.813 0.156,0.198 10 false 2 3.521,1.906 3.719,2.125 0.198,0.219 10 false 2 3.385,6.604 3.542,6.802 0.156,0.198 10 false 2 3.365,0.365 3.521,0.563 0.156,0.198 10 false 1 3.531,2.604 3.688,2.802 0.156,0.198 10 false 1 3.375,6.365 3.531,6.563 0.156,0.198 10 false 1 3.438,4.156 3.896,4.354 0.458,0.198 10 false K17 0.5,7.396 2.031,7.594 1.531,0.198 10 false S4 5.177,6.25 5.49,6.448 0.313,0.198 10 false I5 3.521,3.927 3.917,4.177 0.396,0.25 10 false 8 3.479,4.667 3.792,4.865 0.313,0.198 10 false 14 5.01,4.063 5.167,4.26 0.156,0.198 10 false 6 3.396,2.833 4.01,3.031 0.615,0.198 10 false A136 3.865,2.125 4.479,2.323 0.615,0.198 10 false A175 3.875,2.823 4.49,3.021 0.615,0.198 10 false A175 3.99,1.906 4.188,2.125 0.198,0.219 10 false 7 4,2.615 4.198,2.833 0.198,0.219 10 false 6 3.49,3.083 3.802,3.281 0.313,0.198 10 false *3 3.479,2.365 3.792,2.563 0.313,0.198 10 false *3 3.948,2.365 4.26,2.563 0.313,0.198 10 false *4 3.958,3.083 4.271,3.281 0.313,0.198 10 false *4 3.448,4.896 3.906,5.094 0.458,0.198 10 false K17 3.906,4.167 4.365,4.365 0.458,0.198 10 false K21 3.906,4.896 4.365,5.094 0.458,0.198 10 false K21 3.99,4.667 4.385,4.917 0.396,0.25 10 false 5 3.979,3.927 4.375,4.177 0.396,0.25 10 false 4 3.479,4.427 3.792,4.625 0.313,0.198 10 false *5 3.49,5.156 3.802,5.354 0.313,0.198 10 false *5 3.938,4.417 4.25,4.615 0.313,0.198 10 false *6 3.958,5.156 4.271,5.354 0.313,0.198 10 false *6 2.073,8.083 4.563,8.417 2.49,0.333 10 false *3: for TFTM Made 2.083,8.427 4.573,8.76 2.49,0.333 10 false *4: for GTMC Made 3.594,8.083 6.083,8.417 2.49,0.333 10 false *5: w/ Panoramic View Monitor System 3.594,8.427 6.083,8.76 2.49,0.333 10 false *6: w/o Panoramic View Monitor System 1.208,7.01 5.646,7.208 4.438,0.198 10 false Rear Turn Signal Light Socket

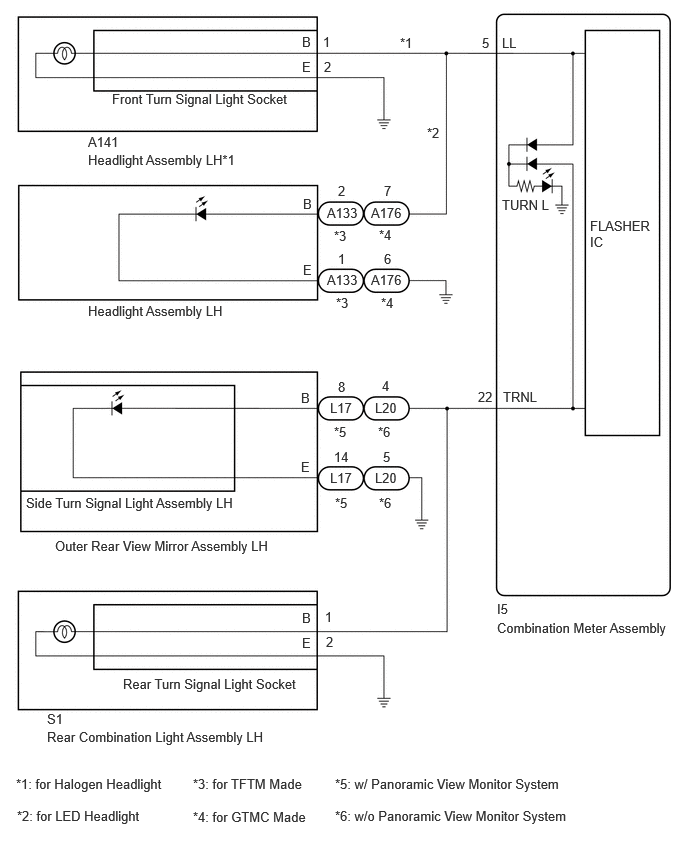

Production Date from 2023/04

5.177,6.458 7.083,6.927 1.906,0.469 10 false Combination Meter Assembly 6.146,2.271 6.854,2.76 0.708,0.49 10 false FLASHER IC 5.24,4.052 5.854,4.25 0.615,0.198 10 false TRNL 0.271,5.156 2.625,5.49 2.354,0.333 10 false Side Turn Signal Light Assembly LH 0.573,5.604 3.177,5.938 2.604,0.333 10 false Outer Rear View Mirror Assembly LH 0.49,7.594 3.073,7.927 2.583,0.333 10 false Rear Combination Light Assembly LH 3.146,6.354 3.302,6.552 0.156,0.198 10 false B 3.135,4.063 3.292,4.26 0.156,0.198 10 false B 3.135,4.781 3.292,4.979 0.156,0.198 10 false E 3.146,6.615 3.302,6.813 0.156,0.198 10 false E 4.167,0.365 4.479,0.563 0.313,0.198 10 false *1 4.448,1.302 4.76,1.5 0.313,0.198 10 false *2 0.167,8.083 2.656,8.417 2.49,0.333 10 false *1: for Halogen Headlight 0.177,8.417 2.667,8.75 2.49,0.333 10 false *2: for LED Headlight 5.229,0.365 5.542,0.563 0.313,0.198 10 false LL 1.167,0.948 3.104,1.333 1.938,0.385 10 false Front Turn Signal Light Socket 0.917,1.583 2.667,2 1.75,0.417 10 false Headlight Assembly LH*1 0.917,3.156 2.667,3.573 1.75,0.417 10 false Headlight Assembly LH 3.156,2.042 3.313,2.24 0.156,0.198 10 false B 3.146,0.354 3.302,0.552 0.156,0.198 10 false B 3.156,2.729 3.313,2.927 0.156,0.198 10 false E 3.146,0.615 3.302,0.813 0.156,0.198 10 false E 5.229,2.052 6.146,2.25 0.917,0.198 10 false TURN L 5.177,6.26 5.49,6.458 0.313,0.198 10 false I5 5.021,0.365 5.292,0.594 0.271,0.229 10 false 5 3.365,0.354 3.521,0.552 0.156,0.198 10 false 1 3.521,2.615 3.677,2.813 0.156,0.198 10 false 1 3.375,0.615 3.531,0.813 0.156,0.198 10 false 2 3.521,1.906 3.677,2.104 0.156,0.198 10 false 2 0.917,1.396 1.531,1.594 0.615,0.198 10 false A141 3.979,3.938 4.323,4.135 0.344,0.198 10 false 4 3.479,4.677 3.792,4.875 0.313,0.198 10 false 14 3.438,4.896 3.896,5.094 0.458,0.198 10 false L17 0.49,7.406 2.021,7.604 1.531,0.198 10 false S1 4.979,4.052 5.594,4.417 0.615,0.365 10 false 22 3.385,6.344 3.542,6.542 0.156,0.198 10 false 1 3.396,6.604 3.552,6.802 0.156,0.198 10 false 2 1.281,7.042 5.719,7.24 4.438,0.198 10 false Rear Turn Signal Light Socket 3.406,2.135 4.021,2.333 0.615,0.198 10 false A133 3.406,2.833 4.021,3.031 0.615,0.198 10 false A133 3.865,2.135 4.479,2.333 0.615,0.198 10 false A176 3.865,2.833 4.479,3.031 0.615,0.198 10 false A176 4,1.906 4.156,2.104 0.156,0.198 10 false 7 4,2.615 4.156,2.813 0.156,0.198 10 false 6 3.479,2.375 3.635,2.573 0.156,0.198 10 false *3 3.5,3.073 3.656,3.271 0.156,0.198 10 false *3 3.948,2.365 4.104,2.563 0.156,0.198 10 false *4 3.969,3.073 4.125,3.271 0.156,0.198 10 false *4 3.438,4.167 3.896,4.365 0.458,0.198 10 false L17 3.521,3.948 3.865,4.146 0.344,0.198 10 false 8 3.99,4.677 4.333,4.875 0.344,0.198 10 false 5 3.906,4.167 4.365,4.365 0.458,0.198 10 false L20 3.906,4.896 4.365,5.094 0.458,0.198 10 false L20 3.479,4.417 3.792,4.615 0.313,0.198 10 false *5 3.49,5.156 3.802,5.354 0.313,0.198 10 false *5 3.938,4.417 4.25,4.615 0.313,0.198 10 false *6 3.948,5.156 4.26,5.354 0.313,0.198 10 false *6 2.01,8.083 4.5,8.417 2.49,0.333 10 false *3: for TFTM Made 2.01,8.427 4.5,8.76 2.49,0.333 10 false *4: for GTMC Made 3.49,8.083 5.979,8.417 2.49,0.333 10 false *5: w/ Panoramic View Monitor System 3.49,8.417 5.979,8.75 2.49,0.333 10 false *6: w/o Panoramic View Monitor System

5.177,6.458 7.083,6.927 1.906,0.469 10 false Combination Meter Assembly 6.146,2.292 6.854,2.781 0.708,0.49 10 false FLASHER IC 5.229,4.073 5.844,4.271 0.615,0.198 10 false TRNR 0.26,5.167 2.615,5.5 2.354,0.333 10 false Side Turn Signal Light Assembly RH 0.583,5.625 3.188,5.958 2.604,0.333 10 false Outer Rear View Mirror Assembly RH 0.5,7.573 3.083,7.906 2.583,0.333 10 false Rear Combination Light Assembly RH 3.146,6.354 3.302,6.552 0.156,0.198 10 false B 3.146,4.042 3.302,4.24 0.156,0.198 10 false B 3.146,4.75 3.302,4.948 0.156,0.198 10 false E 3.146,6.615 3.302,6.813 0.156,0.198 10 false E 4.167,0.375 4.479,0.573 0.313,0.198 10 false *1 4.458,1.354 4.771,1.552 0.313,0.198 10 false *2 0.188,8.073 2.677,8.406 2.49,0.333 10 false *1: for Halogen Headlight 0.177,8.417 2.667,8.75 2.49,0.333 10 false *2: for LED Headlight 5.229,0.375 5.542,0.573 0.313,0.198 10 false LR 1.198,0.958 3.135,1.344 1.938,0.385 10 false Front Turn Signal Light Socket 0.927,1.542 2.677,1.958 1.75,0.417 10 false Headlight Assembly RH*1 0.917,3.177 2.667,3.594 1.75,0.417 10 false Headlight Assembly RH 3.156,2.021 3.313,2.219 0.156,0.198 10 false B 3.146,0.354 3.302,0.552 0.156,0.198 10 false B 3.156,2.719 3.313,2.917 0.156,0.198 10 false E 3.156,0.615 3.313,0.813 0.156,0.198 10 false E 5.229,2.063 6.146,2.26 0.917,0.198 10 false TURN R 0.917,1.375 1.531,1.573 0.615,0.198 10 false A146 3.385,2.125 4,2.323 0.615,0.198 10 false A136 5.01,0.375 5.167,0.573 0.156,0.198 10 false 6 3.375,0.615 3.531,0.813 0.156,0.198 10 false 2 3.521,1.906 3.719,2.125 0.198,0.219 10 false 2 3.385,6.604 3.542,6.802 0.156,0.198 10 false 2 3.365,0.365 3.521,0.563 0.156,0.198 10 false 1 3.531,2.604 3.688,2.802 0.156,0.198 10 false 1 3.375,6.365 3.531,6.563 0.156,0.198 10 false 1 3.438,4.156 3.896,4.354 0.458,0.198 10 false K17 0.5,7.396 2.031,7.594 1.531,0.198 10 false S4 5.177,6.25 5.49,6.448 0.313,0.198 10 false I5 3.521,3.927 3.917,4.177 0.396,0.25 10 false 8 3.479,4.667 3.792,4.865 0.313,0.198 10 false 14 4.99,4.063 5.448,4.417 0.458,0.354 10 false 21 3.396,2.833 4.01,3.031 0.615,0.198 10 false A136 3.865,2.125 4.479,2.323 0.615,0.198 10 false A175 3.875,2.823 4.49,3.021 0.615,0.198 10 false A175 3.99,1.906 4.188,2.125 0.198,0.219 10 false 7 4,2.615 4.198,2.833 0.198,0.219 10 false 6 3.49,3.083 3.802,3.281 0.313,0.198 10 false *3 3.479,2.365 3.792,2.563 0.313,0.198 10 false *3 3.948,2.365 4.26,2.563 0.313,0.198 10 false *4 3.958,3.083 4.271,3.281 0.313,0.198 10 false *4 3.448,4.896 3.906,5.094 0.458,0.198 10 false K17 3.906,4.167 4.365,4.365 0.458,0.198 10 false K21 3.906,4.896 4.365,5.094 0.458,0.198 10 false K21 3.99,4.667 4.385,4.917 0.396,0.25 10 false 5 3.979,3.927 4.375,4.177 0.396,0.25 10 false 4 3.479,4.427 3.792,4.625 0.313,0.198 10 false *5 3.49,5.156 3.802,5.354 0.313,0.198 10 false *5 3.938,4.417 4.25,4.615 0.313,0.198 10 false *6 3.958,5.156 4.271,5.354 0.313,0.198 10 false *6 2.073,8.083 4.563,8.417 2.49,0.333 10 false *3: for TFTM Made 2.083,8.427 4.573,8.76 2.49,0.333 10 false *4: for GTMC Made 3.594,8.083 6.083,8.417 2.49,0.333 10 false *5: w/ Panoramic View Monitor System 3.594,8.427 6.083,8.76 2.49,0.333 10 false *6: w/o Panoramic View Monitor System 1.208,7.01 5.646,7.208 4.438,0.198 10 false Rear Turn Signal Light Socket

CAUTION / NOTICE / HINT

NOTICE:: ·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

Inspect the turn signal light bulbs before performing the following procedure.

·

When replacing the combination meter assembly, update the ECU security key

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY202201,202405,_V1,_106911,_0485801,RM100000001XG8S,202405,999999,_V1,_106911,_0485801,RM100000002NHZW,

PROCEDURE

1.CHECK SYMPTOMS

Check the problem symptoms.

Result:

Result	Proceed to
All LH side turn signal lights do not blink	A
All RH side turn signal lights do not blink	B

2.CONFIRM MODEL

21.CONFIRM MODEL

2.CONFIRM MODEL

Choose the model to be inspected.

Result:

Result	Proceed to
for Halogen Headlight	A
for LED Headlight	B

3.CHECK LH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

10.CONFIRM MODEL

3.CHECK LH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

Disconnect the A141 headlight assembly LH connector.

Operate the turn signal switch and check that the LH side turn signal lights other than the front turn signal light blink.

HINT:: If the LH side turn signal lights other than the front turn signal light blink, the front turn signal light socket is malfunctioning.

Result:

Result	Proceed to
LH side turn signal lights other than the front turn signal light blink	A
Problem symptoms do not change (All LH side turn signal lights do not blink)	B

REPLACE FRONT TURN SIGNAL LIGHT SOCKET

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for LED Headlight)>DISASSEMBLY202201,999999,_59,_112294,_0501098,RM100000001Z4WO,

4.CHECK LH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

Connect the headlight assembly LH connector.

Disconnect the L20 outer rear view mirror assembly LH connector.

Operate the turn signal switch and check that the LH side turn signal lights other than the side turn signal light blink.

HINT:: If the LH side turn signal lights other than the side turn signal light blink, a component of the outer rear view mirror assembly LH is malfunctioning.

Result:

Result	Proceed to
LH side turn signal lights other than the side turn signal light blink	A
Problem symptoms do not change (All LH side turn signal lights do not blink)	B

5.CHECK LH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY LH)

6.CHECK LH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

5.CHECK LH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY LH)

Remove the side turn signal light assembly LH from outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

Connect the wire harness connector to the outer rear view mirror assembly LH connector.

Operate the turn signal switch and check that the LH side turn signal lights other than the side turn signal light blink.

HINT:: If all LH side turn signal lights do not blink, the outer rear view mirror assembly LH is malfunctioning.

Result:

Result	Proceed to
LH side turn signal lights other than the side turn signal light blink	A
All LH side turn signal lights do not blink	B

REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL202201,202307,_59,_112292,_0501089,RM100000001Z4VT,202307,999999,_59,_112292,_0501089,RM100000002D0NL,

6.CHECK LH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

Connect the outer rear view mirror assembly LH connector.

Disconnect the S1 rear combination light assembly LH connector.

Operate the turn signal switch and check that the LH rear turn signal lights other than the rear turn signal light blink.

HINT:: If the LH side turn signal lights other than the rear turn signal light blink, the rear turn signal light socket is malfunctioning.

Result:

Result	Proceed to
LH rear turn signal lights other than the rear turn signal light blink	A
Problem symptoms do not change (All LH side turn signal lights do not blink)	B

REPLACE REAR TURN SIGNAL LIGHT SOCKET

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY>DISASSEMBLY202201,999999,_59,_112294,_0501104,RM100000001Z4X7,

7.CONFIRM MODEL

Choose the model to be inspected.

Result:

Result	Proceed to
Production Date from 2022/01 to 2023/04	A
Production Date from 2023/04	B

8.CHECK HARNESS AND CONNECTOR (LH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

9.CHECK HARNESS AND CONNECTOR (LH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

8.CHECK HARNESS AND CONNECTOR (LH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

Disconnect the A141 headlight assembly LH connector.

Disconnect the L20 outer rear view mirror assembly LH connector.

Disconnect the I5 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A141-1 (B) or I5-1 (LL) - Body ground	Always	10 kΩ or higher
L20-4 (B), S1-1 (B) or I5-5 (TRNL) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202201,202307,_58,_112289,_0501082,RM100000001Z4V3,202307,999999,_58,_112289,_0501082,RM100000002BH9M,

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.CHECK HARNESS AND CONNECTOR (LH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

Disconnect the A141 headlight assembly LH connector.

Disconnect the L20 outer rear view mirror assembly LH connector.

Disconnect the I5 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A141-1 (B) or I5-5 (LL) - Body ground	Always	10 kΩ or higher
L20-4 (B), S1-1 (B) or I5-22 (TRNL) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202201,202307,_58,_112289,_0501082,RM100000001Z4V3,202307,999999,_58,_112289,_0501082,RM100000002BH9M,

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.CONFIRM MODEL

Choose the model to be inspected.

Result:

Result	Proceed to
Production Date from 2022/01 to 2023/04	A
Production Date from 2023/04	B

11.CHECK LH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

16.CHECK LH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

11.CHECK LH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

Disconnect the A133*1 or A176*2 headlight assembly LH connector.

*1: for TFTM Made

*2: for GTMC Made

Operate the turn signal switch and check that the LH side turn signal lights other than the front turn signal light blink.

HINT:: If the LH side turn signal lights other than the front turn signal light blink, the headlight front turn signal LED is malfunctioning.

Result:

Result	Proceed to
LH side turn signal lights other than the front turn signal light blink	A
Problem symptoms do not change (All LH side turn signal lights do not blink)	B

REPLACE HEADLIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for LED Headlight)>REMOVAL202201,999999,_59,_112294,_0501098,RM100000001Z4WR,

12.CHECK LH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

Connect the headlight assembly LH connector.

Disconnect the L17*1 or L20*2 outer rear view mirror assembly LH connector.

*1: w/ Panoramic View Monitor System

*2: w/o Panoramic View Monitor System

Operate the turn signal switch and check that the LH side turn signal lights other than the side turn signal light blink.

HINT:: If the LH side turn signal lights other than the side turn signal light blink, a component of the outer rear view mirror assembly LH is malfunctioning.

Result:

Result	Proceed to
LH side turn signal lights other than the side turn signal light blink	A
Problem symptoms do not change (All LH side turn signal lights do not blink)	B

13.CHECK LH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY LH)

14.CHECK LH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

13.CHECK LH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY LH)

Remove the side turn signal light assembly LH from outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

Connect the wire harness connector to the outer rear view mirror assembly LH connector.

Operate the turn signal switch and check that the LH side turn signal lights other than the side turn signal light blink.

HINT:: If all LH side turn signal lights do not blink, the outer rear view mirror assembly LH is malfunctioning.

Result:

Result	Proceed to
LH side turn signal lights other than the side turn signal light blink	A
All LH side turn signal lights do not blink	B

REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL202201,202307,_59,_112292,_0501089,RM100000001Z4VT,202307,999999,_59,_112292,_0501089,RM100000002D0NL,

14.CHECK LH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

Connect the outer rear view mirror assembly LH connector.

Disconnect the S1 rear combination light assembly LH connector.

Operate the turn signal switch and check that the LH rear turn signal lights other than the rear turn signal light blink.

HINT:: If the LH side turn signal lights other than the rear turn signal light blink, the rear turn signal light socket is malfunctioning.

Result:

Result	Proceed to
LH rear turn signal lights other than the rear turn signal light blink	A
Problem symptoms do not change (All LH side turn signal lights do not blink)	B

REPLACE REAR TURN SIGNAL LIGHT SOCKET

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY>DISASSEMBLY202201,999999,_59,_112294,_0501104,RM100000001Z4X7,

15.CHECK HARNESS AND CONNECTOR (LH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

Disconnect the A133*1 or A176*2 headlight assembly LH connector.

*1: for TFTM Made

*2: for GTMC Made

Disconnect the L17*3 or L20*4 outer rear view mirror assembly LH connector.

*3: w/ Panoramic View Monitor System

*4: w/o Panoramic View Monitor System

Disconnect the I5 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A133-2 (B) or I5-1 (LL) - Body ground*1	Always	10 kΩ or higher
A176-7 (B) or I5-1 (LL) - Body ground*2	Always	10 kΩ or higher
L17-8 (B), S1-1 (B) or I5-5 (TRNL) - Body ground*3	Always	10 kΩ or higher
L20-4 (B), S1-1 (B) or I5-5 (TRNL) - Body ground*4	Always	10 kΩ or higher

*1: for TFTM Made

*2: for GTMC Made

*3: w/ Panoramic View Monitor System

*4: w/o Panoramic View Monitor System

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202201,202307,_58,_112289,_0501082,RM100000001Z4V3,202307,999999,_58,_112289,_0501082,RM100000002BH9M,

REPAIR OR REPLACE HARNESS OR CONNECTOR

16.CHECK LH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

Disconnect the A133*1 or A176*2 headlight assembly LH connector.

*1: for TFTM Made

*2: for GTMC Made

Operate the turn signal switch and check that the LH side turn signal lights other than the front turn signal light blink.

HINT:: If the LH side turn signal lights other than the front turn signal light blink, the headlight front turn signal LED is malfunctioning.

Result:

Result	Proceed to
LH side turn signal lights other than the front turn signal light blink	A
Problem symptoms do not change (All LH side turn signal lights do not blink)	B

REPLACE HEADLIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for LED Headlight)>REMOVAL202201,999999,_59,_112294,_0501098,RM100000001Z4WR,

17.CHECK LH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

Connect the headlight assembly LH connector.

Disconnect the L17*1 or L20*2 outer rear view mirror assembly LH connector.

*1: w/ Panoramic View Monitor System

*2: w/o Panoramic View Monitor System

Operate the turn signal switch and check that the LH side turn signal lights other than the side turn signal light blink.

HINT:: If the LH side turn signal lights other than the side turn signal light blink, a component of the outer rear view mirror assembly LH is malfunctioning.

Result:

Result	Proceed to
LH side turn signal lights other than the side turn signal light blink	A
Problem symptoms do not change (All LH side turn signal lights do not blink)	B

18.CHECK LH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY LH)

19.CHECK LH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

18.CHECK LH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY LH)

Remove the side turn signal light assembly LH from outer rear view mirror assembly LH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

Connect the wire harness connector to the outer rear view mirror assembly LH connector.

Operate the turn signal switch and check that the LH side turn signal lights other than the side turn signal light blink.

HINT:: If all LH side turn signal lights do not blink, the outer rear view mirror assembly LH is malfunctioning.

Result:

Result	Proceed to
LH side turn signal lights other than the side turn signal light blink	A
All LH side turn signal lights do not blink	B

REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL202201,202307,_59,_112292,_0501089,RM100000001Z4VT,202307,999999,_59,_112292,_0501089,RM100000002D0NL,

19.CHECK LH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

Connect the outer rear view mirror assembly LH connector.

Disconnect the S1 rear combination light assembly LH connector.

Operate the turn signal switch and check that the LH rear turn signal lights other than the rear turn signal light blink.

HINT:: If the LH side turn signal lights other than the rear turn signal light blink, the rear turn signal light socket is malfunctioning.

Result:

Result	Proceed to
LH rear turn signal lights other than the rear turn signal light blink	A
Problem symptoms do not change (All LH side turn signal lights do not blink)	B

REPLACE REAR TURN SIGNAL LIGHT SOCKET

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY>DISASSEMBLY202201,999999,_59,_112294,_0501104,RM100000001Z4X7,

20.CHECK HARNESS AND CONNECTOR (LH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

Disconnect the A133*1 or A176*2 headlight assembly LH connector.

*1: for TFTM Made

*2: for GTMC Made

Disconnect the L17*3 or L20*4 outer rear view mirror assembly LH connector.

*3: w/ Panoramic View Monitor System

*4: w/o Panoramic View Monitor System

Disconnect the I5 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A133-2 (B) or I5-5 (LL) - Body ground*1	Always	10 kΩ or higher
A176-7 (B) or I5-5 (LL) - Body ground*2	Always	10 kΩ or higher
L17-8 (B), S1-1 (B) or I5-22 (TRNL) - Body ground*3	Always	10 kΩ or higher
L20-4 (B), S1-1 (B) or I5-22 (TRNL) - Body ground*4	Always	10 kΩ or higher

*1: for TFTM Made

*2: for GTMC Made

*3: w/ Panoramic View Monitor System

*4: w/o Panoramic View Monitor System

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202201,202307,_58,_112289,_0501082,RM100000001Z4V3,202307,999999,_58,_112289,_0501082,RM100000002BH9M,

REPAIR OR REPLACE HARNESS OR CONNECTOR

21.CONFIRM MODEL

Choose the model to be inspected.

Result:

Result	Proceed to
for Halogen Headlight	A
for LED Headlight	B

22.CHECK RH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

29.CONFIRM MODEL

22.CHECK RH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

Disconnect the A146 headlight assembly RH connector.

Operate the turn signal switch and check that the RH side turn signal lights other than the front turn signal light blink.

HINT:: If the RH side turn signal lights other than the front turn signal light blink, the front turn signal light socket is malfunctioning.

Result:

Result	Proceed to
RH side turn signal lights other than the front turn signal light blink	A
Problem symptoms do not change (All RH side turn signal lights do not blink)	B

REPLACE FRONT TURN SIGNAL LIGHT SOCKET

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for Halogen Headlight)>DISASSEMBLY202201,999999,_59,_112294,_0501097,RM100000001Z4WJ,

23.CHECK RH SIDE TURN SIGNAL LIGHTS (SIDE TURN SIGNAL LIGHT CIRCUIT)

Connect the headlight assembly RH connector.

Disconnect the K17 outer rear view mirror assembly RH connector.

Operate the turn signal switch and check that the RH side turn signal lights other than the side turn signal light blink.

HINT:: If the RH side turn signal lights other than the side turn signal light blink, a component of the outer rear view mirror assembly RH is malfunctioning.

Result:

Result	Proceed to
RH side turn signal lights other than the side turn signal light blink	A
Problem symptoms do not change (All RH side turn signal lights do not blink)	B

24.CHECK RH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY RH)

25.CHECK RH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

24.CHECK RH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY RH)

Remove the side turn signal light assembly RH from outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

Connect the wire harness connector to the outer rear view mirror assembly RH connector.

Operate the turn signal switch and check that the RH side turn signal lights other than the side turn signal light blink.

HINT:: If all RH side turn signal lights do not blink, the outer rear view mirror assembly RH is malfunctioning.

Result:

Result	Proceed to
RH side turn signal lights other than the side turn signal light blink	A
All RH side turn signal lights do not blink	B

REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL202201,202307,_59,_112292,_0501089,RM100000001Z4VT,202307,999999,_59,_112292,_0501089,RM100000002D0NL,

25.CHECK RH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

Connect the outer rear view mirror assembly RH connector.

Disconnect the S4 rear combination light assembly RH connector.

Operate the turn signal switch and check that the RH rear turn signal lights other than the rear turn signal light blink.

HINT:: If the RH side turn signal lights other than the rear turn signal light blink, the rear turn signal light socket is malfunctioning.

Result:

Result	Proceed to
RH rear turn signal lights other than the rear turn signal light blink	A
Problem symptoms do not change (All RH side turn signal lights do not blink)	B

REPLACE REAR TURN SIGNAL LIGHT SOCKET

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY>DISASSEMBLY202201,999999,_59,_112294,_0501104,RM100000001Z4X7,

26.CONFIRM MODEL

Choose the model to be inspected.

Result:

Result	Proceed to
Production Date from 2022/01 to 2023/04	A
Production Date from 2023/04	B

27.CHECK HARNESS AND CONNECTOR (RH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

28.CHECK HARNESS AND CONNECTOR (RH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

27.CHECK HARNESS AND CONNECTOR (RH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

Disconnect the A146 headlight assembly RH connector.

Disconnect the K21 outer rear view mirror assembly RH connector.

Disconnect the I5 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A146-1 (B) or I5-2 (LR) - Body ground	Always	10 kΩ or higher
K21-4 (B), S1-1 (B) or I5-6 (TRNR) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202201,202307,_58,_112289,_0501082,RM100000001Z4V3,202307,999999,_58,_112289,_0501082,RM100000002BH9M,

REPAIR OR REPLACE HARNESS OR CONNECTOR

28.CHECK HARNESS AND CONNECTOR (RH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

Disconnect the A146 headlight assembly RH connector.

Disconnect the K21 outer rear view mirror assembly RH connector.

Disconnect the I5 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A146-1 (B) or I5-6 (LR) - Body ground	Always	10 kΩ or higher
K21-4 (B), S1-1 (B) or I5-21 (TRNR) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202201,202307,_58,_112289,_0501082,RM100000001Z4V3,202307,999999,_58,_112289,_0501082,RM100000002BH9M,

REPAIR OR REPLACE HARNESS OR CONNECTOR

29.CONFIRM MODEL

Choose the model to be inspected.

Result:

Result	Proceed to
Production Date from 2022/01 to 2023/04	A
Production Date from 2023/04	B

30.CHECK RH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

35.CHECK RH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

30.CHECK RH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

Disconnect the A136*1 or A175*2 headlight assembly RH connector.

*1: for TFTM Made

*2: for GTMC Made

Operate the turn signal switch and check that the RH side turn signal lights other than the front turn signal light blink.

HINT:: If the RH side turn signal lights other than the front turn signal light blink, the headlight front turn signal LED is malfunctioning.

Result:

Result	Proceed to
RH side turn signal lights other than the front turn signal light blink	A
Problem symptoms do not change (All RH side turn signal lights do not blink)	B

REPLACE HEADLIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for LED Headlight)>REMOVAL202201,999999,_59,_112294,_0501098,RM100000001Z4WR,

31.CHECK RH SIDE TURN SIGNAL LIGHTS (SIDE TURN SIGNAL LIGHT CIRCUIT)

Connect the headlight assembly RH connector.

Disconnect the K17*1 or K21*2 outer rear view mirror assembly RH connector.

*1: w/ Panoramic View Monitor System

*2: w/o Panoramic View Monitor System

Operate the turn signal switch and check that the RH side turn signal lights other than the side turn signal light blink.

HINT:: If the RH side turn signal lights other than the side turn signal light blink, a component of the outer rear view mirror assembly RH is malfunctioning.

Result:

Result	Proceed to
RH side turn signal lights other than the side turn signal light blink	A
Problem symptoms do not change (All RH side turn signal lights do not blink)	B

32.CHECK RH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY RH)

33.CHECK RH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

32.CHECK RH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY RH)

Remove the side turn signal light assembly RH from outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

Connect the wire harness connector to the outer rear view mirror assembly RH connector.

Operate the turn signal switch and check that the RH side turn signal lights other than the side turn signal light blink.

HINT:: If all RH side turn signal lights do not blink, the outer rear view mirror assembly RH is malfunctioning.

Result:

Result	Proceed to
RH side turn signal lights other than the side turn signal light blink	A
All RH side turn signal lights do not blink	B

REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL202201,202307,_59,_112292,_0501089,RM100000001Z4VT,202307,999999,_59,_112292,_0501089,RM100000002D0NL,

33.CHECK RH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

Connect the outer rear view mirror assembly RH connector.

Disconnect the S4 rear combination light assembly RH connector.

Operate the turn signal switch and check that the RH rear turn signal lights other than the rear turn signal light blink.

HINT:: If the RH side turn signal lights other than the rear turn signal light blink, the rear turn signal light socket RH is malfunctioning.

Result:

Result	Proceed to
RH side turn signal lights other than the rear turn signal light blink	A
Problem symptoms do not change (All RH side turn signal lights do not blink)	B

REPLACE REAR TURN SIGNAL LIGHT SOCKET

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY>DISASSEMBLY202201,999999,_59,_112294,_0501104,RM100000001Z4X7,

34.CHECK HARNESS AND CONNECTOR (RH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

Disconnect the A136*1 or A175*2 headlight assembly RH connector.

*1: for TFTM Made

*2: for GTMC Made

Disconnect the K17*1 or K21*2 outer rear view mirror assembly RH connector.

*3: w/ Panoramic View Monitor System

*4: w/o Panoramic View Monitor System

Disconnect the I5 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A136-2 (B) or I5-2 (LR) - Body ground*1	Always	10 kΩ or higher
A175-7 (B) or I5-2 (LR) - Body ground*2	Always	10 kΩ or higher
K17-8 (B), S4-1 (B) or I5-6 (TRNR) - Body ground*3	Always	10 kΩ or higher
K21-4 (B), S4-1 (B) or I5-6 (TRNR) - Body ground*4	Always	10 kΩ or higher

*1: for TFTM Made

*2: for GTMC Made

*3: w/ Panoramic View Monitor System

*4: w/o Panoramic View Monitor System

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202201,202307,_58,_112289,_0501082,RM100000001Z4V3,202307,999999,_58,_112289,_0501082,RM100000002BH9M,

REPAIR OR REPLACE HARNESS OR CONNECTOR

35.CHECK RH SIDE TURN SIGNAL LIGHTS (FRONT TURN SIGNAL LIGHT CIRCUIT)

Disconnect the A136*1 or A175*2 headlight assembly RH connector.

*1: for TFTM Made

*2: for GTMC Made

Operate the turn signal switch and check that the RH side turn signal lights other than the front turn signal light blink.

HINT:: If the RH side turn signal lights other than the front turn signal light blink, the headlight front turn signal LED is malfunctioning.

Result:

Result	Proceed to
RH side turn signal lights other than the front turn signal light blink	A
Problem symptoms do not change (All RH side turn signal lights do not blink)	B

REPLACE HEADLIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY (for LED Headlight)>REMOVAL202201,999999,_59,_112294,_0501098,RM100000001Z4WR,

36.CHECK RH SIDE TURN SIGNAL LIGHTS (SIDE TURN SIGNAL LIGHT CIRCUIT)

Connect the headlight assembly RH connector.

Disconnect the K17*1 or K21*2 outer rear view mirror assembly RH connector.

*1: w/ Panoramic View Monitor System

*2: w/o Panoramic View Monitor System

Operate the turn signal switch and check that the RH side turn signal lights other than the side turn signal light blink.

HINT:: If the RH side turn signal lights other than the side turn signal light blink, a component of the outer rear view mirror assembly RH is malfunctioning.

Result:

Result	Proceed to
RH side turn signal lights other than the side turn signal light blink	A
Problem symptoms do not change (All RH side turn signal lights do not blink)	B

37.CHECK RH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY RH)

38.CHECK RH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

37.CHECK RH SIDE TURN SIGNAL LIGHTS (OUTER REAR VIEW MIRROR ASSEMBLY RH)

Remove the side turn signal light assembly RH from outer rear view mirror assembly RH.

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

Connect the wire harness connector to the outer rear view mirror assembly RH connector.

Operate the turn signal switch and check that the RH side turn signal lights other than the side turn signal light blink.

HINT:: If all RH side turn signal lights do not blink, the outer rear view mirror assembly RH is malfunctioning.

Result:

Result	Proceed to
RH side turn signal lights other than the side turn signal light blink	A
All RH side turn signal lights do not blink	B

REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY RH

Click hereVehicle Exterior>LIGHTING (EXT)>SIDE TURN SIGNAL LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501103,RM100000001Z4X3,

REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH

Click hereVehicle Exterior>MIRROR (EXT)>OUTER REAR VIEW MIRROR>REMOVAL202201,202307,_59,_112292,_0501089,RM100000001Z4VT,202307,999999,_59,_112292,_0501089,RM100000002D0NL,

38.CHECK RH SIDE TURN SIGNAL LIGHTS (REAR TURN SIGNAL LIGHT CIRCUIT)

Connect the outer rear view mirror assembly RH connector.

Disconnect the S4 rear combination light assembly RH connector.

Operate the turn signal switch and check that the RH rear turn signal lights other than the rear turn signal light blink.

HINT:: If the RH side turn signal lights other than the rear turn signal light blink, the rear turn signal light socket RH is malfunctioning.

Result:

Result	Proceed to
RH side turn signal lights other than the rear turn signal light blink	A
Problem symptoms do not change (All RH side turn signal lights do not blink)	B

REPLACE REAR TURN SIGNAL LIGHT SOCKET

Click hereVehicle Exterior>LIGHTING (EXT)>REAR COMBINATION LIGHT ASSEMBLY>DISASSEMBLY202201,999999,_59,_112294,_0501104,RM100000001Z4X7,

39.CHECK HARNESS AND CONNECTOR (RH SIDE EACH PARTS - COMBINATION METER ASSEMBLY)

Disconnect the A136*1 or A175*2 headlight assembly RH connector.

*1: for TFTM Made

*2: for GTMC Made

Disconnect the K17*1 or K21*2 outer rear view mirror assembly RH connector.

*3: w/ Panoramic View Monitor System

*4: w/o Panoramic View Monitor System

Disconnect the I5 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A136-2 (B) or I5-6 (LR) - Body ground*1	Always	10 kΩ or higher
A175-7 (B) or I5-6 (LR) - Body ground*2	Always	10 kΩ or higher
K17-8 (B), S4-1 (B) or I5-21 (TRNR) - Body ground*3	Always	10 kΩ or higher
K21-4 (B), S4-1 (B) or I5-21 (TRNR) - Body ground*4	Always	10 kΩ or higher

*1: for TFTM Made

*2: for GTMC Made

*3: w/ Panoramic View Monitor System

*4: w/o Panoramic View Monitor System

Result:

Proceed to
OK
NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL202201,202307,_58,_112289,_0501082,RM100000001Z4V3,202307,999999,_58,_112289,_0501082,RM100000002BH9M,

REPAIR OR REPLACE HARNESS OR CONNECTOR
